Dynamic Radar Cruise Control And Enfine Control (3UZ-FE) And Electronically Controlled Transmission and A/T Indicator (3UZ-FE)

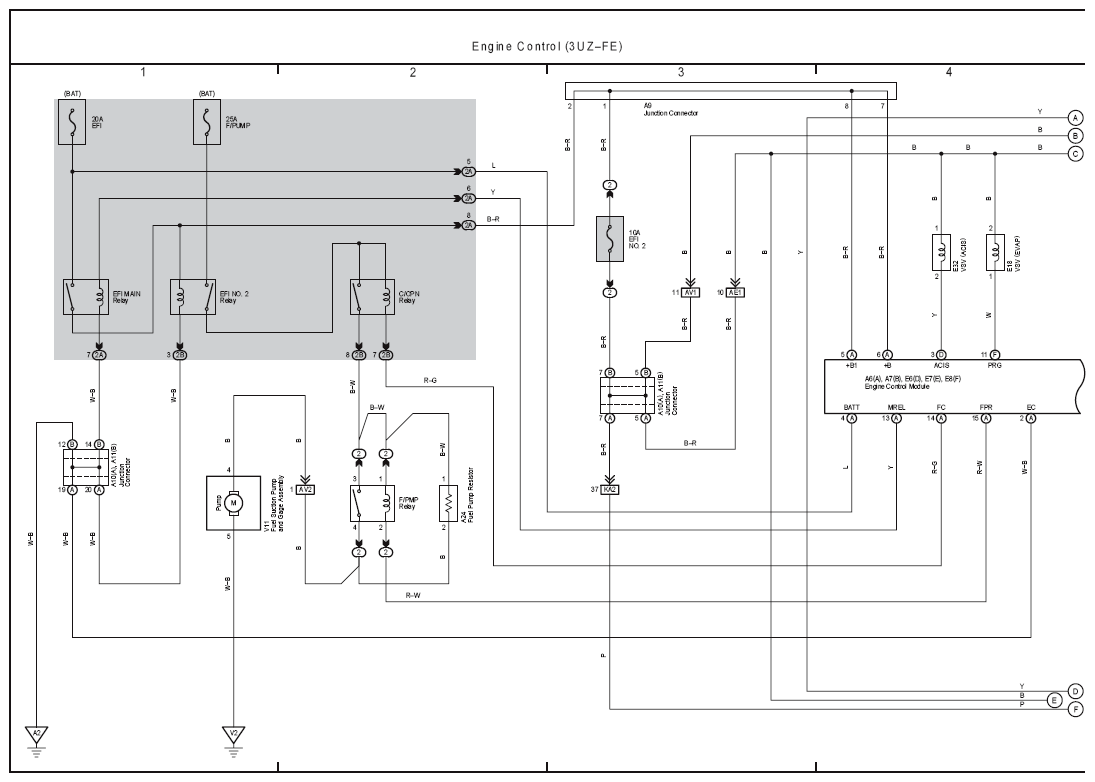

Fig 1: Engine Control (3UZ-FE) Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

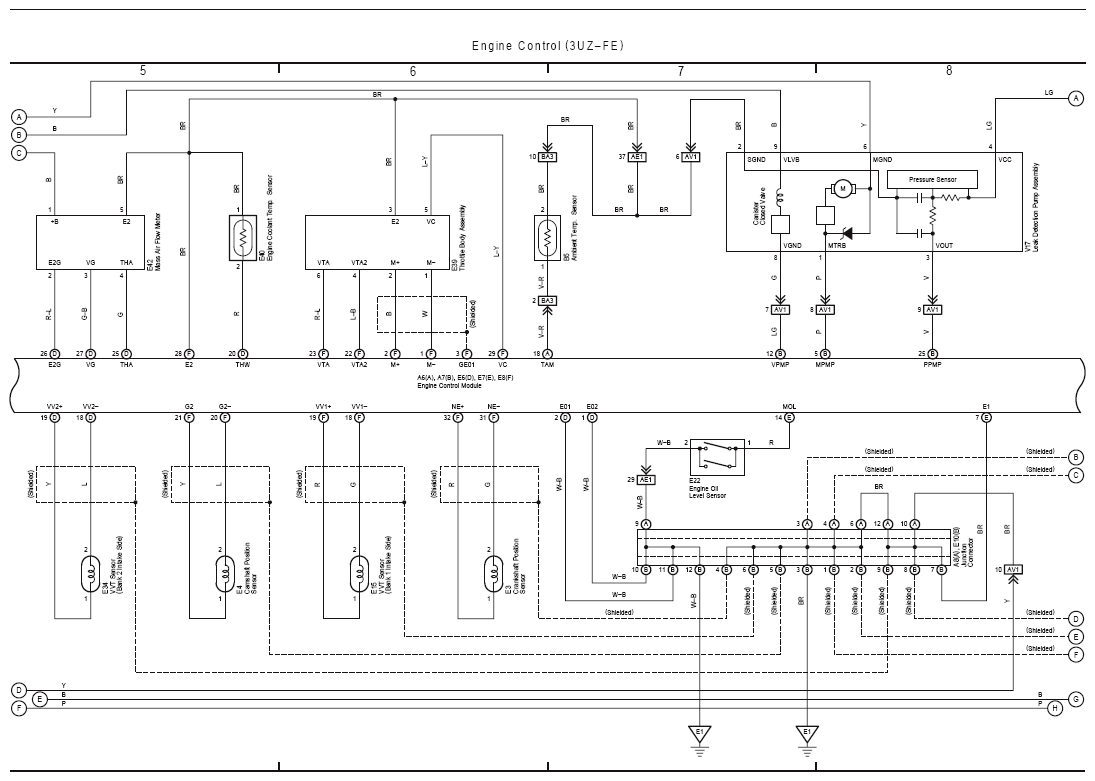

Fig 2: Engine Control (3UZ-FE) Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

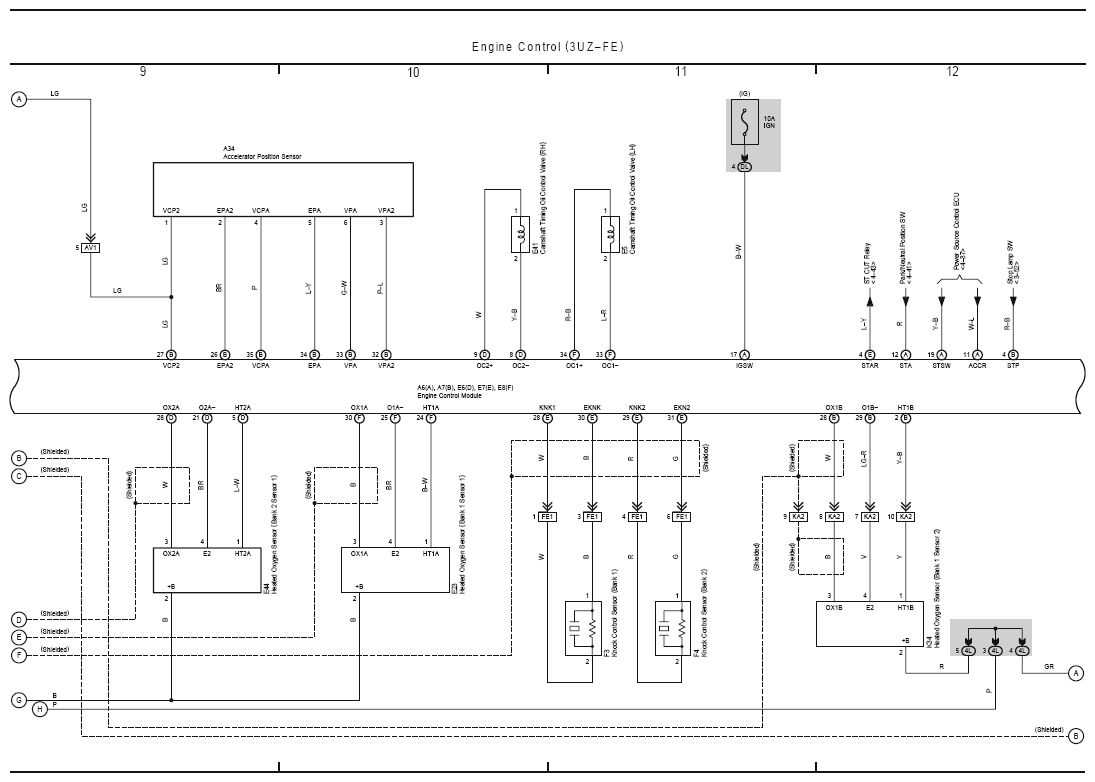

Fig 3: Engine Control (3UZ-FE) Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

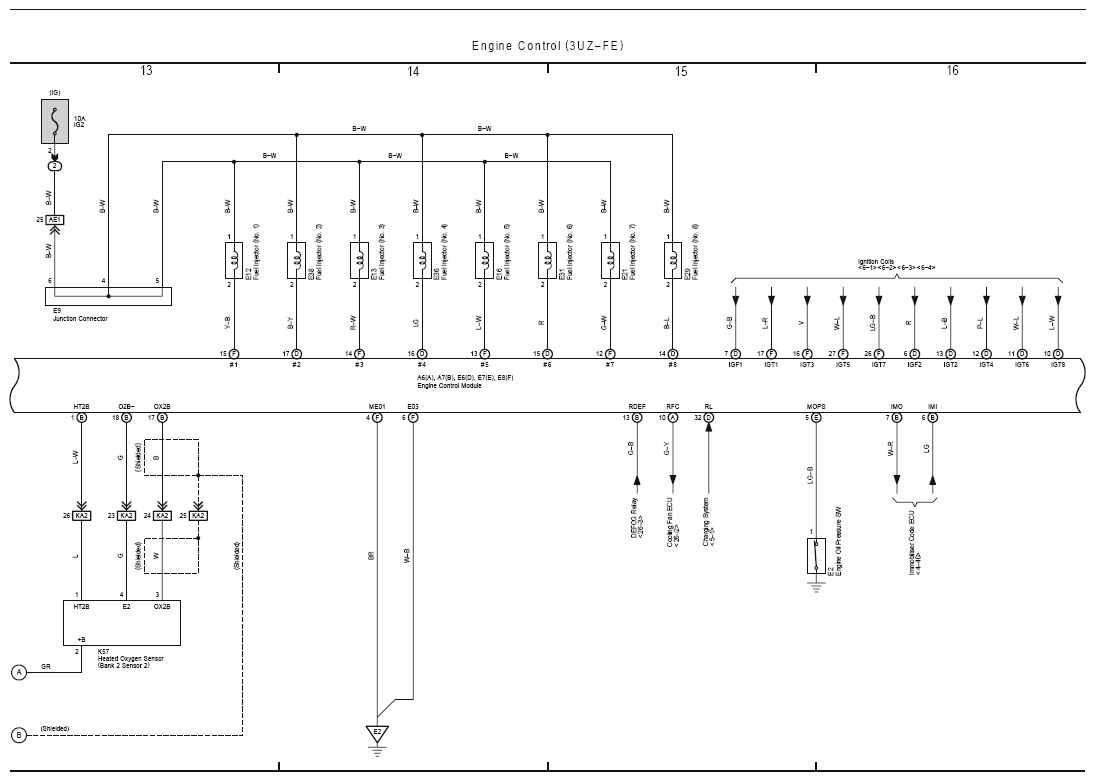

Fig 4: Engine Control (3UZ-FE) Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

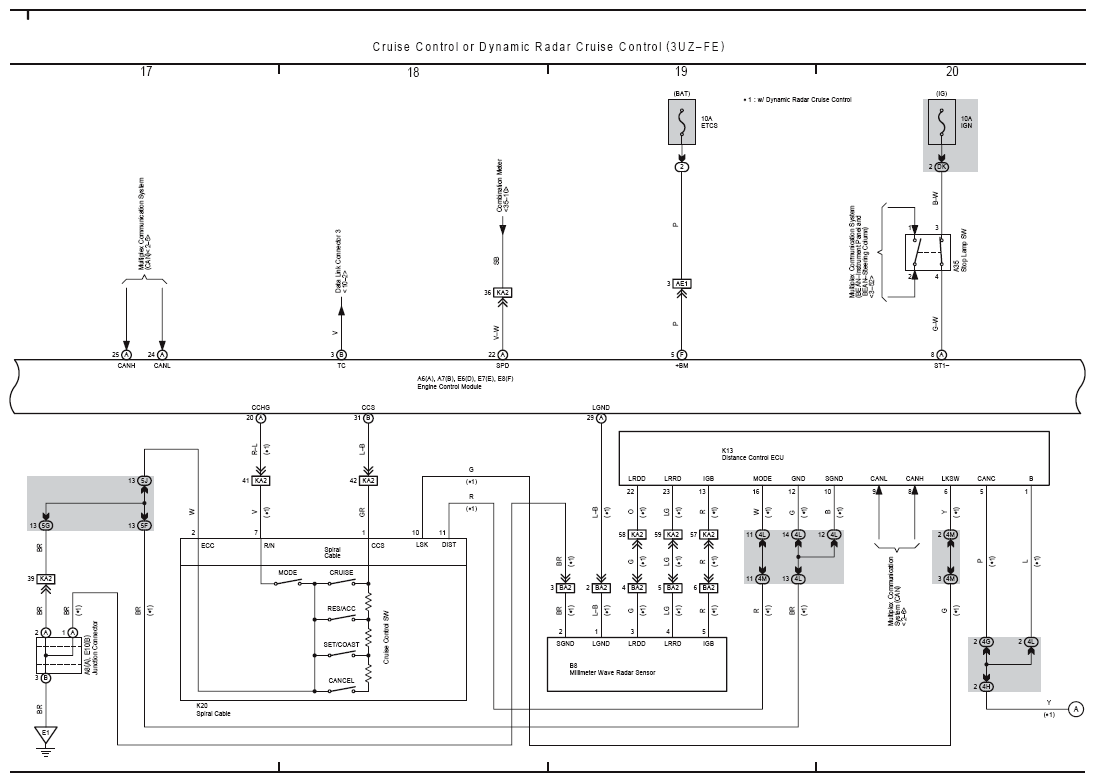

Fig 5: Cruise Control Or Dynamic Radar Cruise Control (3UZ-FE) Wiring Diagram

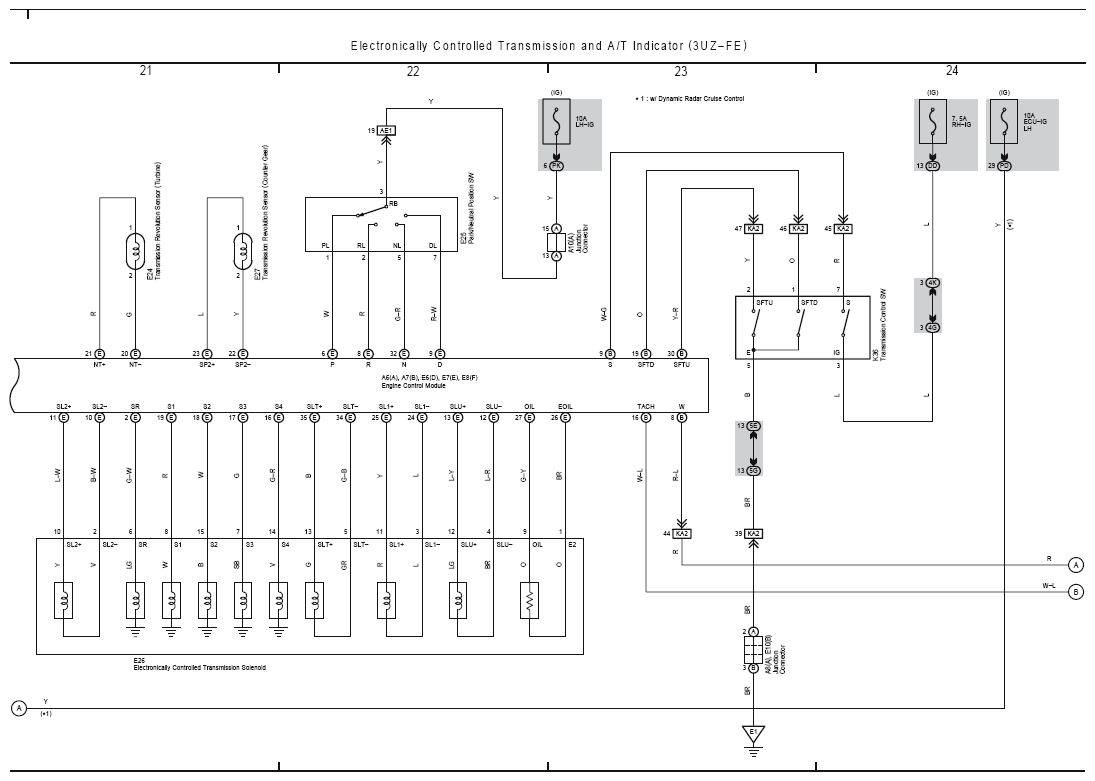

Fig 6: Electronically Controlled Transmission And A/T Indicator (3UZ-FE) Wiring Diagram (1 Of 2)

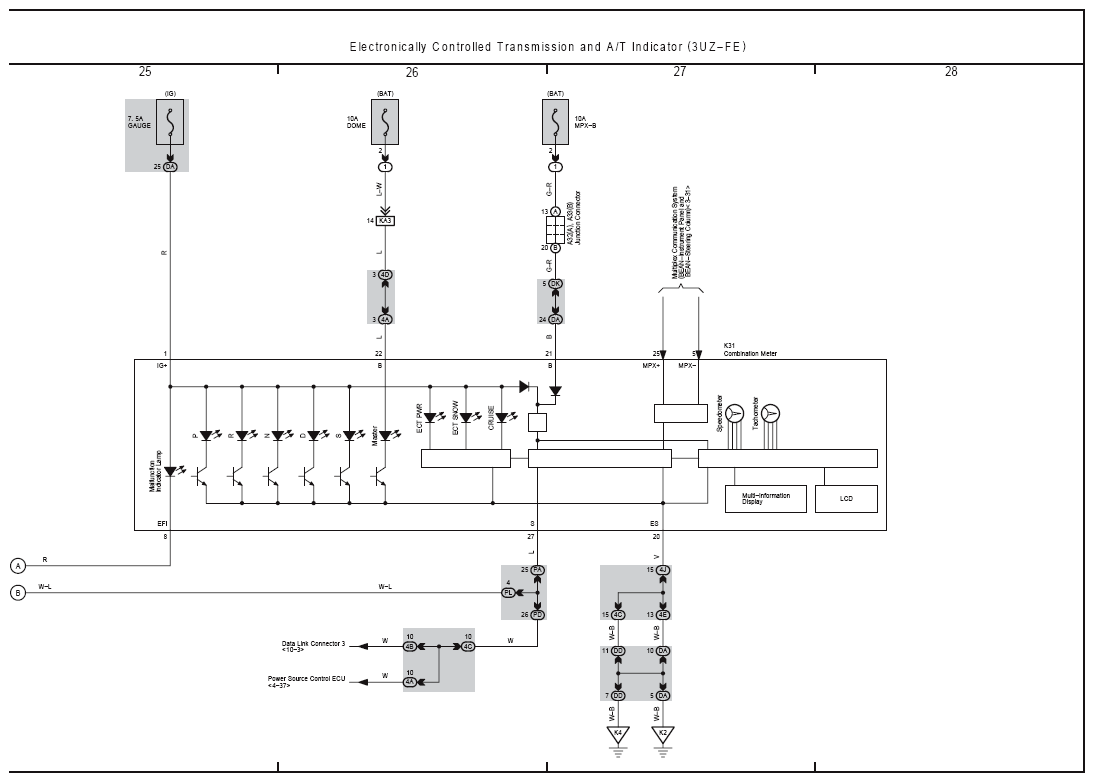

Fig 7: Electronically Controlled Transmission And A/T Indicator (3UZ-FE) Wiring Diagram (2 Of 2)
