Cooling Fan, Rear Window Defogger, Sliding Roof And Shift Lock

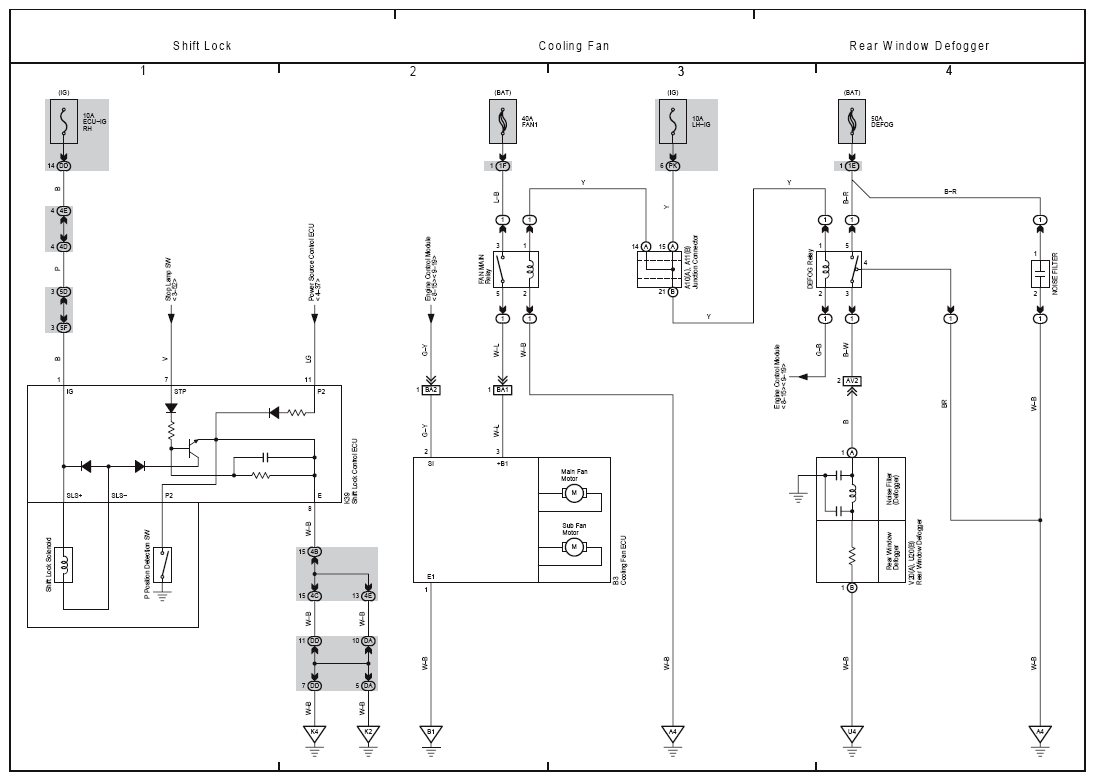

Fig 1: Cooling Fan & Rear Window Defogger, Sliding Roof And Shift Lock Wiring Diagram

G08911249

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
