Climate Control Seat

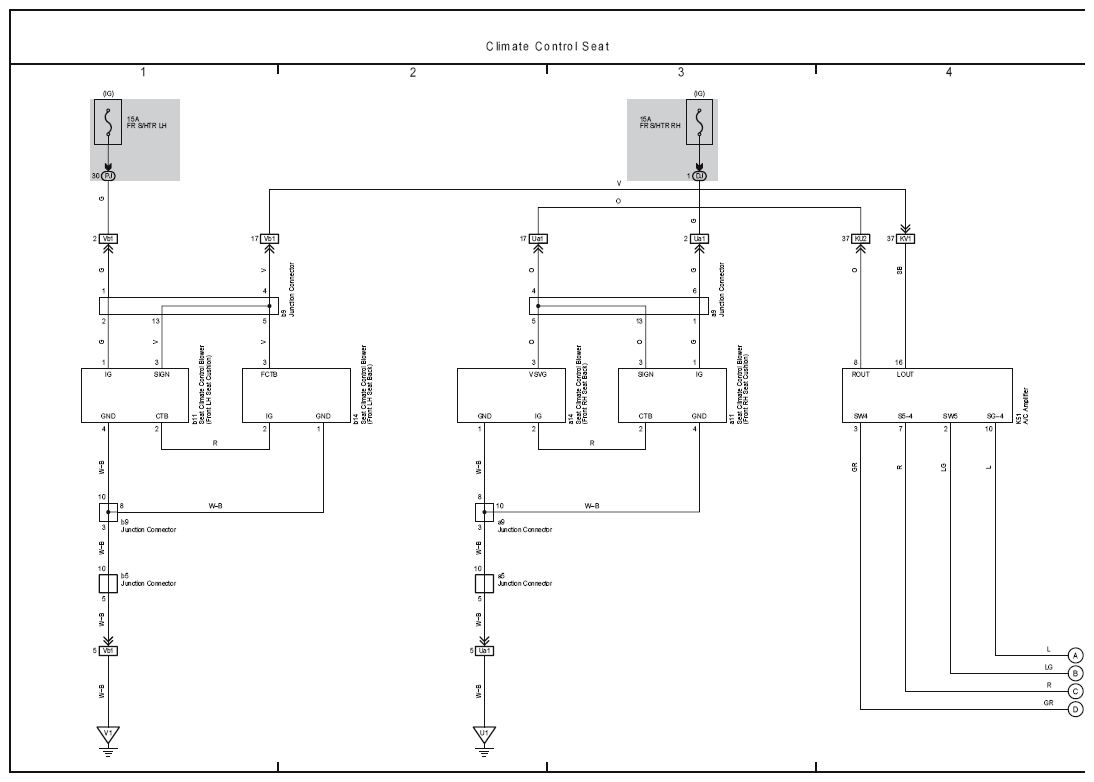

Fig 1: Climate Control Seat Wiring Diagram (1 Of 2)
G08911254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

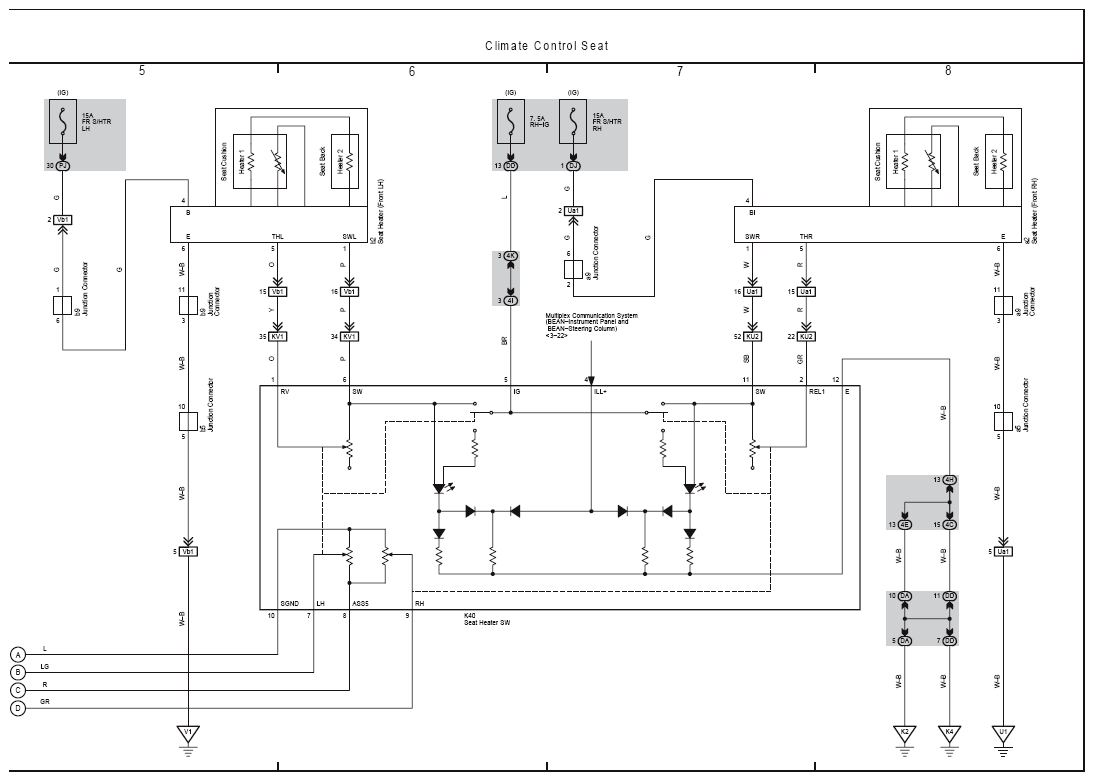

Fig 2: Climate Control Seat Wiring Diagram (2 Of 2)
G08911255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
