Air Conditioning

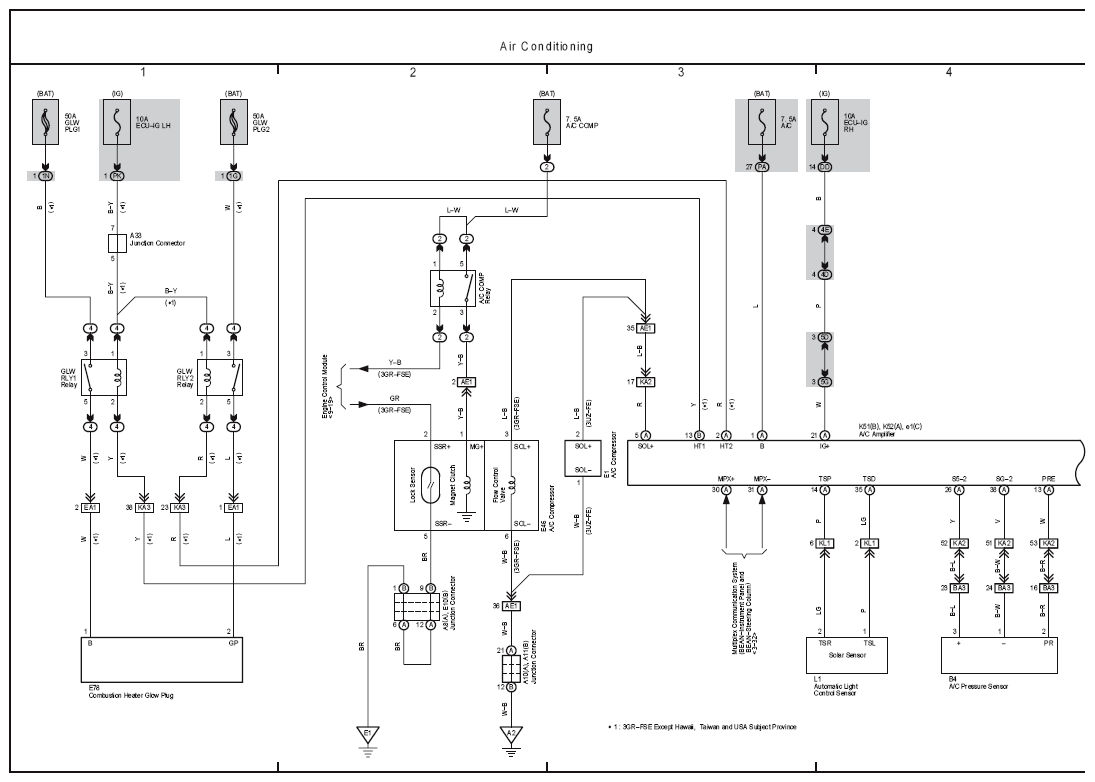

Fig 1: Air Conditioning Wiring Diagram (1 Of 3)
G08911266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

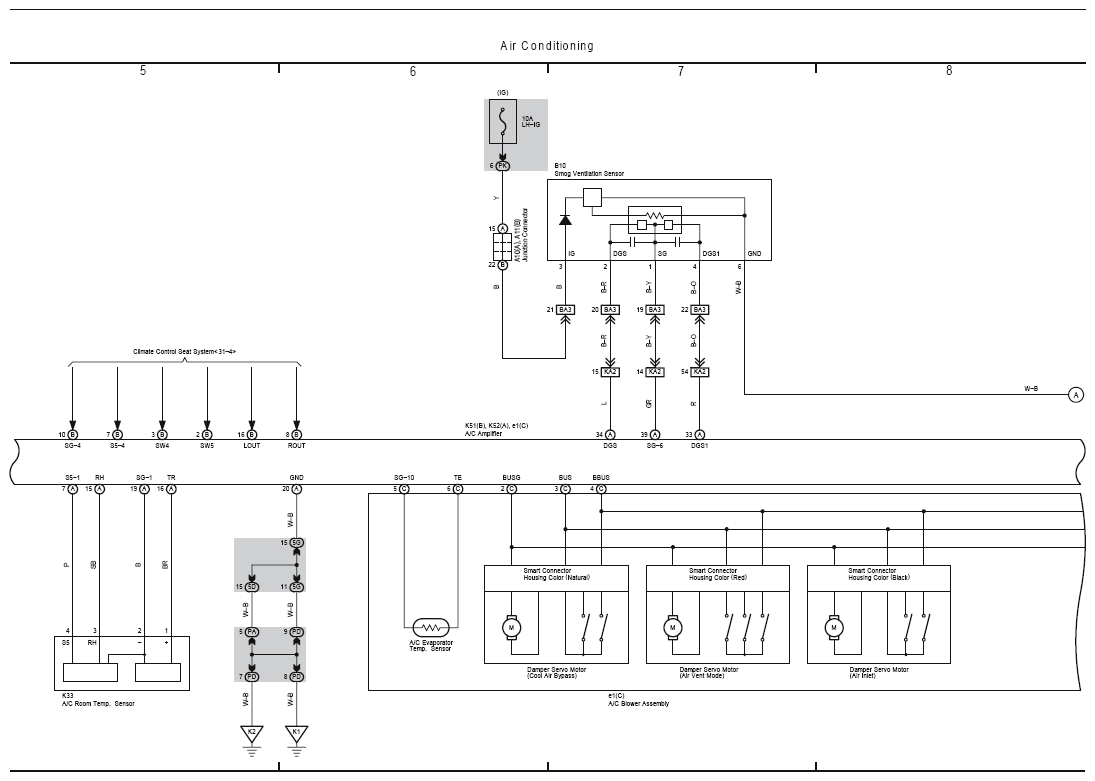

Fig 2: Air Conditioning Wiring Diagram (2 Of 3)
G08911267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

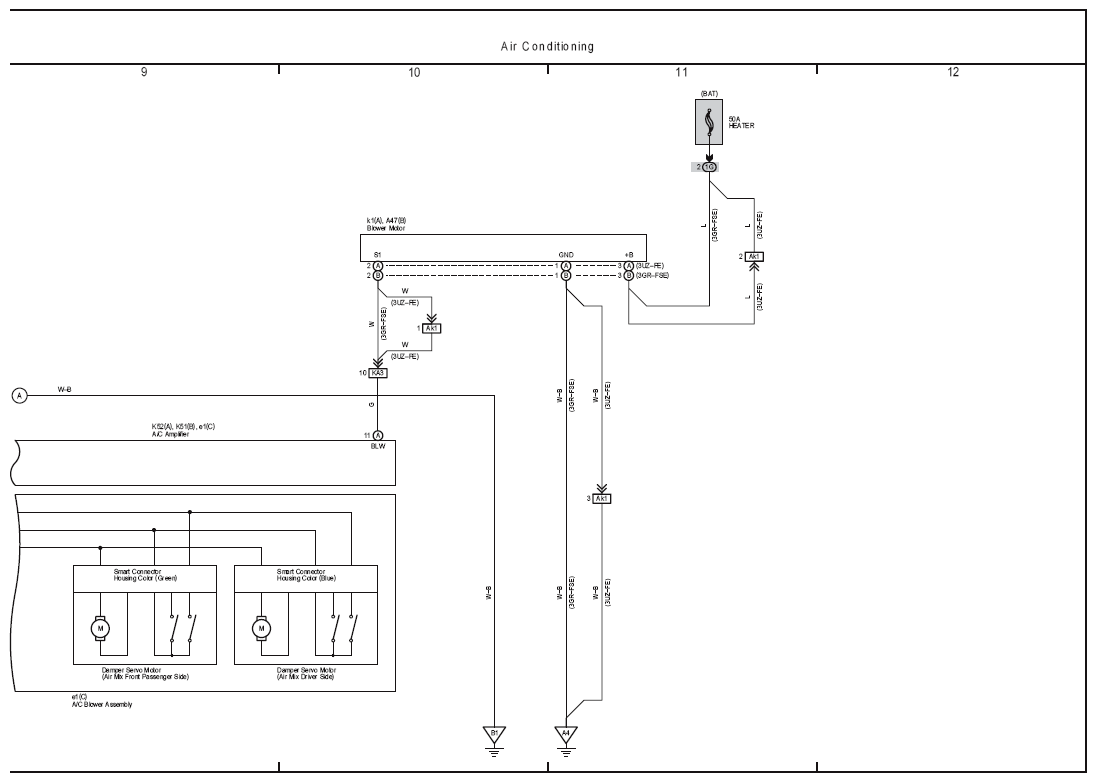

Fig 3: Air Conditioning Wiring Diagram (3 Of 3)
G08911268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
