Data List / Active Test

  1. DATA LIST
    1. Using the intelligent tester's Data List allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.
      1. Warm up the engine.
      2. Turn the engine switch off.
      3. Connect the intelligent tester to the DLC3.
      4. Turn the engine switch on (IG).
      5. Operate the intelligent tester according to the display and select "Data List".

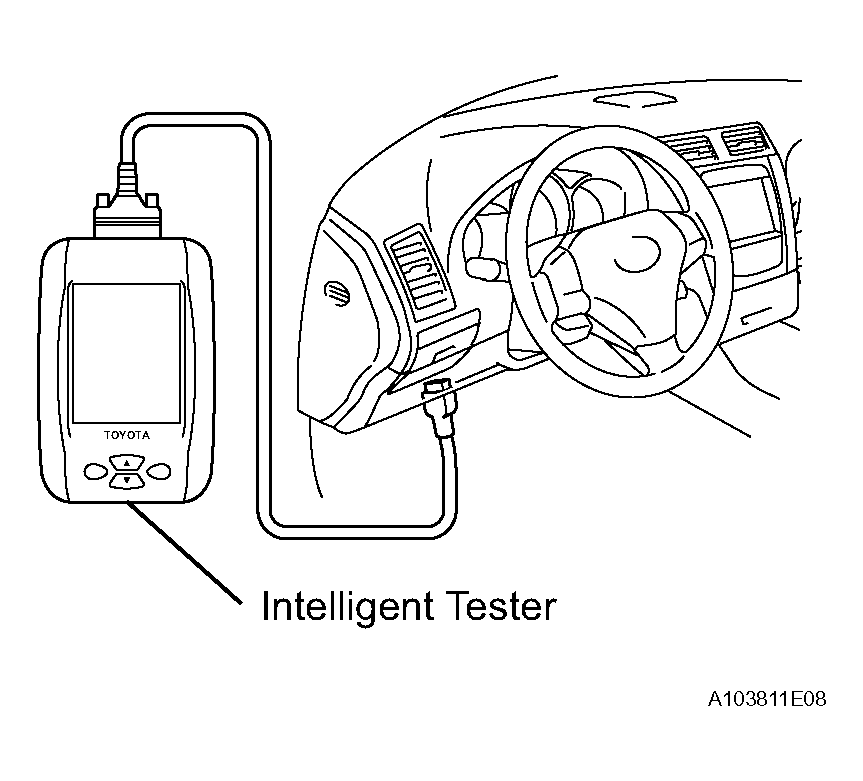

        Fig 1: Identifying Intelligent Tester To DLC3
        G04022051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Combination meter:

        COMBINATION METER SPECIFICATION

        Item Measurement Item/ Range (Display) Normal Condition Diagnostic Note
        SPEED METER Vehicle speed / Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph) Almost same as actual vehicle speed (When driving) -
        TACHO METER Engine speed / Min.: 0 RPM, Max.: 12,750 RPM Almost same as actual engine speed (When engine is running) -
        FUEL GAUGE Fuel input signal Min.: 0, Max.: 255 Fuel gauge indicates (F): 47
        Fuel gauge indicates (3/4): 92
        Fuel gauge indicates (1/2): 148
        Fuel gauge indicates (1/4): 187
        Fuel gauge indicates (E): 205        		 -
        ECD Sunlight Sensor ECD sunlight sensor input value/ Min.: 0, Max.: 255 50 to 195 -
        Permeation Reaction ECD sunlight level input value/ Min.: 0, Max.: 9 ECD permeation level Min.: 3, Max.: 0 -
        KEY REMND VOLUM Key remind volume/ LARGE, MEDIUM or SMALL - -
        KEY REMND SOUND Key remind sound/ FAST, NORMAL, SLOW - -

        ECM (3GR-FSE):

        COMBINATION METER - ECM (3GR-FSE)

        Item Measurement Item/ Range (Display) Normal Condition Diagnostic Note
        ENGINE SPD Engine speed/ Min.: 0 RPM, Max.: 16,383 RPM Almost same as actual engine speed (When engine is running) -
        COOLANT TEMP Engine coolant temperature / Min.: -40°C, Max.: 140°C After warming up: 80 to 105°C (176 to 221°F) If value is -40°C (-40°F), sensor circuit is open.
        If value is 140°C (284°F), sensor circuit is shorted.

        ECM (3UZ-FE):

        COMBINATION METER - ECM (3UZ-FE)

        Item Measurement Item/ Range (Display) Normal Condition Diagnostic Note
        ENGINE SPD Engine speed/ Min.: 0 RPM, Max.: 16,383 RPM Almost same as actual engine speed (When engine is running) -
        COOLANT TEMP Engine coolant temperature / Min.: -40°C, Max.: 140°C After warming up: 75 to 95°C (167 to 203°F) If value is -40°C (-40°F), sensor circuit is open.
        If value is 140°C (284°F), sensor circuit is shorted.

        Integration control and panel assembly:

        COMBINATION METER - INTEGRATION CONTROL AND PANEL ASSEMBLY

        Item Measurement Item/ Range (Display) Normal Condition Diagnostic Note
        ODO/TRIP SWITCH ODO/TRIP switch/ ON or OFF ON : Switch is pushed
        OFF: Switch is not pushed        		 -
        TRIP RESET SWITCH Trip reset switch/ ON or OFF ON : Switch is pushed
        OFF: Switch is not pushed        		 -
        RHEOSTAT UP SWITCH Rheostat up switch/ ON or OFF ON : Switch is pushed
        OFF: Switch is not pushed        		 -
        RHEOSTAT DOWN SWITCH Rheostat down switch/ ON or OFF ON : Switch is pushed
        OFF: Switch is not pushed        		 -
  2. ACTIVE TEST
    1. Performing the intelligent tester's Active Test allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the Active Test early in troubleshooting is one way to save time. The Data List can be displayed during the Active Test.
      1. Connect the intelligent tester to the DLC3.
      2. Turn the engine switch on (IG).
      3. From the display on tester, perform the "Active Test".

        Combination meter:

        COMBINATION METER SPECIFICATION

        Item Test Details Diagnostic Note
        SPEED METER 0 / 40(24) / 80(48) / 120(72) / 160(96) / 200(120) / 240(144)km/h (mph) -
        TACHOMETER 0rpm / 1,000 RPM / 2,000 RPM / 3,000 RPM / 4,000 RPM / 5,000 RPM / 6,000 RPM / 7,000 RPM -
        FUEL GAUGE EMPTY, 1/2, FULL -
        COOLANT TEMP LOW / NORMAL / HIGH -
        LOW FUEL WARN Indicat. Light FUEL (OFF/ON) Confirm that the vehicle is stopped and engine idling
        OPEN DOOR WARN Indicat. Light DOOR (OFF/ON) Confirm that the vehicle is stopped and engine idling
        P-BELT REMIND Indicat. Light P-SEAT BELT (OFF/ON) Confirm that the vehicle is stopped and engine idling
        D-BELT REMIND Indicat. Light D-SEAT BELT (OFF/ON) Confirm that the vehicle is stopped and engine idling
        DISCHARGE WARN Indicat. Light CHARGE (OFF/ON) Confirm that the vehicle is stopped and engine idling
        BRAKE WARN Indicat. Light BRAKE (OFF/ON) Confirm that the vehicle is stopped and engine idling
        TAILLIGHT INDIC Indicat. Light TAIL (OFF/ON) Confirm that the vehicle is stopped and engine idling
        CRUISE INDIC Indicat. Light CRUISE (OFF/ON) Confirm that the vehicle is stopped and engine idling
        ECT SNOW INDIC Indicat. Light ECR SNOW (OFF/ON) Confirm that the vehicle is stopped and engine idling
        ECT PWR INDIC Indicat. Light ECT PWR (OFF/ON) Confirm that the vehicle is stopped and engine idling
        VSC WARN Indicat. Light VSC (OFF/ON) Confirm that the vehicle is stopped and engine idling
        SRS WARN Indicat. Light AIRBAG (OFF/ON) Confirm that the vehicle is stopped and engine idling
        HIGH BEAM INDIC Indicat. Light BEAM (OFF/ON) Confirm that the vehicle is stopped and engine idling
        ABS WARN Indicat. Light ABS (OFF/ON) Confirm that the vehicle is stopped and engine idling
        SLIP INDIC Indicat. Light SLIP (OFF/ON) Confirm that the vehicle is stopped and engine idling
        Fr FOG INDIC Indicat. Light Fr FOG (OFF/ON) Confirm that the vehicle is stopped and engine idling
        TIRE PRESS WARN Indicat. Light TIRE PRESS (OFF/ON) Confirm that the vehicle is stopped and engine idling
        KEY REMND BUZZER Key reminder buzzer (OFF/ON) Confirm that the vehicle is stopped and engine idling
        LGT REMND BUZZER Light reminder buzzer (OFF/ON) Confirm that the vehicle is stopped and engine idling
        SEAT BELT BUZZER Seat belt buzzer (OFF/ON) Confirm that the vehicle is stopped and engine idling
        S SHFT RJCT BUZZER Sports shift reject buzzer (OFF/ON) Confirm that the vehicle is stopped and engine idling
        WARNING BUZZER Warning buzzer (OFF/ON) Confirm that the vehicle is stopped and engine idling
        A/T SHIFT LCD A/T shift LCD (OFF/ON) Confirm that the vehicle is stopped and engine idling
        AFS INDICATOR Indicat. Light AFS (OFF/ON) Confirm that the vehicle is stopped and engine idling
        CSONAR LCD DISP Indicat. clearance sonar (OFF/ON) Confirm that the vehicle is stopped and engine idling
        TEMS is j INDIC Indicat. tems sports (OFF/ON) Confirm that the vehicle is stopped and engine idling
        EPS INDIC Indicat. Emps (OFF/ON) Confirm that the vehicle is stopped and engine idling
        ECB INDIC Indicat. ECB (OFF/ON) Confirm that the vehicle is stopped and engine idling
        MST WARN INDICATOR Master warning (OFF/ON) Confirm that the vehicle is stopped and engine idling
        MULTI - DISP Multi-display (OFF/ON) Confirm that the vehicle is stopped and engine idling
        ECD ON INDIC Indicat. ECD ON (OFF/ON) Confirm that the vehicle is stopped and engine idling
