3GR-FSE Rear Propeller Shaft Assembly: Removal

REMOVE EXHAUST PIPE ASSEMBLY FRONT (See REMOVAL )
REMOVE FRONT FLOOR HEAT INSULATOR NO.1
1. Remove the 4 nuts, grommet and front floor heat insulator No.1.
REMOVE REAR PROPELLER SHAFT ASSEMBLY
1. Put matchmarks on both flanges.
2. Remove the 4 nuts, bolts and washers.
  HINT:

  If the flange connection is hard to separate, temporarily tighten one nut only and evenly tap the flange with a brass bar and hammer to separate the propeller shaft assembly from the differential companion flange.

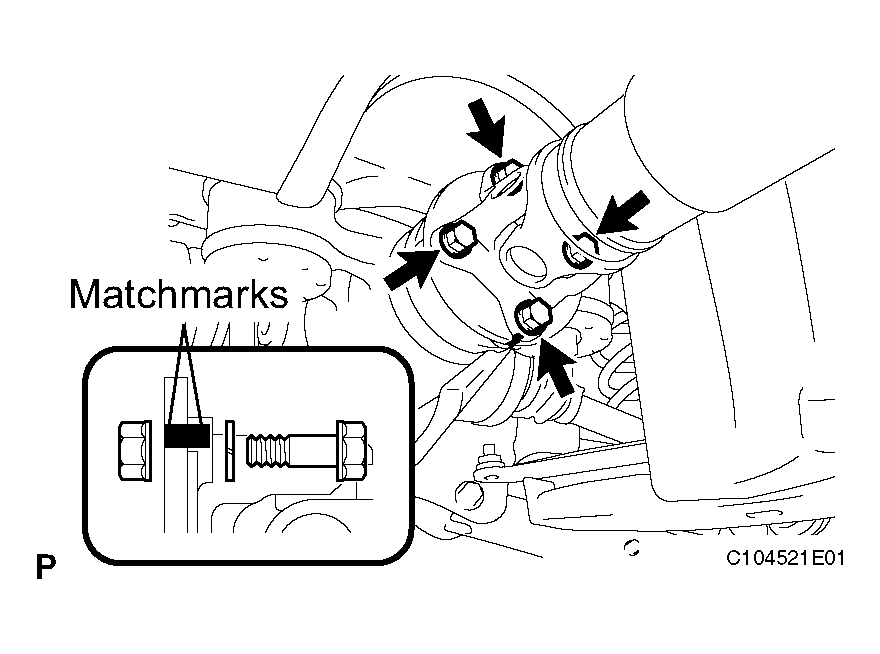

  Fig 1: Identifying Matchmarks And Flange Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts, 2 center support bearing washers and center support bearing.

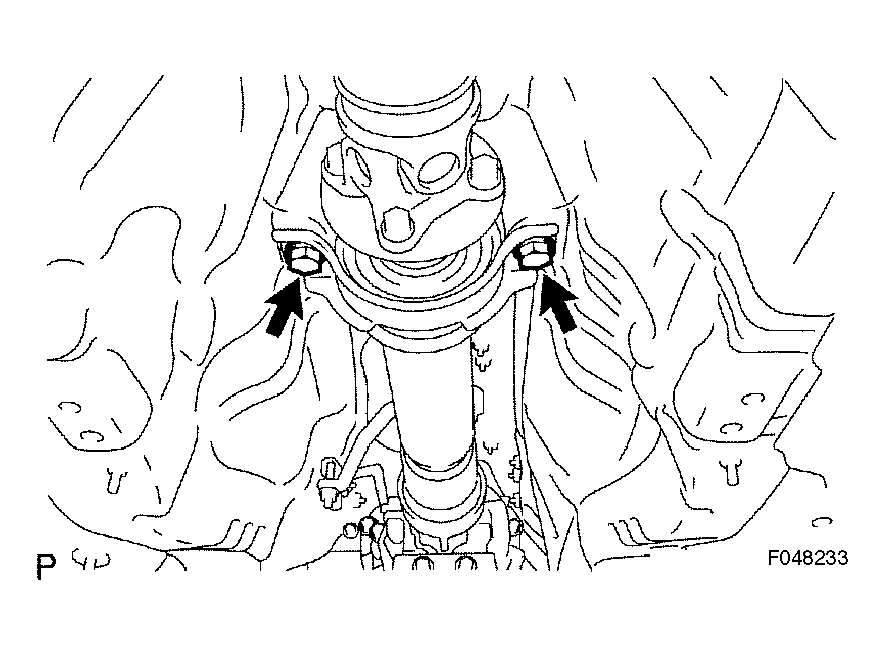

  Fig 2: Locating Center, Center Support Bearing Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Insert SST in the transmission to prevent oil leakage.
  SST 09325-40010

  NOTE: Be careful not to damage the oil seal.

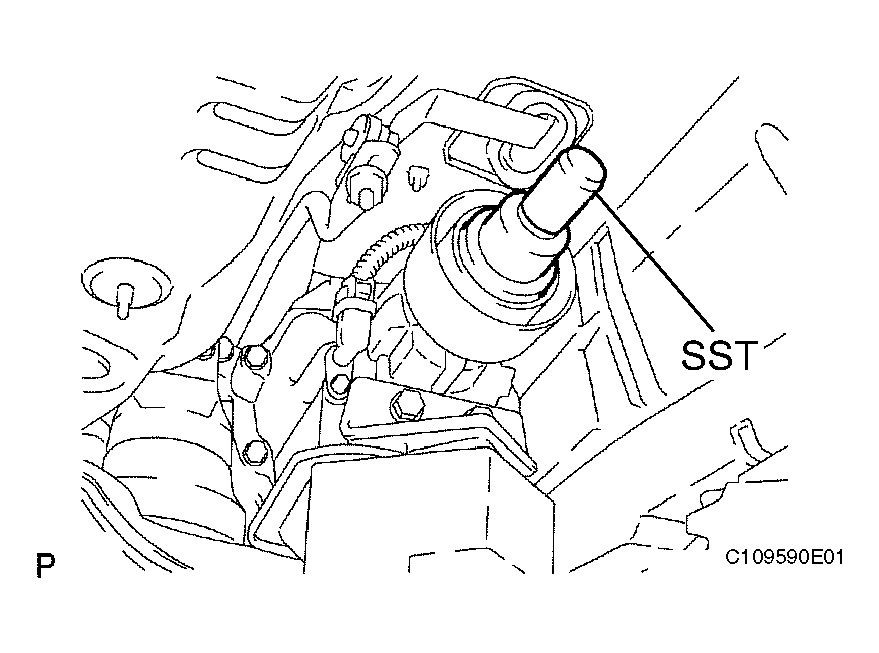

  Fig 3: Inserting SST In Transmission To Prevent Oil Leakage
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
