Rear Brake Pad, Brake Caliper & Brake Rotor: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the side.

1. REMOVE REAR WHEEL
2. DRAIN BRAKE FLUID
   NOTE: Wash brake fluid off immediately if it adheres to any painted surface.
3. REMOVE REAR DISC BRAKE PAD KIT

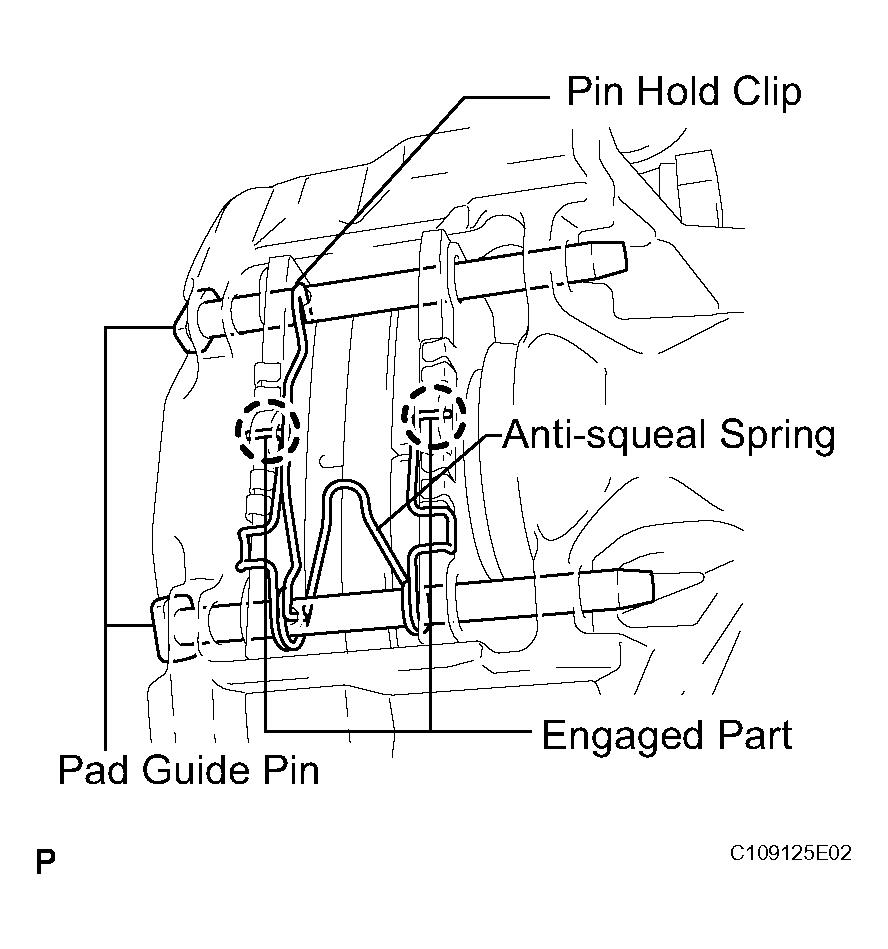

   1. Remove the pin hold clip and disengage the engaged parts of anti-squeal spring.
   2. Remove the 2 pad guide pins and anti-squeal spring.
   3. Remove the 2 brake pads with the anti-squeal shims.
4. REMOVE ANTI-SQUEAL SHIM KIT REAR
   1. Remove the 4 anti-squeal shims from each pad.
      Fig 1: Identifying Anti-Squeal Shims From Pad

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. DISCONNECT REAR LH FLEXIBLE HOSE
   1. Remove the union bolt and gasket from the disc brake cylinder assembly rear, then disconnect the flexible hose.
      Fig 2: Locating Flexible Hose Union Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE REAR DISC BRAKE CYLINDER SUPPORT NO.1 PIN
   1. Remove the cylinder support pin No.1 and tilt the disc brake cylinder assembly toward the rear of the vehicle.
      Fig 3: Locating No. 1 Rear Disc Brake Cylinder Support Pin

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE DISC BRAKE CYLINDER ASSEMBLY REAR LH
   1. Remove the 2 bolts and cylinder assembly rear together with the caliper support bracket.
   2. Remove the 2 caliper plate No.1 from the caliper support bracket.
