Rear Brake Pad, Brake Caliper & Brake Rotor: Installation

INSTALL DISC BRAKE CYLINDER ASSEMBLY REAR LH
1. Install 2 new caliper plate No.1 to the caliper support bracket.
2. Install the cylinder assembly rear together with the caliper support bracket with the 2 bolts.
  Torque: 54 N*m (551 kgf*cm, 40 ft.*lbf)

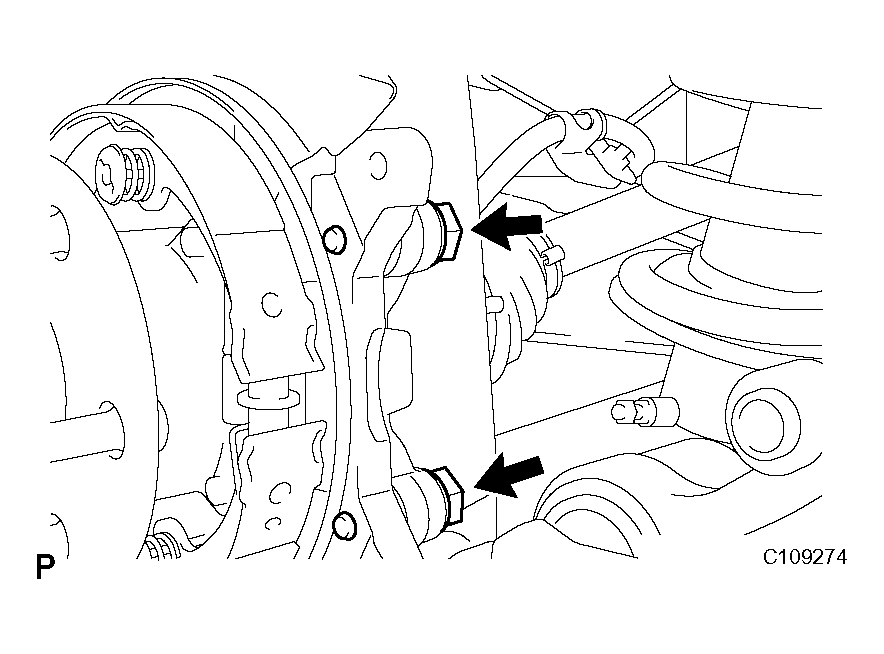

  Fig 1: Identifying Cylinder Assembly Rear Together With Caliper Support Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DISC BRAKE CYLINDER SUPPORT PIN NO.1
1. Install the cylinder assembly rear with the cylinder slide pin.
  Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf)

  Fig 2: Locating No. 1 Rear Disc Brake Cylinder Support Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ANTI-SQUEAL SHIM KIT REAR (for 3UZ-FE)
1. Apply disc brake grease to both sides of the 2 anti squeal shims.
2. Install the 4 anti-squeal shims to each of the 2 brake pads.
  NOTE:
  - When replacing worn pads, the anti-squeal shims must be replaced together with the pads.
  - Install the anti-squeal shims in the correct positions and directions.

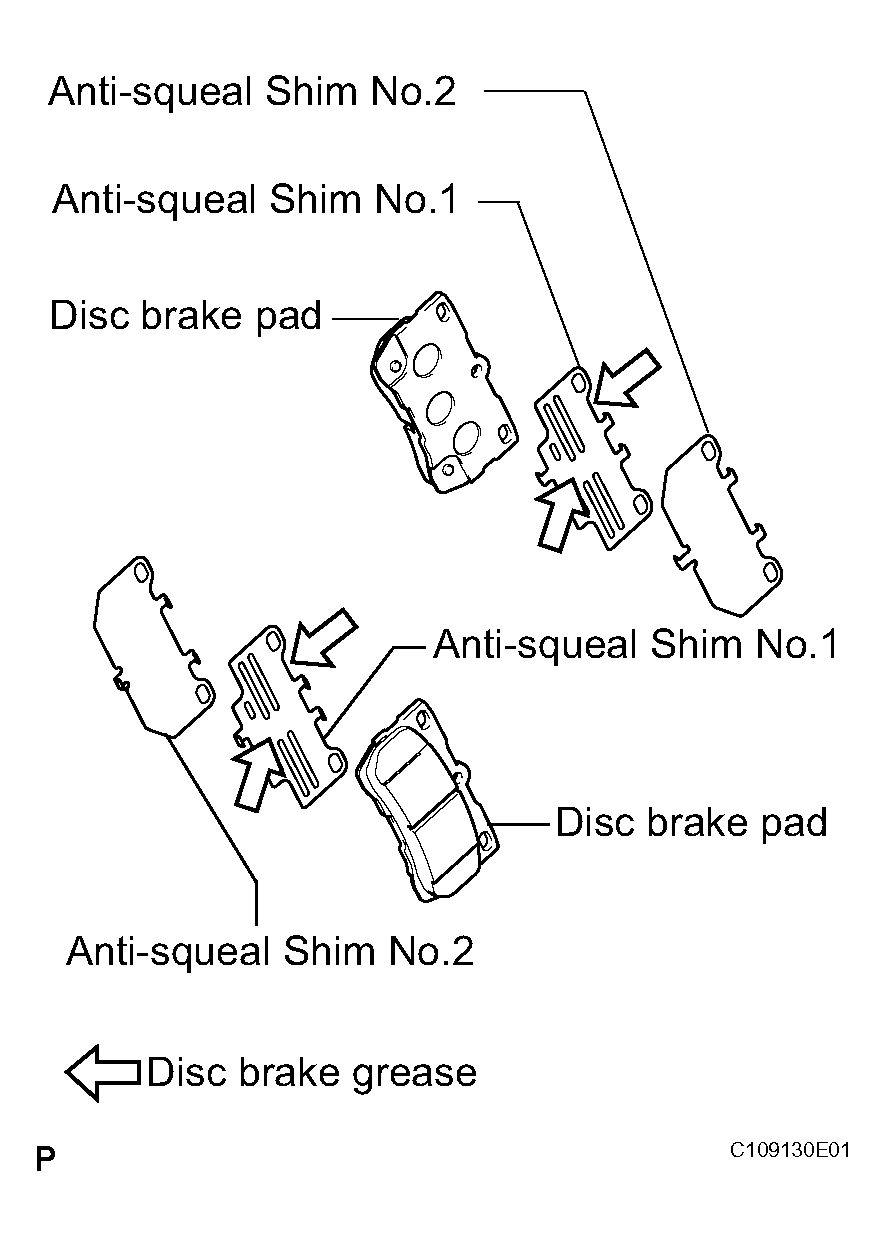

    Fig 3: Identifying Anti-Squeal Shims In Correct Positions And Directions
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ANTI-SQUEAL SHIM KIT REAR (for 3GRFSE)
1. Apply disc brake grease to both sides of the 2 anti squeal shim No.1.
2. Install the 4 anti-squeal shims to each of the 2 brake pads.
  NOTE:
  - When replacing worn pads, the anti-squeal shims must be replaced together with the pads.
  - Install the anti-squeal shims in the correct positions and directions.

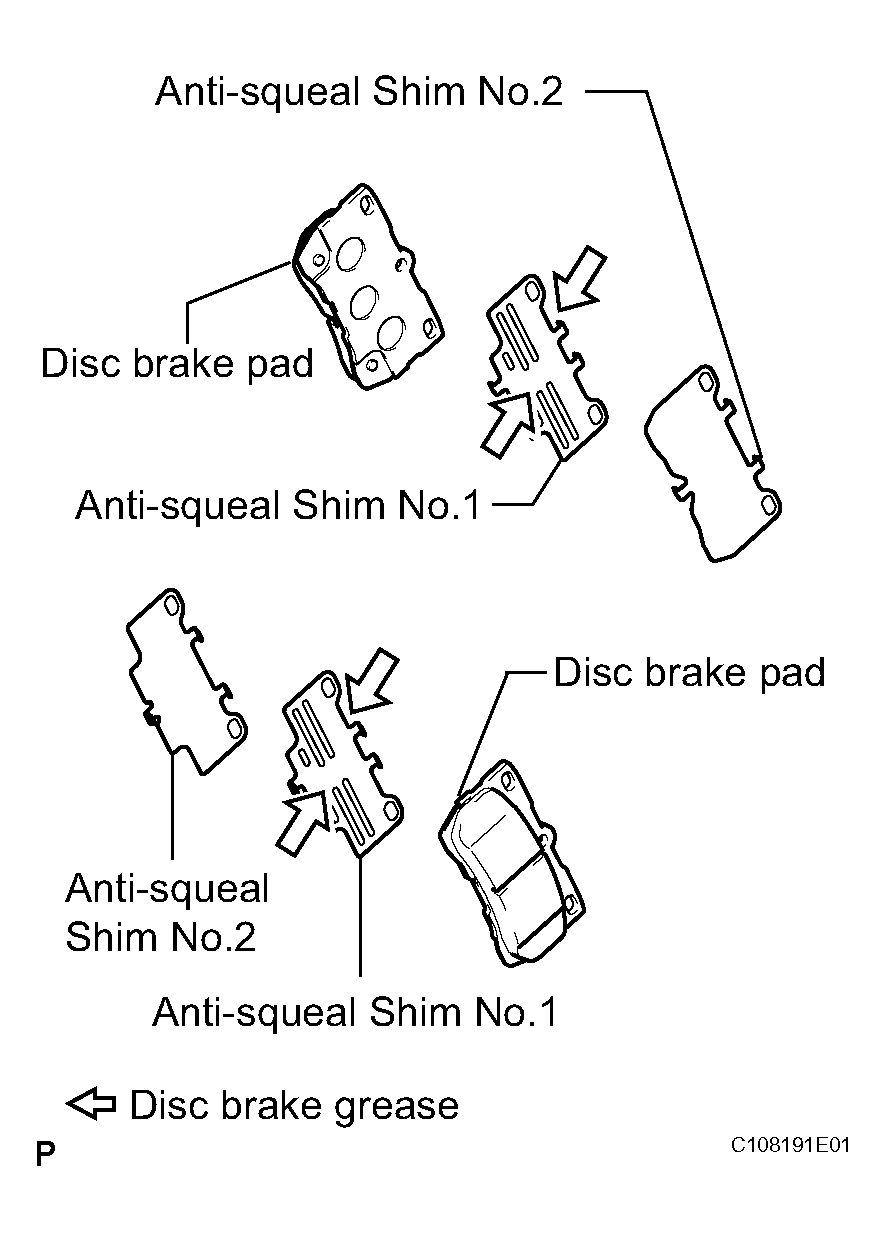

    Fig 4: Identifying Anti-Squeal Shims In Correct Positions And Directions
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DISC BRAKE PAD KIT
1. Install the 2 brake pads to the cylinder assembly rear.
2. Install the 2 pad guide pins, anti-squeal spring and pin hold clip as shown in the illustration.
  NOTE: Make sure that the engaged parts of the anti squeal spring are installed correctly.

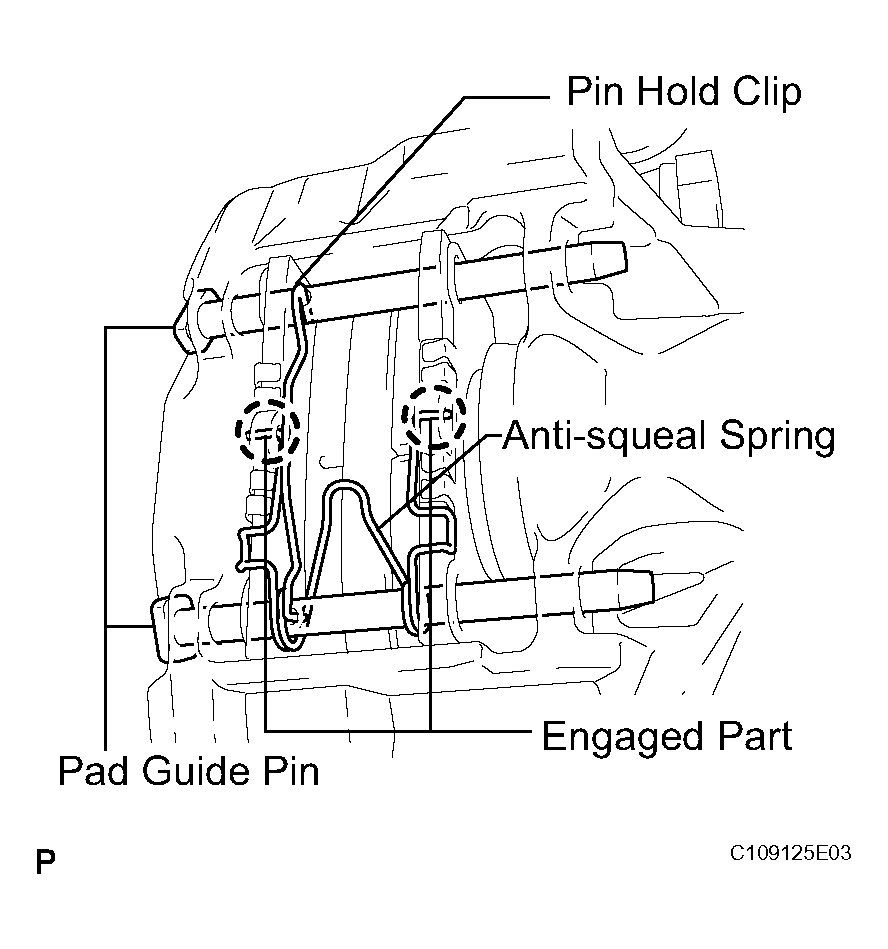

  Fig 5: Identifying Brake Pads To Cylinder Assembly Rear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT REAR LH FLEXIBLE HOSE
1. Connect the flexible hose with the union bolt and a new gasket.
  Torque: 30 N*m (310 kgf*cm, 22 ft.*lbf)

  NOTE: Install the flexible hose lock securely in the lock hole in the disc brake cylinder assembly rear.

  Fig 6: Locating Flexible Hose Union Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISABLE BRAKE CONTROL (w/ ECB) (See BLEEDING )
ADD RESERVOIR WITH BRAKE FLUID (w/ VSC) (See BRAKE FLUID (W/ VSC) )
ADD RESERVOIR WITH BRAKE FLUID (w/ ECB) (See BRAKE PEDAL )
BLEED BRAKE LINE (w/ VSC) (See BLEEDING )
BLEED REAR BRAKE SYSTEM (w/ ECB) (See BRAKE PEDAL )
CHECK BRAKE FLUID LEVEL (w/ ECB) (See BRAKE PEDAL )
CHECK BRAKE FLUID LEVEL (w/ VSC) (See BRAKE FLUID (W/ ECB) )
CHECK AND CLEAR DTC
(See DTC CHECK / CLEAR )
CHECK AND CLEAR DTC
(See DTC CHECK / CLEAR )
INSPECT CHECK BRAKE LEAKAGE
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
