Rear Brake Pad, Brake Caliper & Brake Rotor: Disassembly

REMOVE CALIPER SUPPORT BRACKET
1. Remove the caliper support bracket from the cylinder assembly rear.

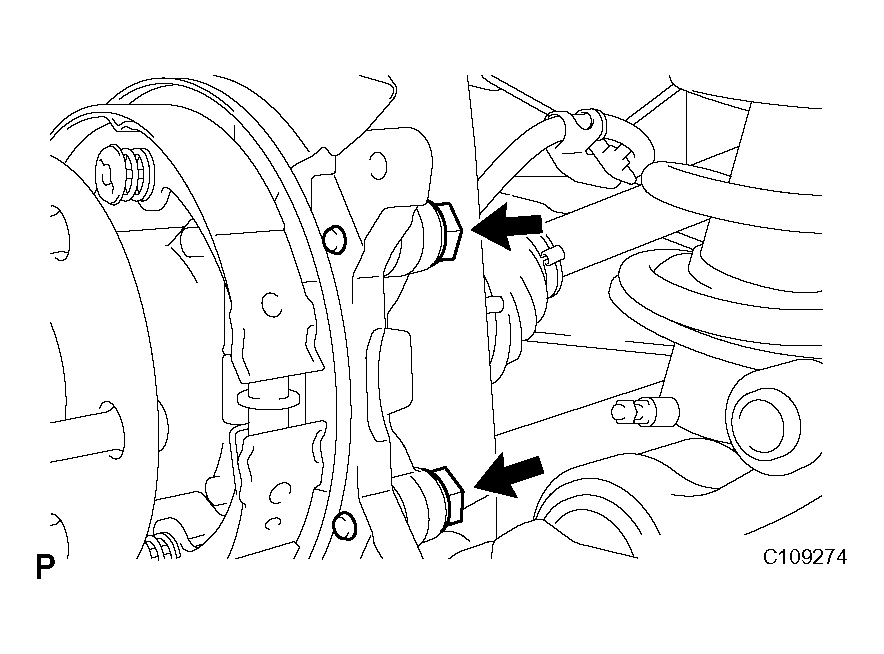

  Fig 1: Identifying Caliper Support Bracket From Cylinder Assembly Rear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR DISC BRAKE CYLINDER SLIDE BUSH
1. Remove the cylinder slide bush from the cylinder assembly rear.
REMOVE REAR DISC BRAKE BUSH DUST BOOT
1. Remove the bush dust boot from the cylinder assembly rear.
REMOVE REAR DISC BRAKE PISTON
1. Place a shop rag or a piece of cloth between the piston and the cylinder assembly rear.
2. Use compressed air to remove the piston from the cylinder assembly rear.
  CAUTION: Do not place your fingers in front of the brake piston when using compressed air.

  NOTE: Do not spatter the brake fluid.

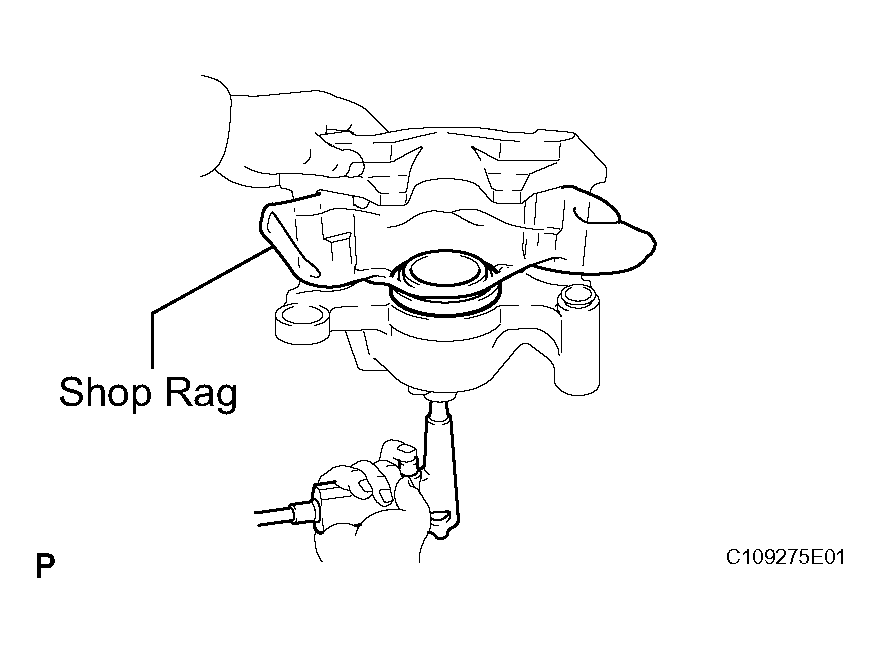

  Fig 2: Removing Rear Disc Brake Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CYLINDER BOOT
1. Remove the cylinder boot from the piston or cylinder assembly rear.
REMOVE PISTON SEAL
1. Using a screwdriver, remove the piston seal from the cylinder assembly rear.
  NOTE: Do not damage the inner cylinder and the cylinder groove.

  HINT:

  Tape the screwdriver tip before using.

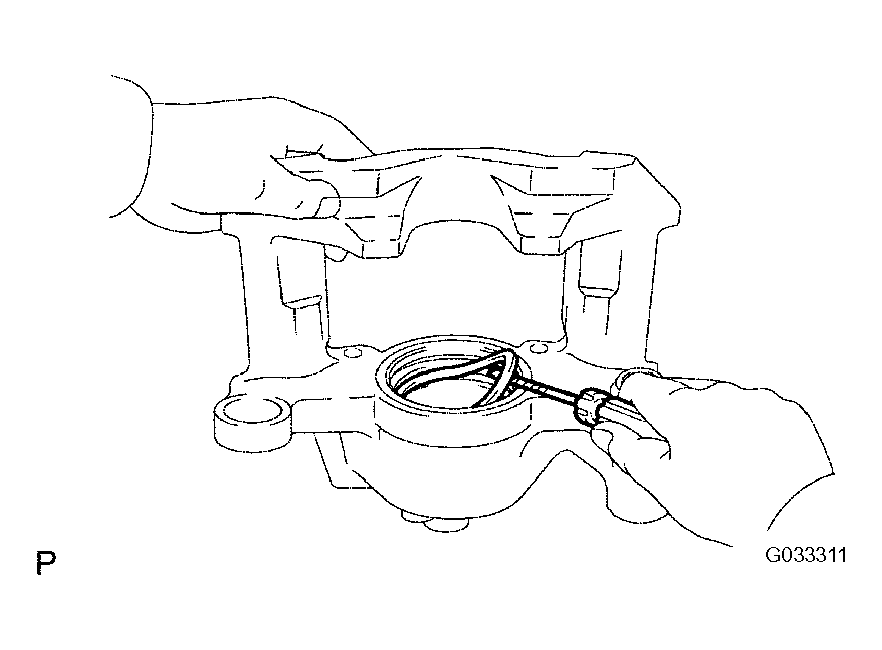

  Fig 3: Removing Piston Seal From Cylinder Assembly Rear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR DISC BRAKE BLEEDER PLUG CAP
REMOVE REAR DISC BRAKE BLEEDER PLUG
REMOVE REAR DISC
1. Put matchmarks on the rear disc and the axle hub.
2. Remove the read disc.

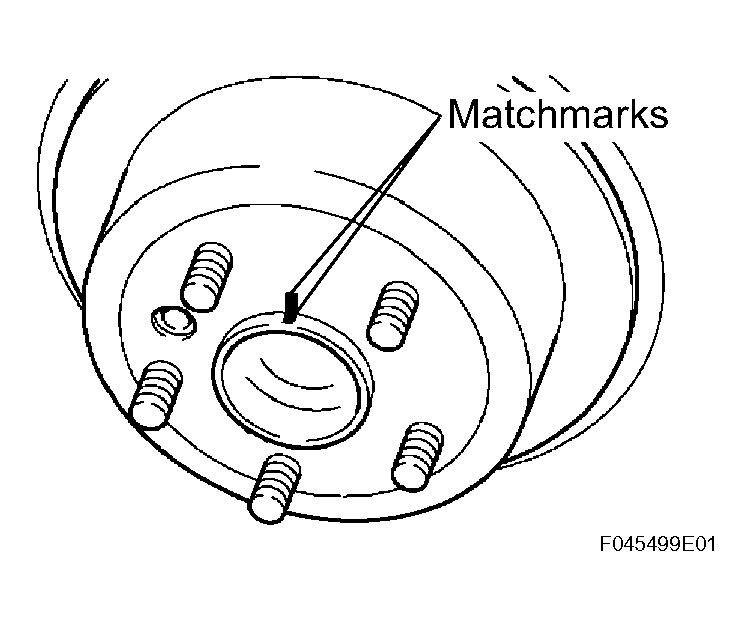

  Fig 4: Identifying Read Disc
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG
