Rear Brake Flexible Hose: Removal

HINT:

• Use the same procedure for the RH side and LH side.
• The procedure listed below are for the LH side.

1. REMOVE REAR WHEEL
2. DRAIN BRAKE FLUID
3. REMOVE REAR BRAKE FLEXIBLE HOSE
   1. Remove the brake tube with a SST while holding the rear brake flexible hose with a wrench.

      SST 09023-00101

      NOTE:

      • Do not bend or damage the brake tube.
      • Do not allow any foreign matter such as dirt and dust to enter rear brake flexible hose with a wrench.

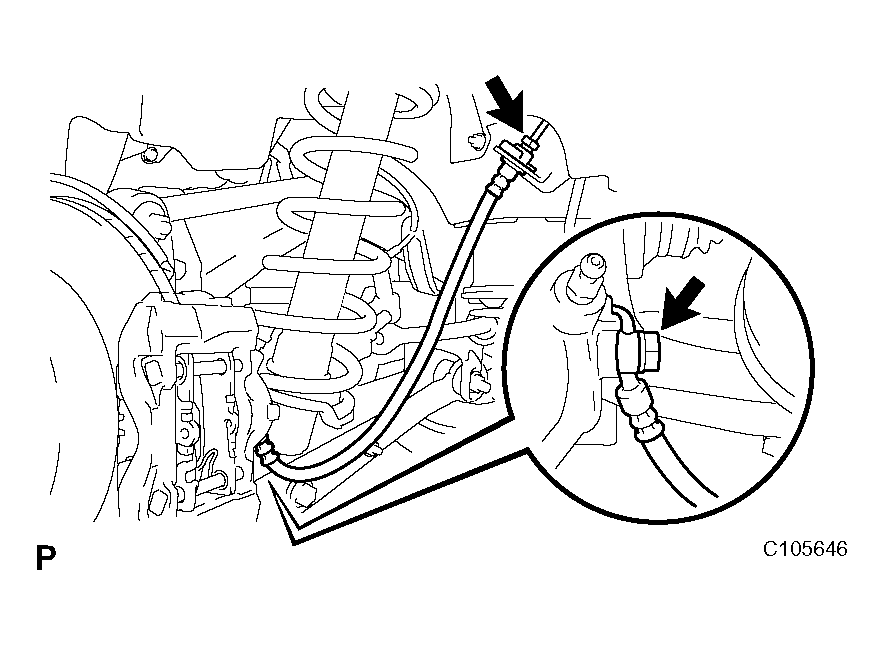

        Fig 1: Identifying Brake Tube

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the clip.
   3. Remove the union bolt, the rear brake flexible hose and gasket.
