Rear Brake Flexible Hose: Components

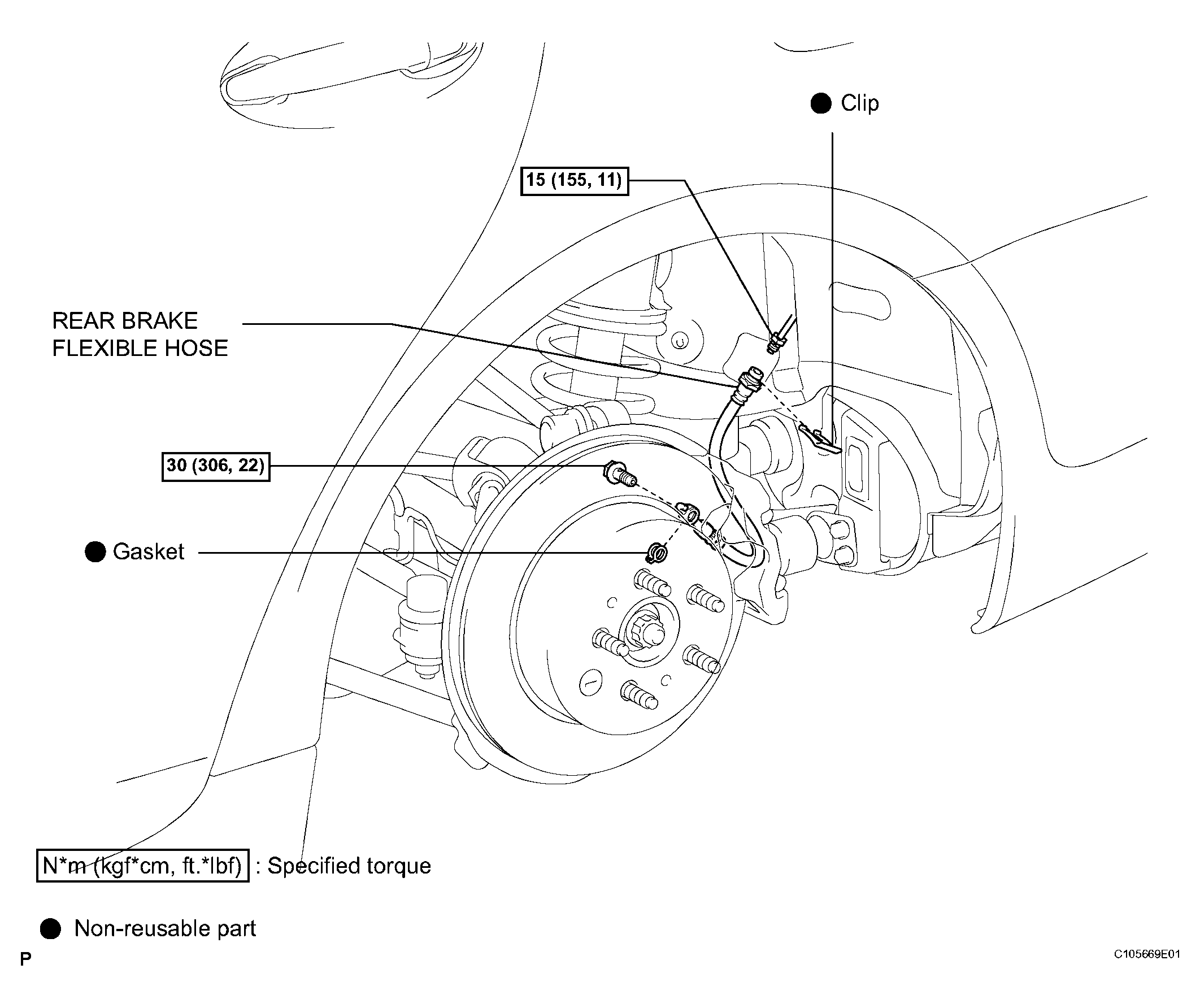

Fig 1: Rear Brake Flexible Hose Replacement Components With Torque Specifications

G04025399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
