FRONT BRAKE PAD, BRAKE CALIPER & BRAKE ROTOR (for 3UZ-FE): Installation

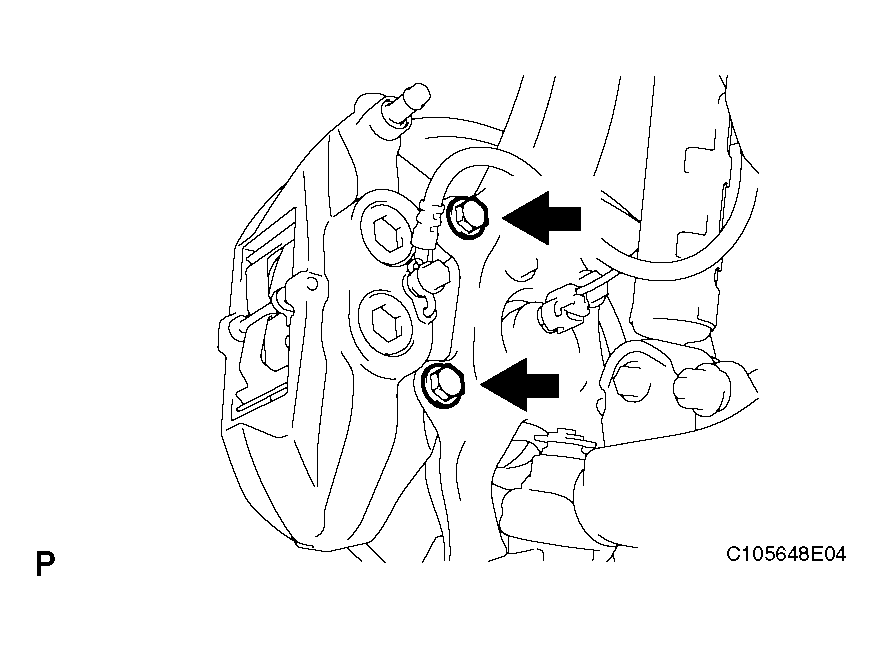

INSTALL DISC BRAKE CYLINDER ASSEMBLY LH
1. Install the caliper with the 2 bolts.
  Torque: 78.4 N*m (800 kgf*cm, 58 ft.*lbf)

  Fig 1: Installing Caliper With 2 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

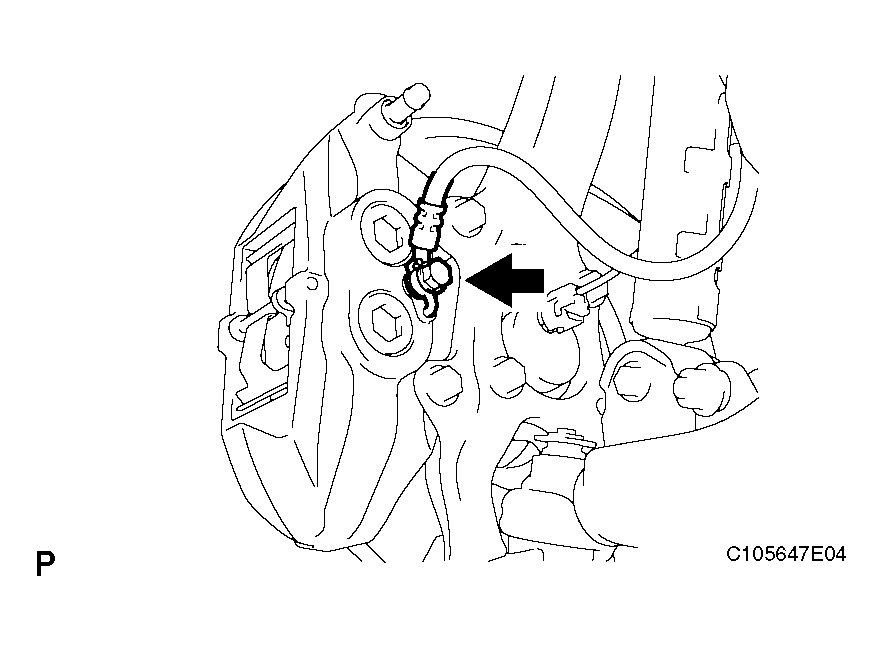

CONNECT FRONT FLEXIBLE HOSE
1. Connect the flexible hose with union bolt and a new gasket
  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

  NOTE: Install the flexible hose lock securely in the lock hole in the disc brake cylinder assembly.

  Fig 2: Connecting Front Flexible Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

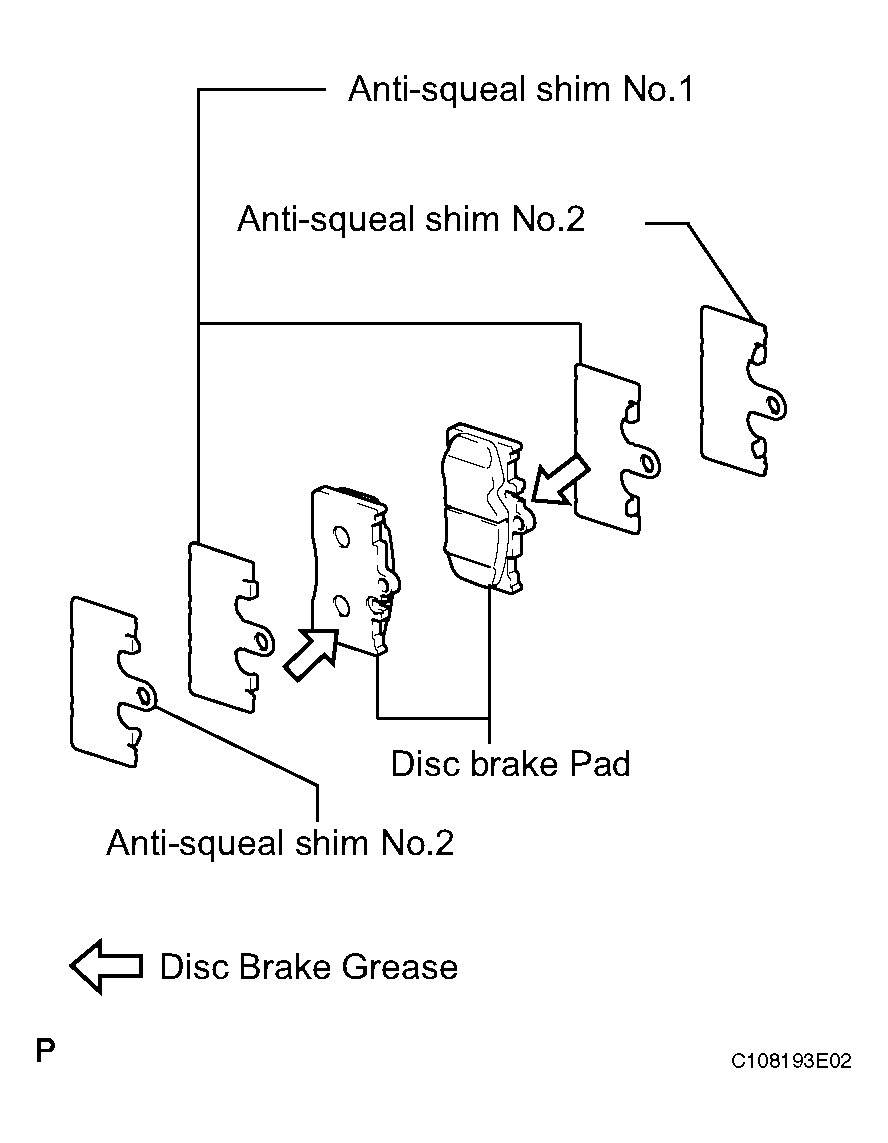

INSTALL DISC BRAKE PAD KIT FRONT (PAD ONLY)
HINT:

Install the clip lock securely in the groove of the pad.
1. Apply disc brake grease to the anti squeal shims and install them to each pad.
  NOTE:
  - When replacing worn pads, the anti squeal shims must be replaced together with the pad.
  - Install each shim in the correct position and direction.
  - There should be no oil or grease on the friction surface of the pads and the disc.
  Fig 3: Installing Each Shim In Correct Position And Direction
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

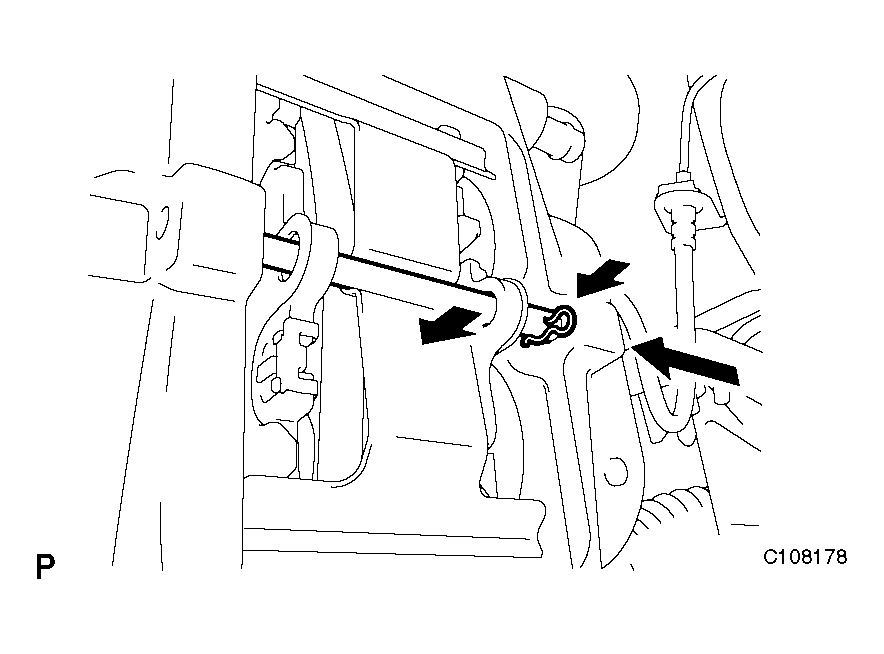

INSTALL FRONT DISC BRAKE ANTI-RATTLE SPRING
1. Install the hole pin while pushing on the front disc brake anti-rattle spring.
2. install the clip.

  Fig 4: Installing Hole Pin While Pushing On Front Disc Brake Anti-Rattle Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DISC BRAKE WITH HOLE PIN
DISABLE BRAKE CONTROL (w/ ECB) (See BLEEDING )
ADD RESERVOIR WITH BRAKE FLUID (w/ ECB) (See BLEEDING )
BLEED BRAKE FRONT BRAKE SYSTEM (w/ ECB) (See BLEEDING )
CHECK BRAKE FLUID LEVEL (w/ ECB) (See BLEEDING )
INSPECT BRAKE FLUID LEAKAGE
INSTALL FRONT WHEEL
CHECK AND CLEAR DTC
(See DTC CHECK / CLEAR )
