FRONT BRAKE PAD, BRAKE CALIPER & BRAKE ROTOR (for 3UZ-FE): Components

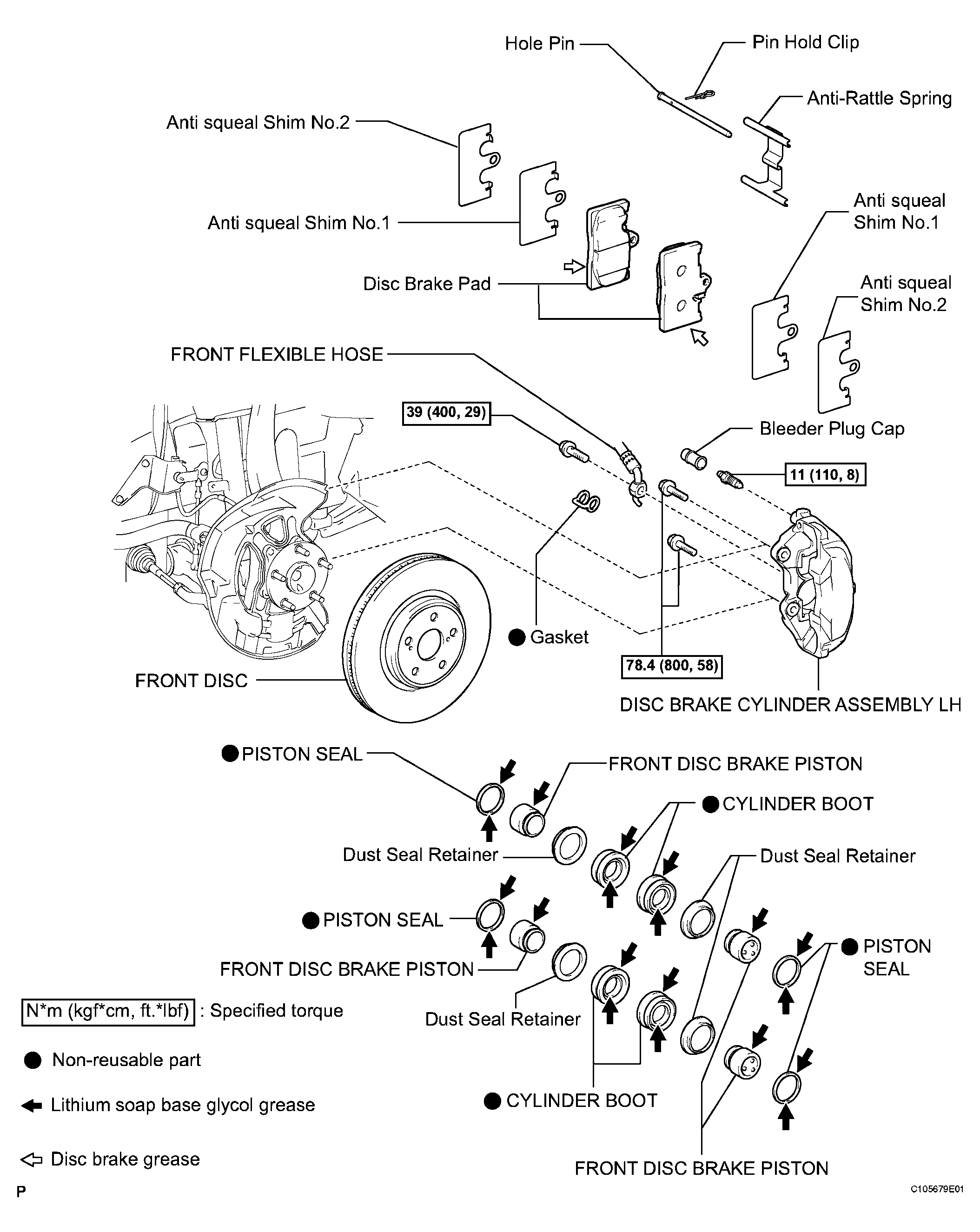

Fig 1: Exploded View Of Front Brake With Torque Specifications (For 3UZ-FE)

G04029993

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
