FRONT BRAKE PAD, BRAKE CALIPER & BRAKE ROTOR (for 3GR-FSE): Components

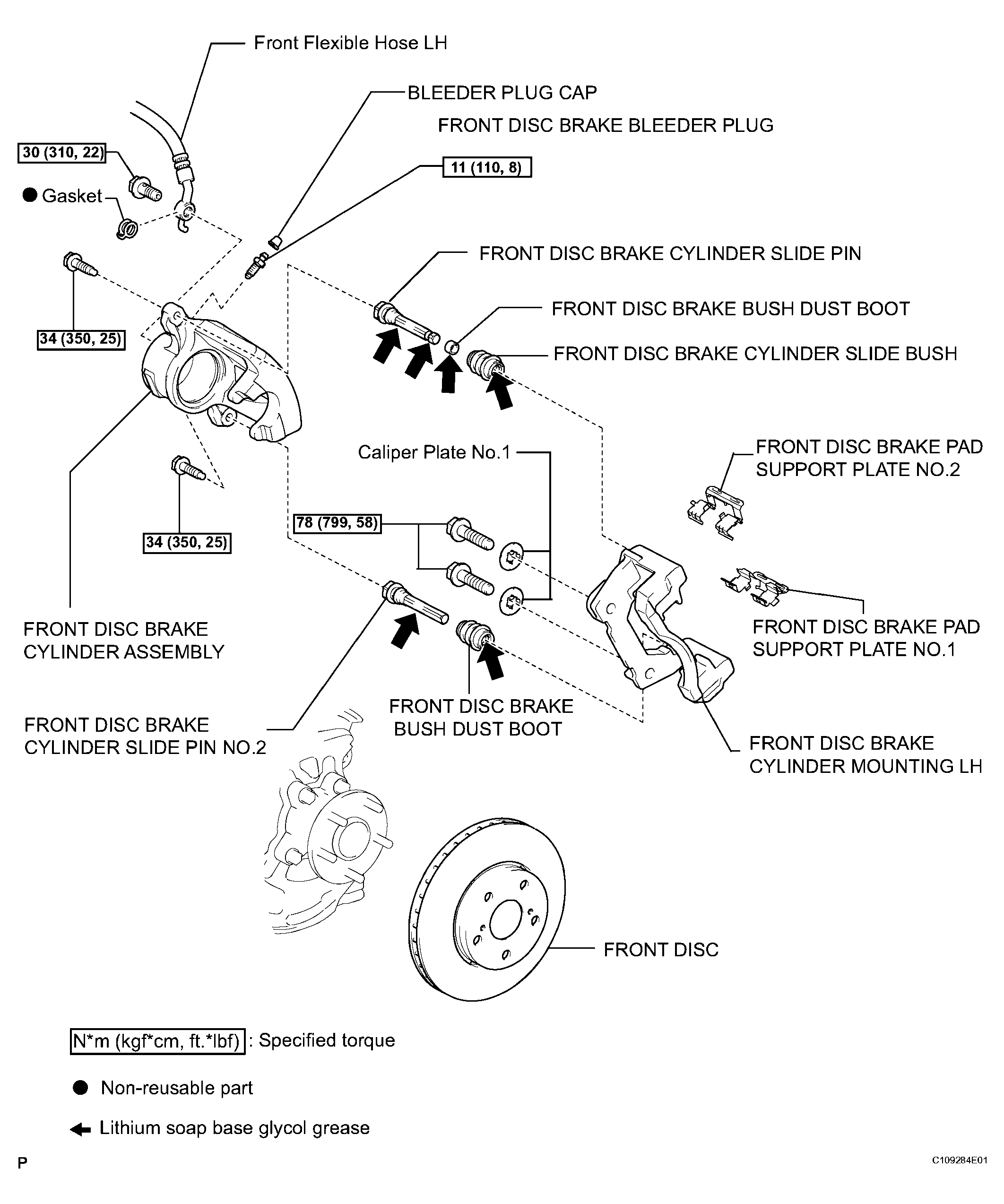

Fig 1: Front Brake Replacement Components With Torque Specifications (For 3GR-FSE) (1 Of 2)
G04025355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

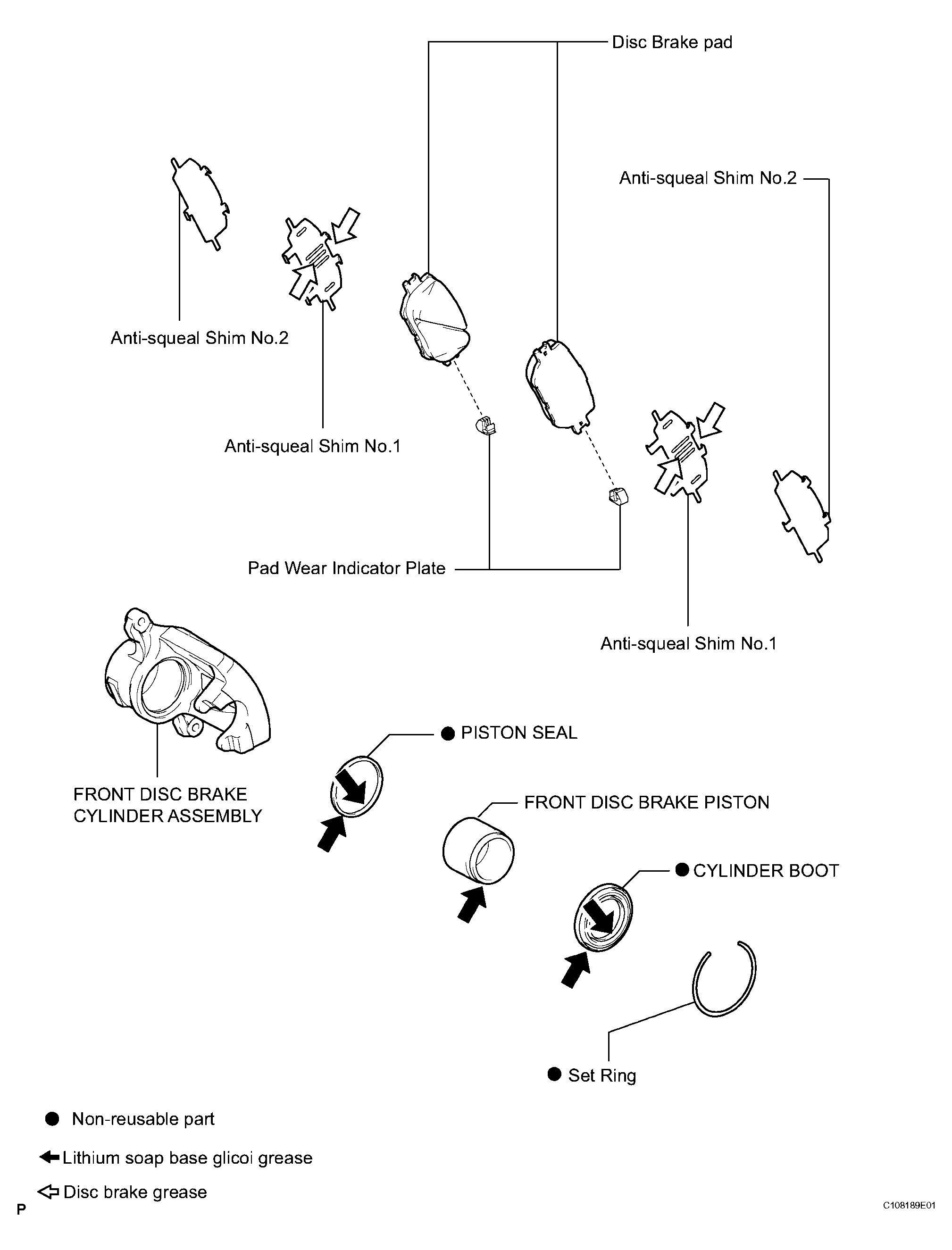

Fig 2: Front Brake Replacement Components With Torque Specifications (For 3GR-FSE) (2 Of 2)
G04025356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
