System Diagram

HINT:

See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake tubes.

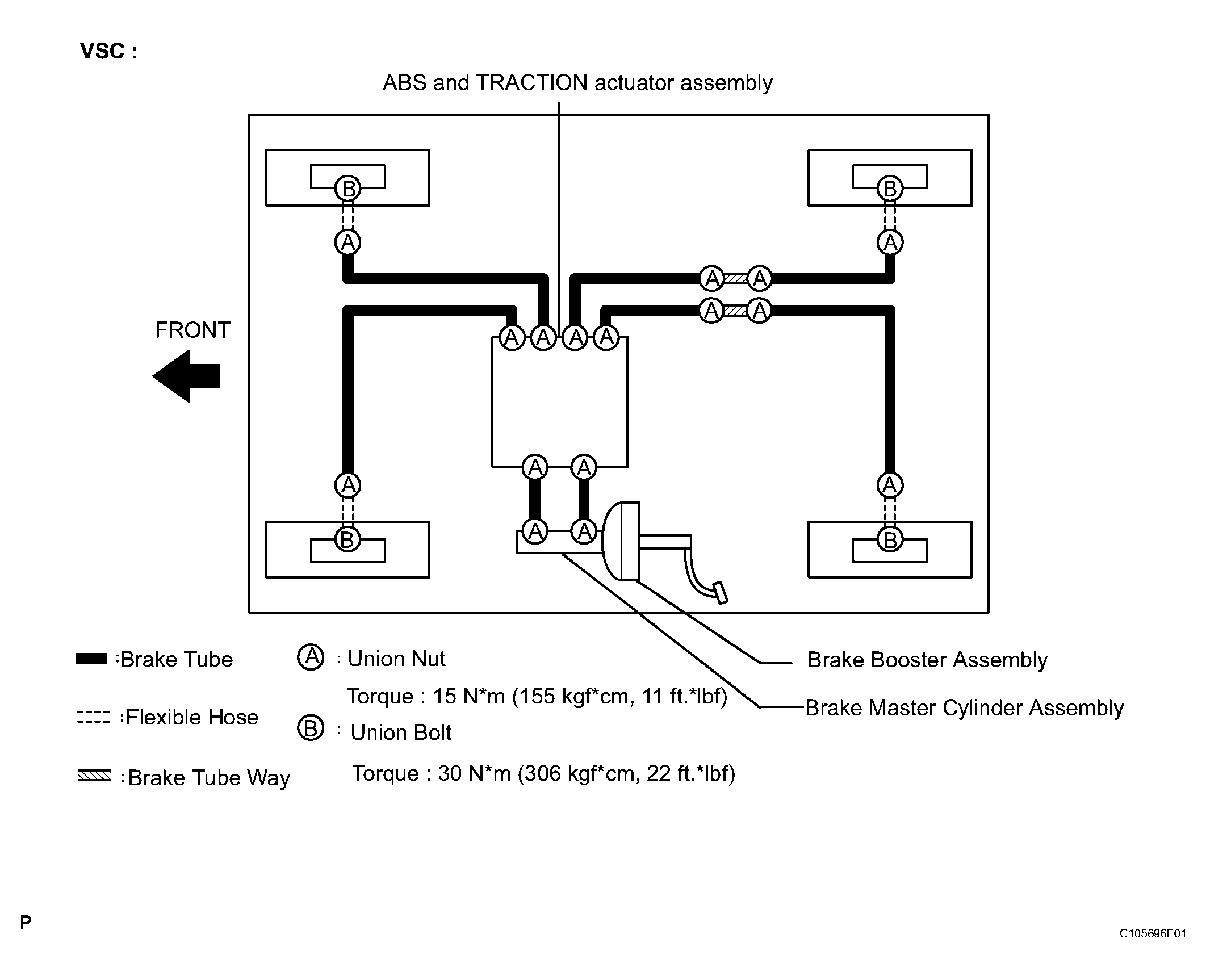

Fig 1: Brake System Diagram - VSC

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

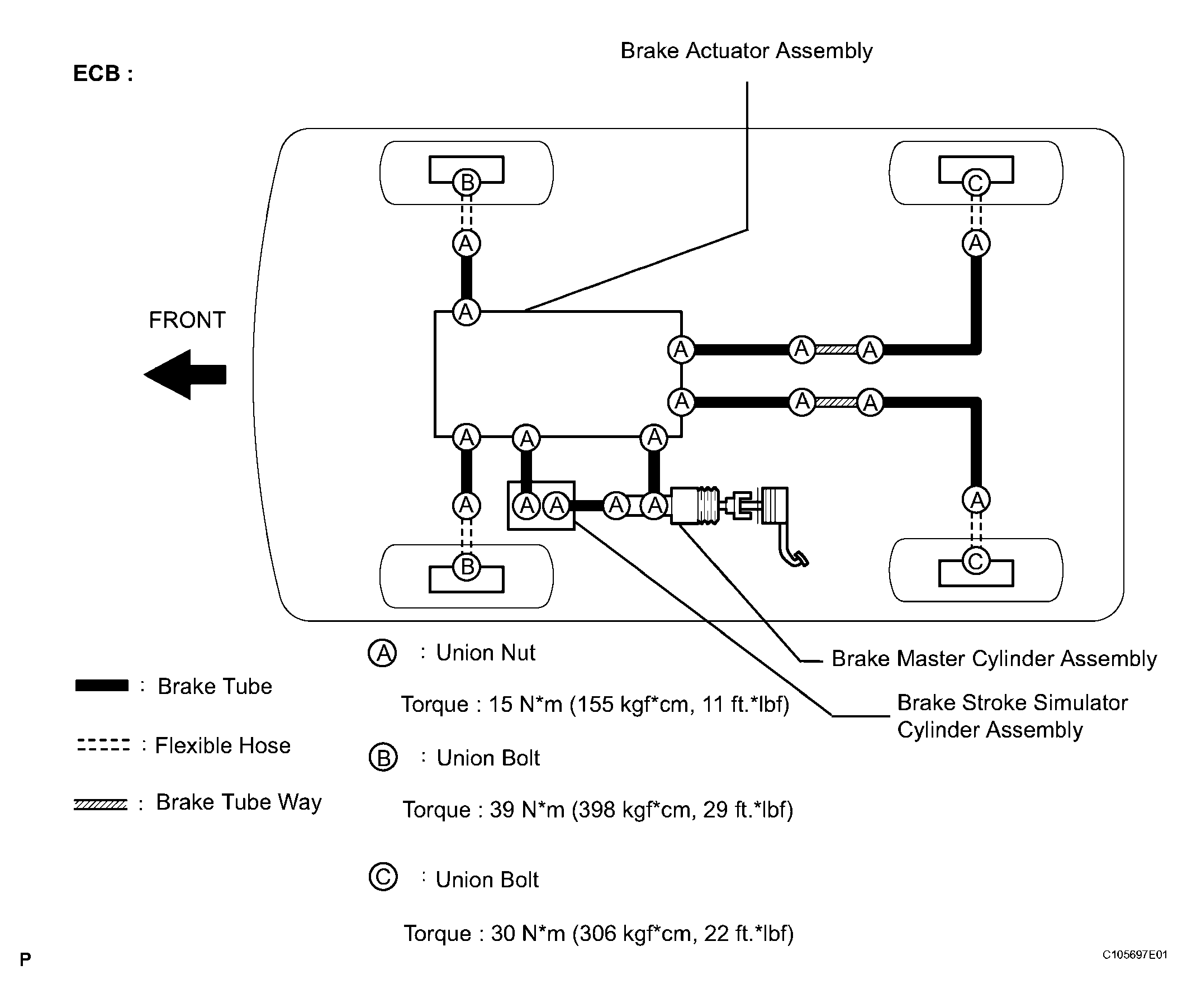

Fig 2: Brake System Diagram - ECB
