Brake Pedal: Components

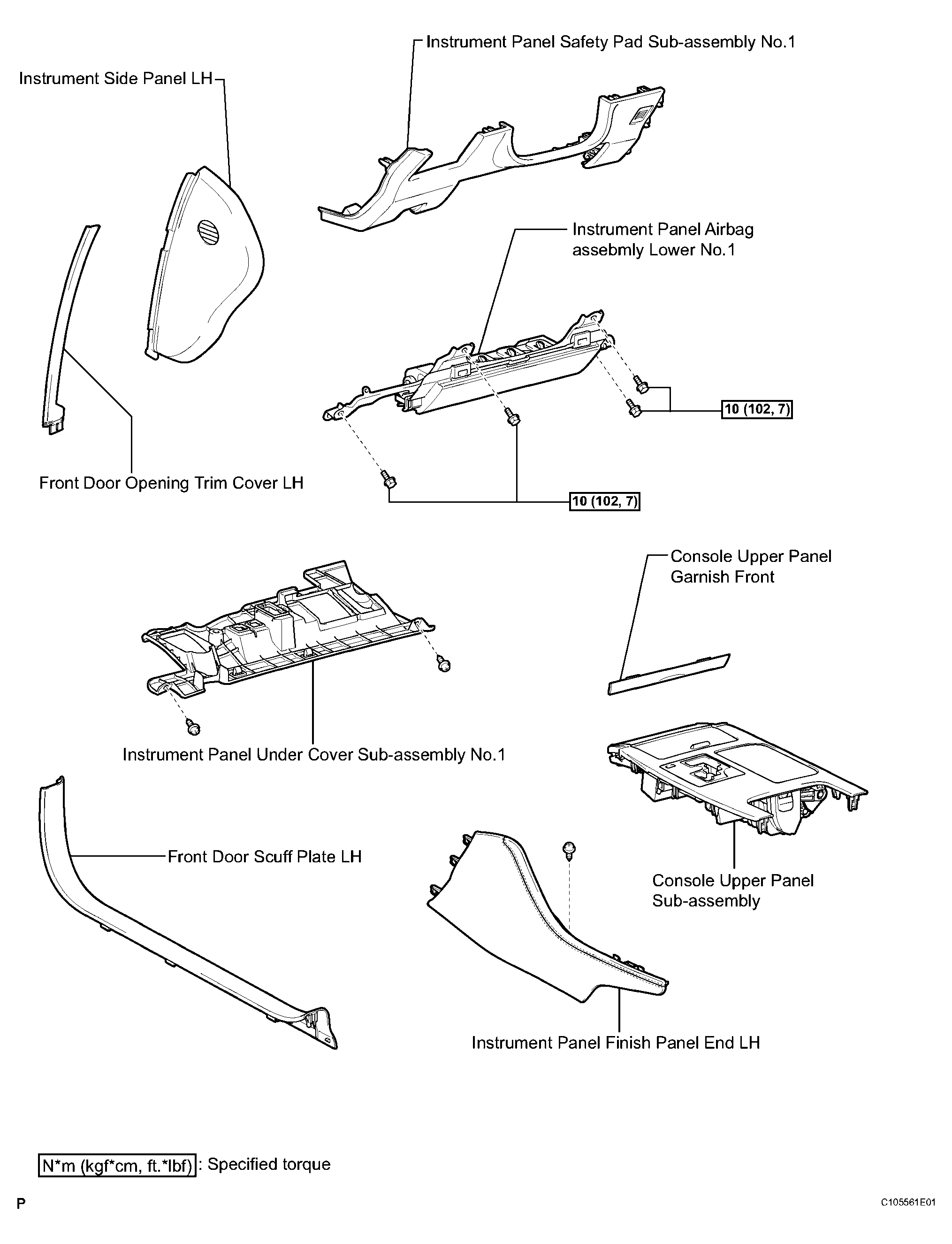

Fig 1: Brake Pedal Replacement Components With Torque Specifications (1 Of 3)
G04025300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

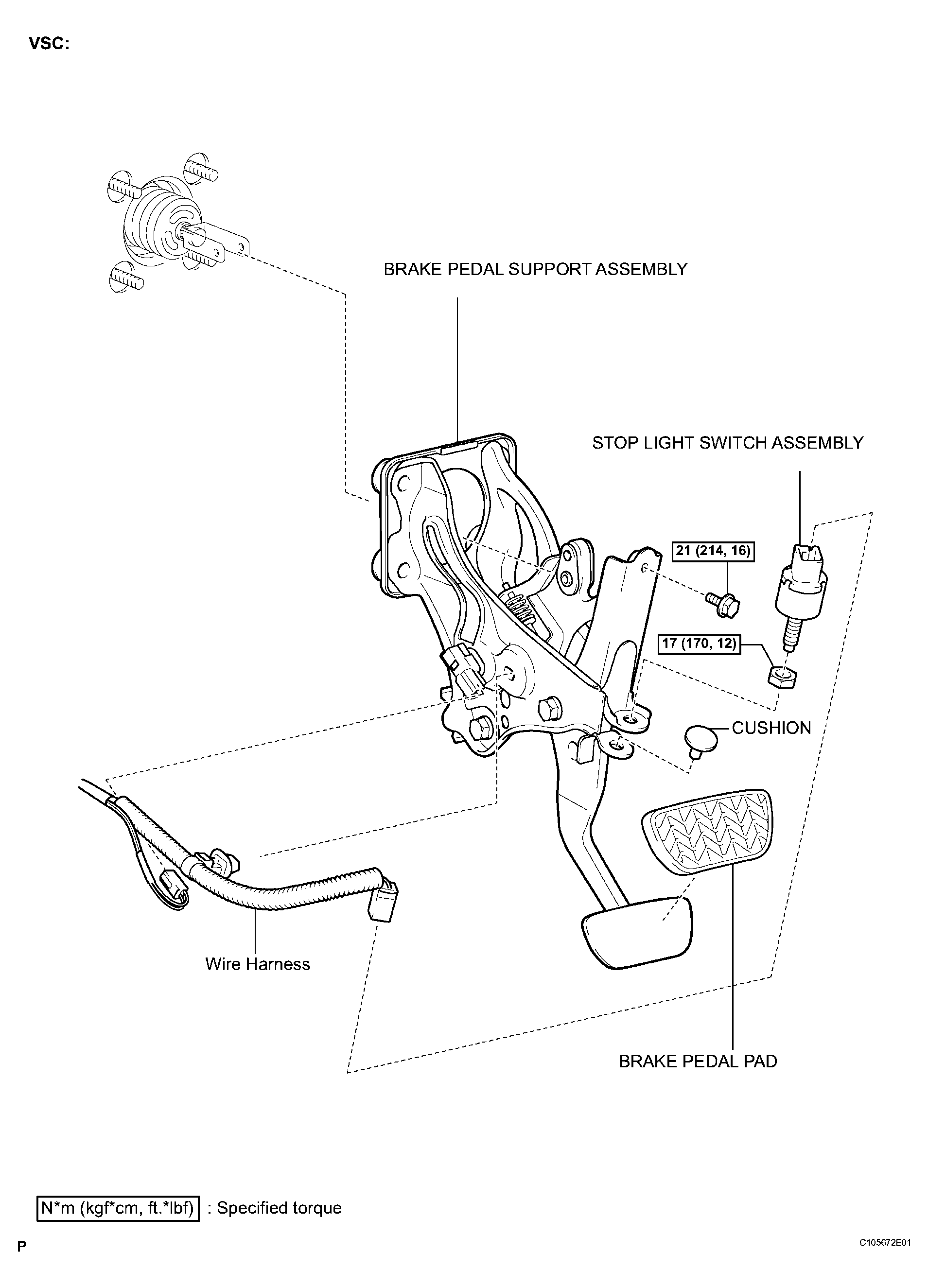

Fig 2: Brake Pedal Replacement Components With Torque Specifications (2 Of 3)
G04025301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

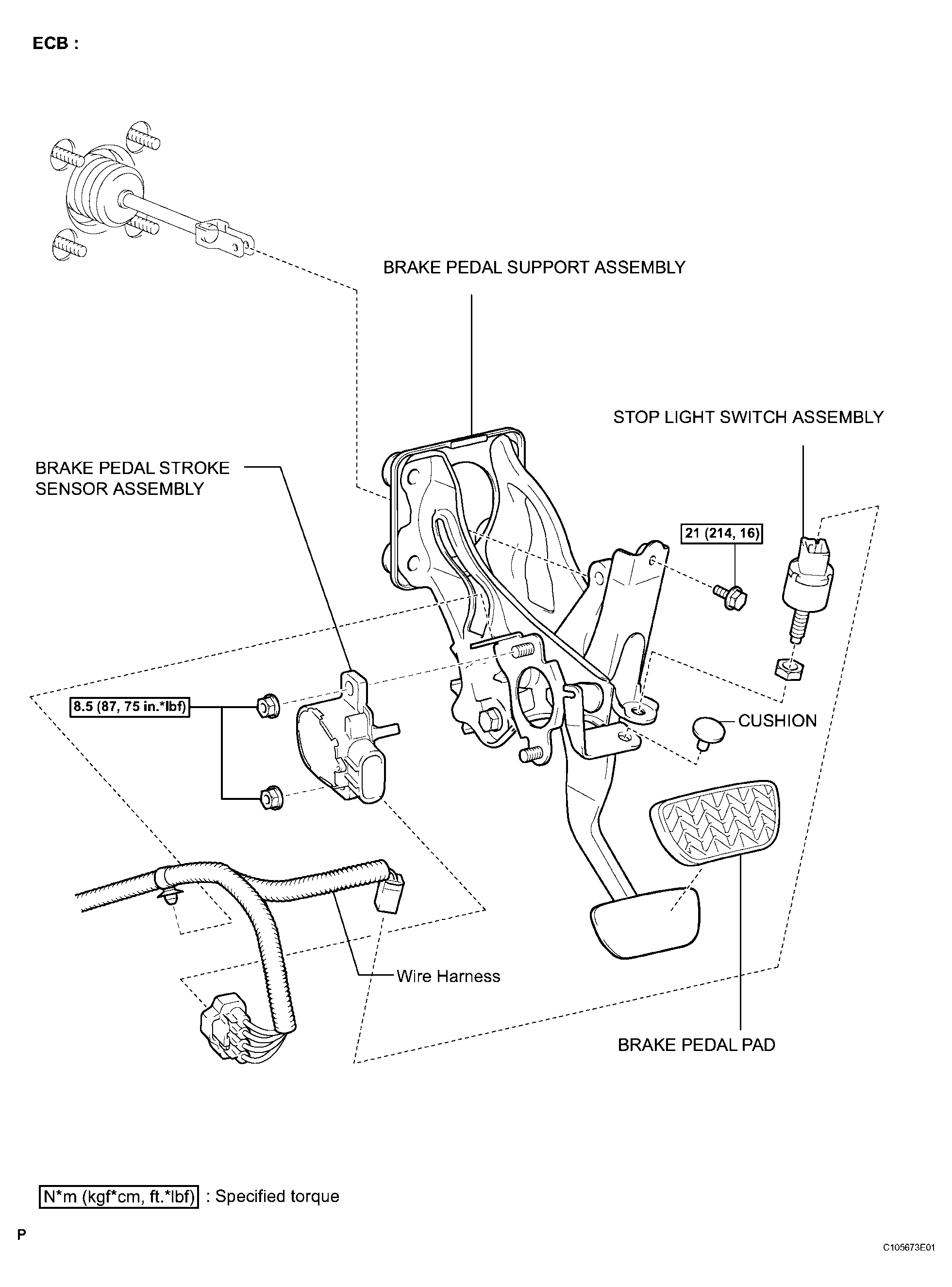

Fig 3: Brake Pedal Replacement Components With Torque Specifications (3 Of 3)
G04025302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
