BRAKE MASTER CYLINDER (w/ VSC): Components

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (w/ VSC) (1 Of 2)
G04025318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

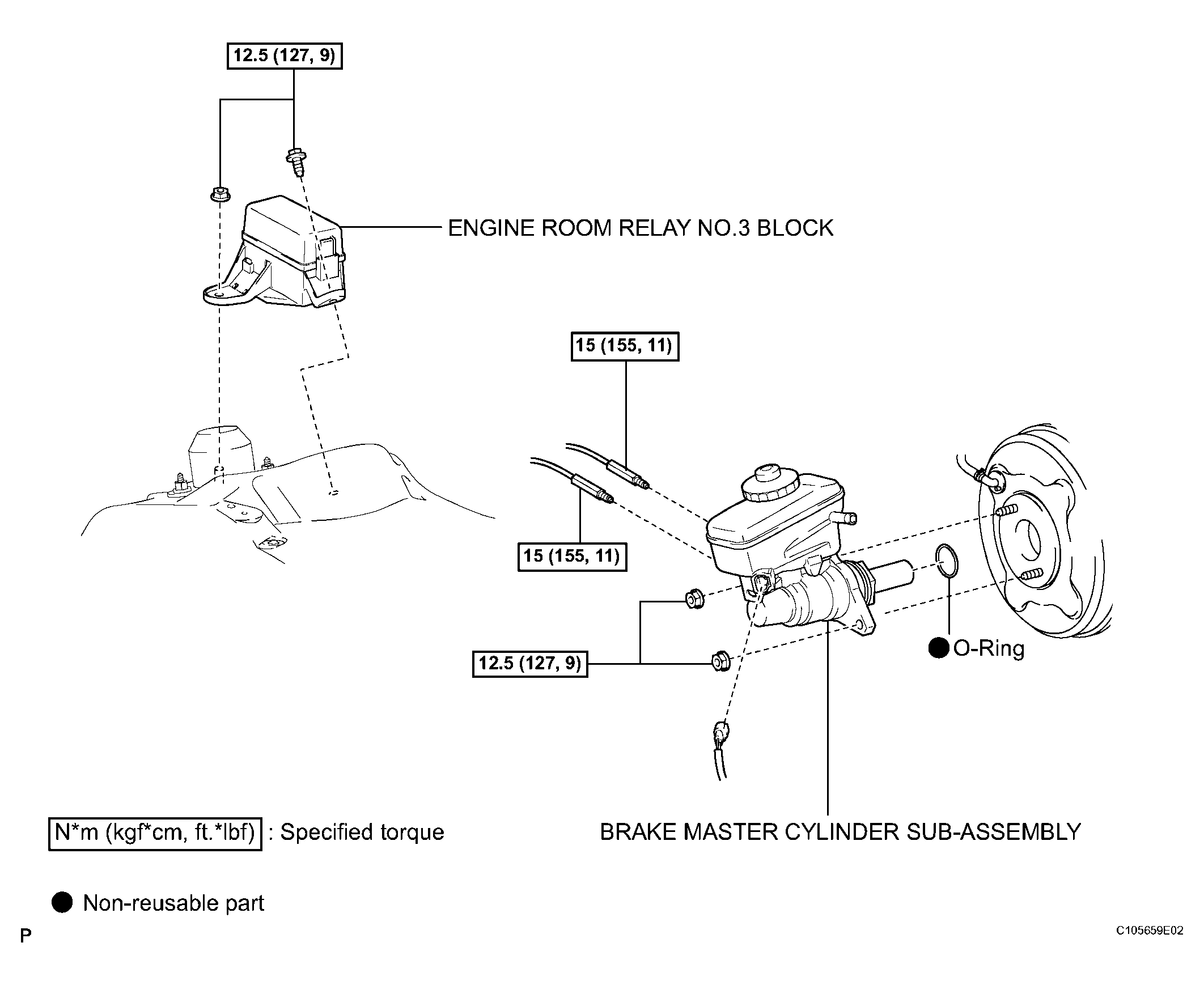

Fig 2: Brake Master Cylinder Replacement Components With Torque Specifications (w/ VSC) (2 Of 2)
G04025319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
