BRAKE MASTER CYLINDER (w/ ECB): Reassembly

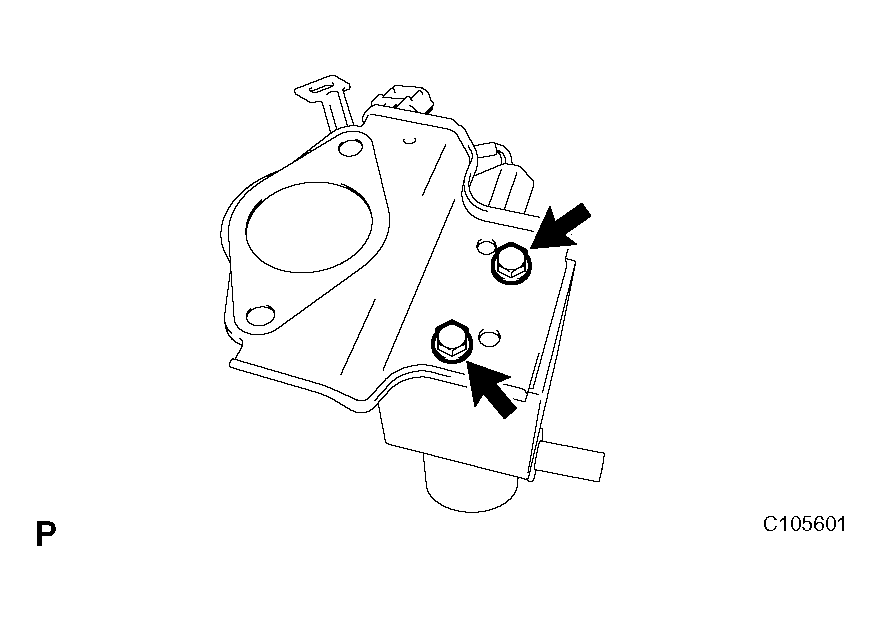

1. Install the brake stroke simulator cylinder to the brake simulator bracket with the 2 bolts.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   Fig 1: Identifying Brake Stroke Simulator Cylinder To Brake Simulator Bracket With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the connector to the brake stroke simulator bracket.

1. Temporarily install brake master cylinder push rod clevis and the lock nut.

1. Apply a thin layer of grease to 2 new master cylinder reservoir grommets and install them to the master cylinder assembly.
2. Install brake master cylinder reservoir with the screw.

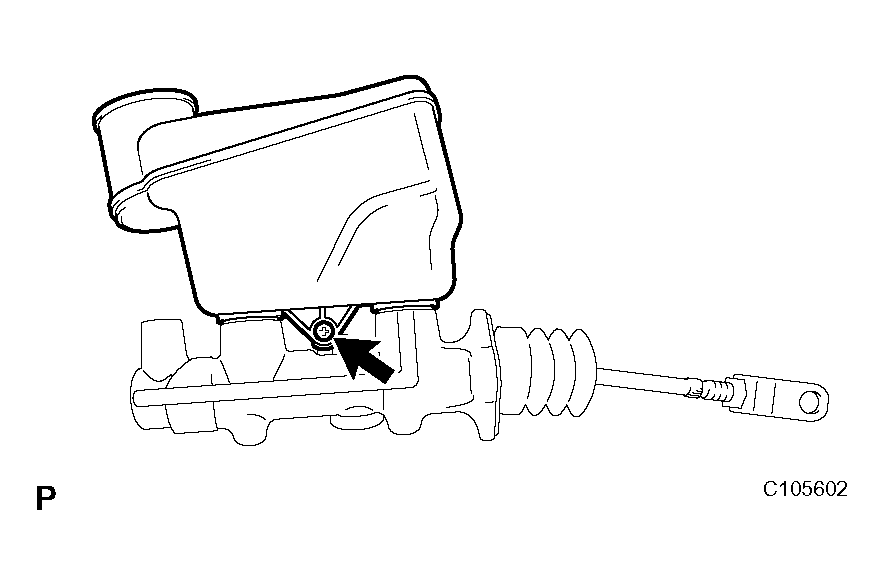

   Fig 2: Identifying Brake Master Cylinder Reservoir With Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

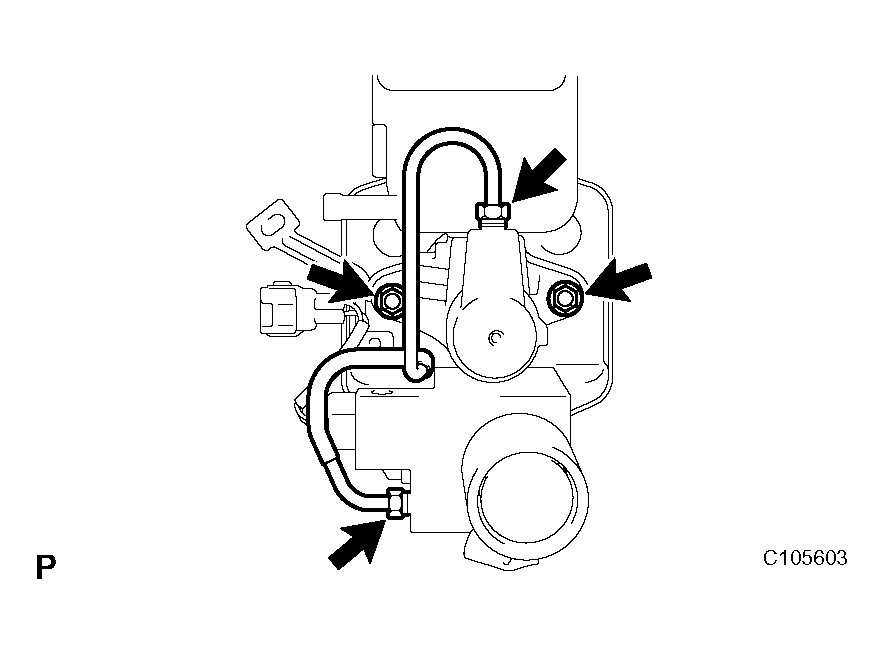

1. Temporarily install a new master cylinder gasket to the master cylinder assembly. Connect the brake stroke simulator cylinder tube to the brake stroke simulator cylinder sub-assembly and master cylinder assembly and loosely tighten the tube.
2. Install a new master cylinder gasket, master cylinder assembly and brake stroke simulator bracket to the master cylinder bracket with the 2 bolts.

   Torque: 12.5 N*m (128 kgf*cm, 9 ft.*lbf)

   Fig 3: Identifying Master Cylinder Gasket, Master Cylinder Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Use the SST to fully tighten the brake stroke simulator cylinder tube.

   SST 09023-00101

   Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

(See DISASSEMBLY  )
