BRAKE MASTER CYLINDER (w/ ECB): Components

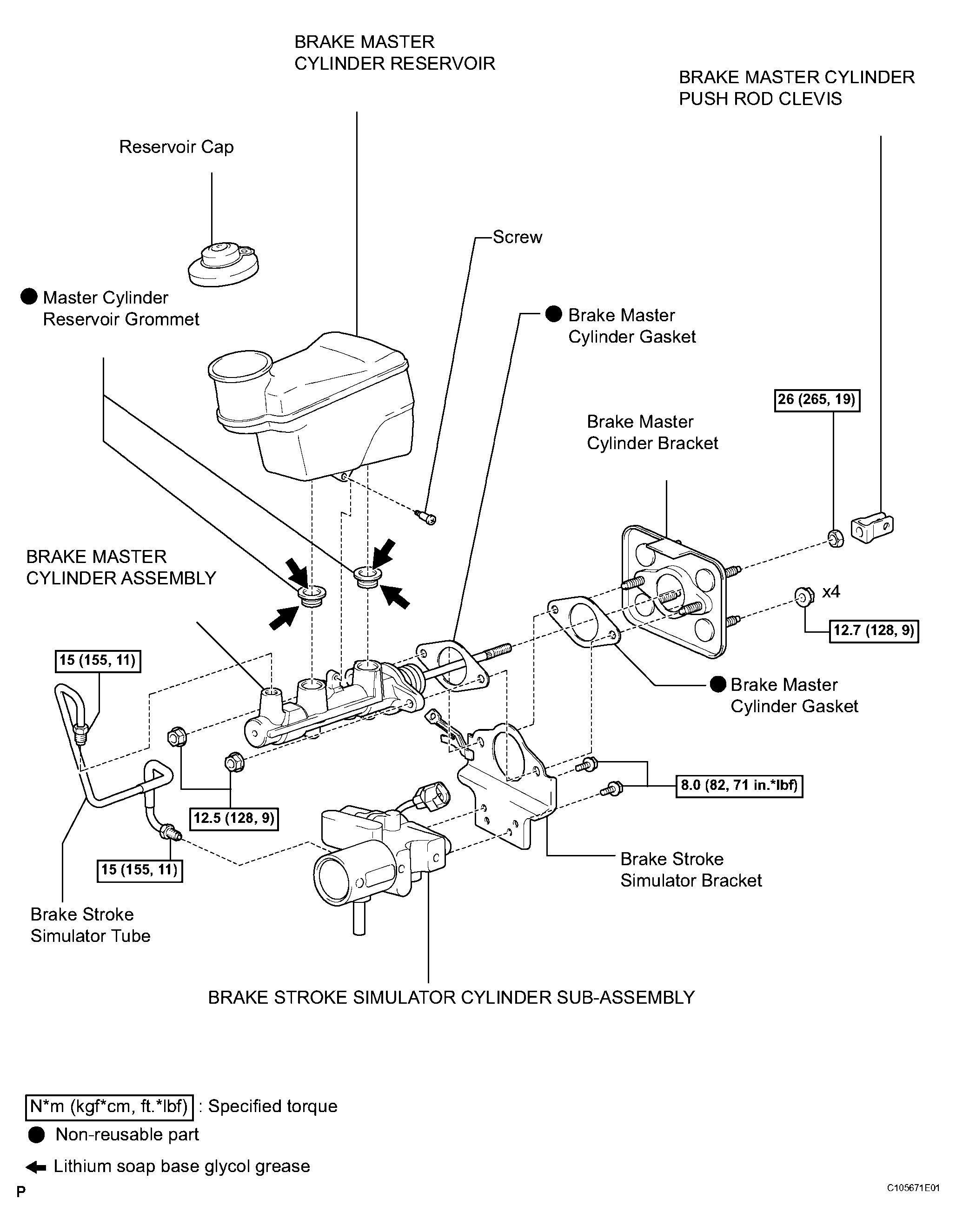

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (W/ ECB) (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

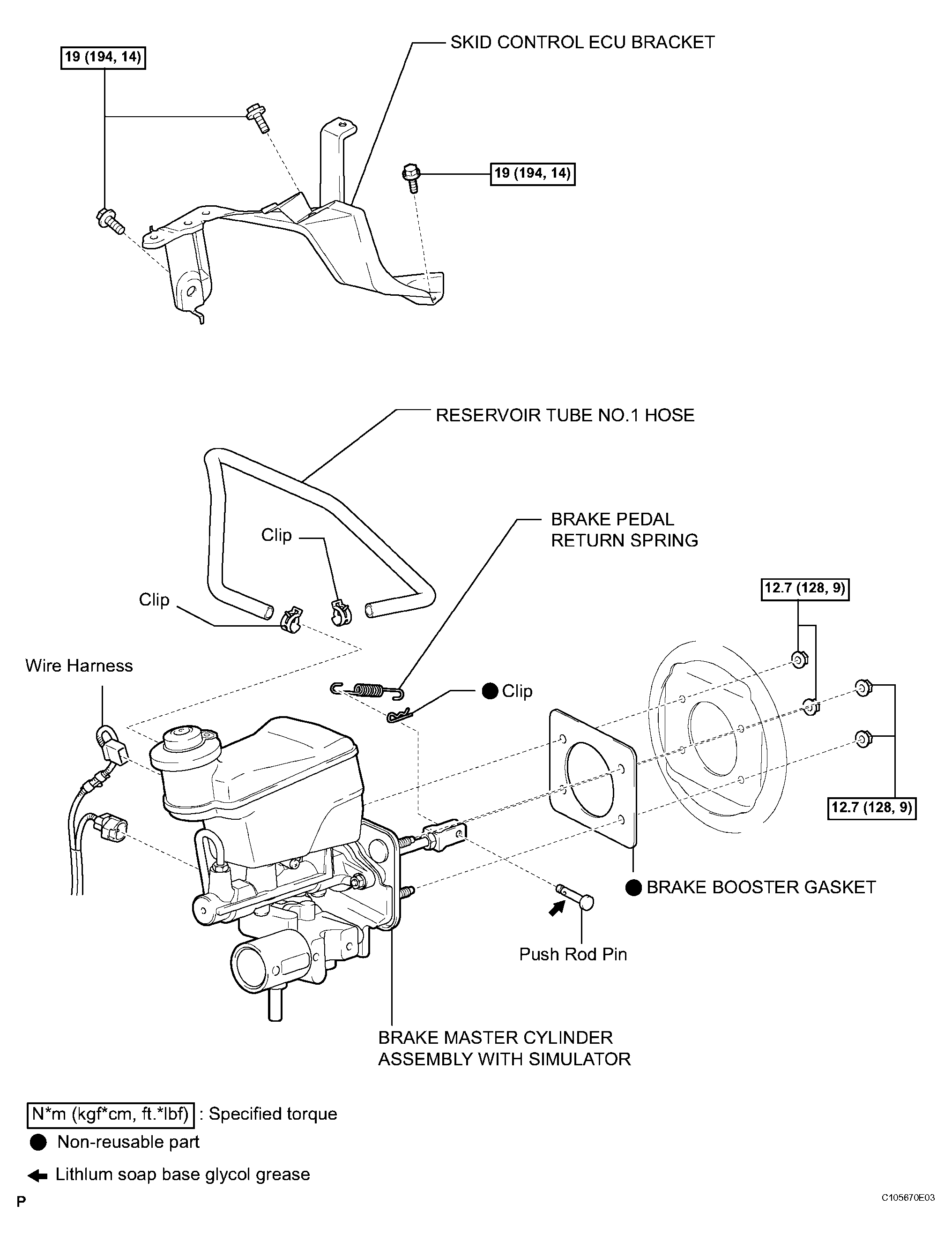

Fig 2: Brake Master Cylinder Replacement Components With Torque Specifications (W/ ECB) (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

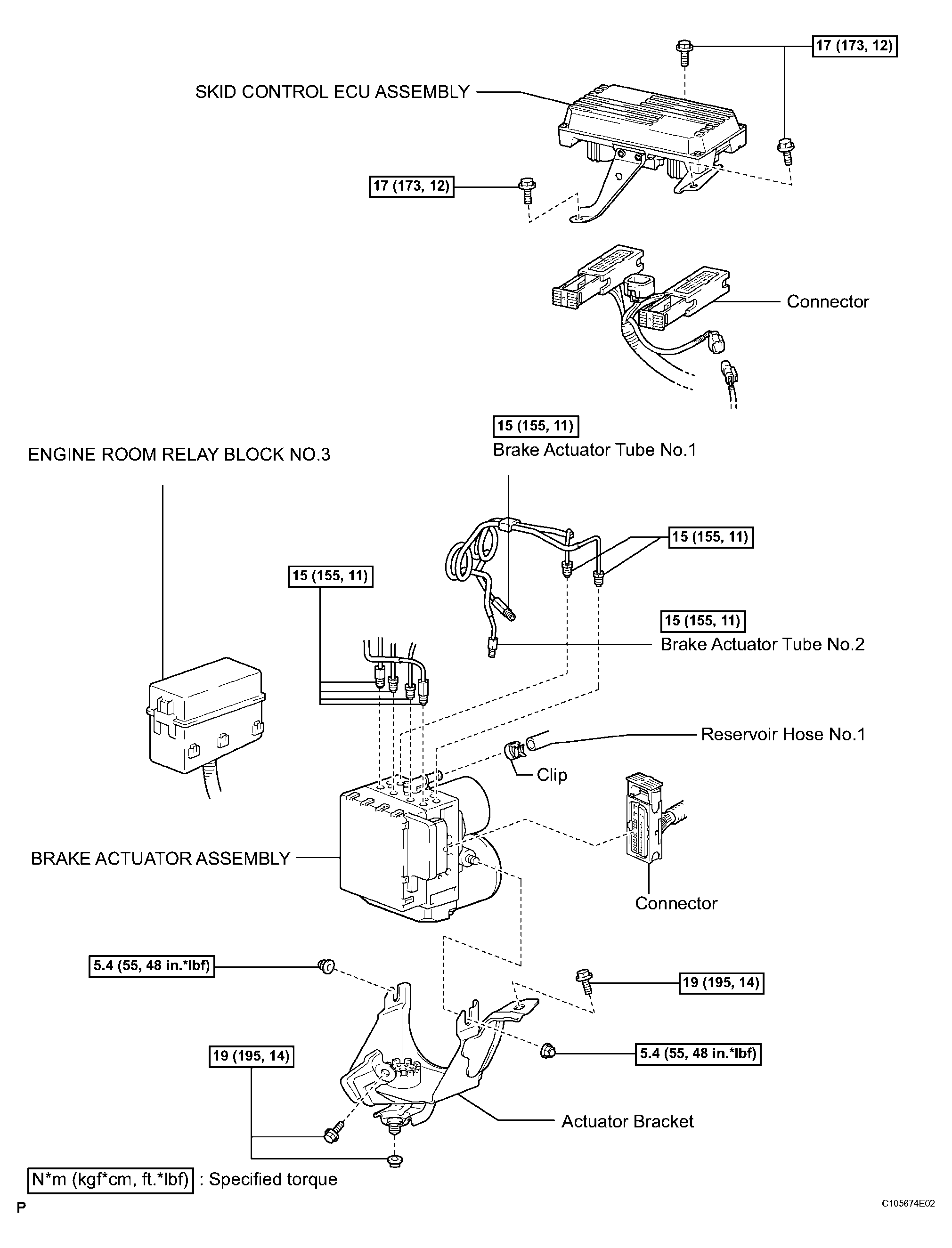

Fig 3: Brake Master Cylinder Replacement Components With Torque Specifications (W/ ECB) (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Brake Master Cylinder Replacement Components With Torque Specifications (W/ ECB) (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
