FRONT SPEED SENSOR (for 2WD): Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are the LH side.

1. REMOVE FRONT WHEEL
2. DISCONNECT SPEED SENSOR FRONT LH
   1. Disconnect the speed sensor connector from the speed sensor front LH.
      NOTE:

      • Be careful not to damage the speed sensor.
      • Prevent foreign matter from adhering to the speed sensor.

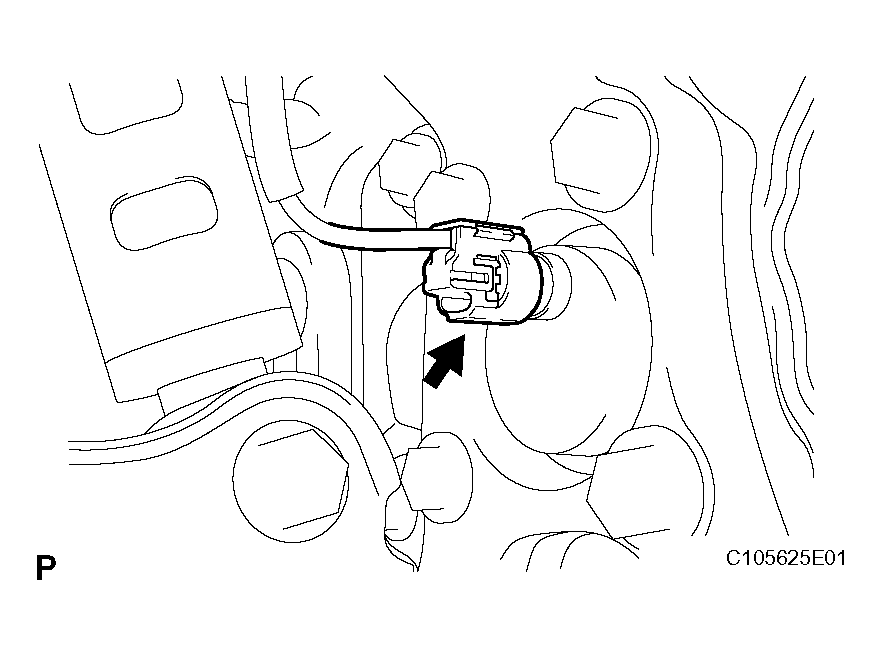

        Fig 1: Identifying Speed Sensor Connector From Speed Sensor Front LH

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY LH (See  REMOVAL  )
4. REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH (See  REMOVAL  )
5. REMOVE SPEED SENSOR FRONT LH
   1. Install the 3 hub bolts. Placing an aluminum plate below the hub and bearing assembly, hold them in a vise.
      NOTE: Replace the hub and bearing assembly if it is dropped or receives a strong shock.
   2. Remove the 2 pins from the SST (09520-00031) and separate the attachment (09521-00010) using a pin punch (3 mm) or hammer.

      SST 09520-00031

   3. Remove the skid control sensor from the hub and bearing assembly using the SST and 2 bolts (90101-12007).

      SST 09520-00031 (09520-00040), 09521-00020, 09950-00020

      NOTE:

      • Keep the sensor away from magnets.
      • Pull the skid control sensor off straight, taking care not to make contact with the skid control sensor rotor.
      • If the speed sensor rotor is damaged or deformed, replace the hub and bearing assembly.
      • Do not scratch the area where the skid control sensor contacts the hub and bearing assembly.
      • Do not attach foreign matter to the speed sensor rotor.

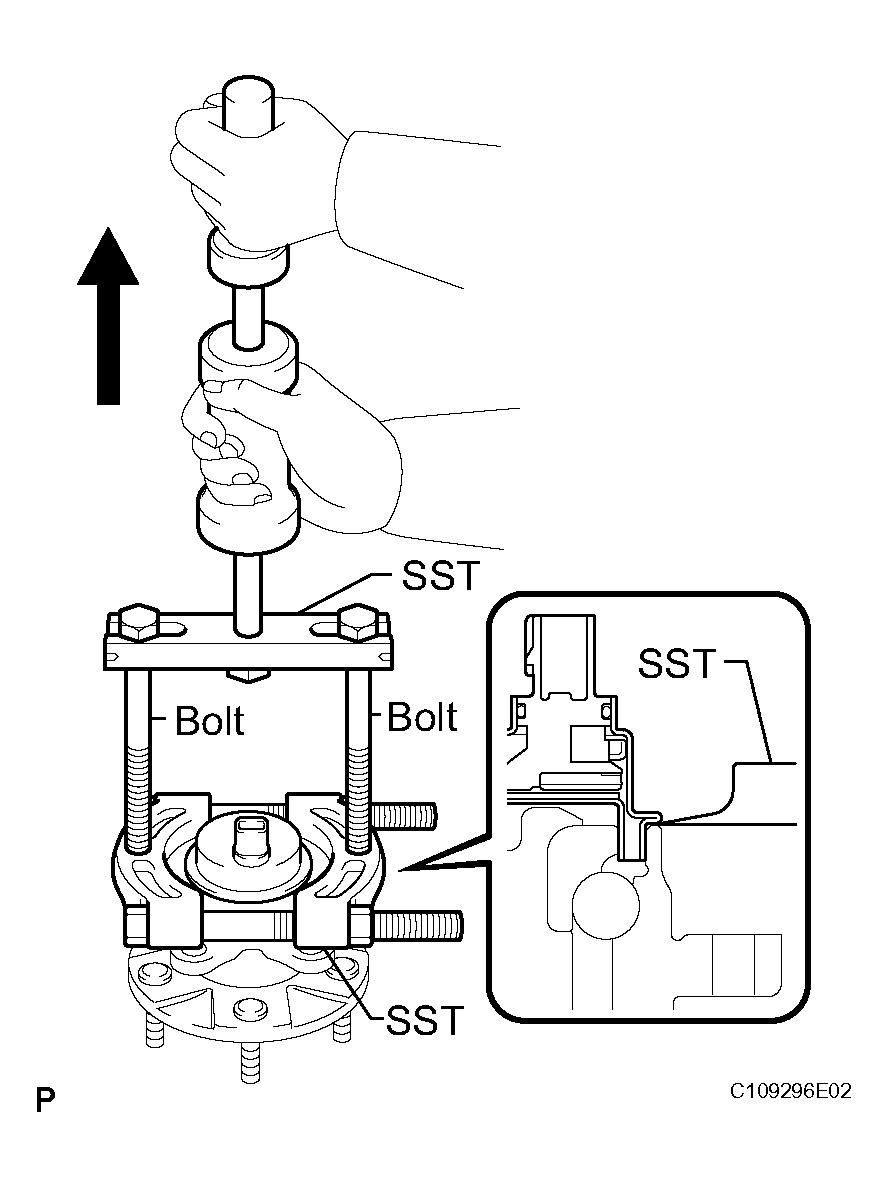

        Fig 2: Identifying Skid Control Sensor From Hub And Bearing Assembly Using SST And 2 Bolts (90101-12007)

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
