TS and CG Terminal Circuit: Wiring Diagram

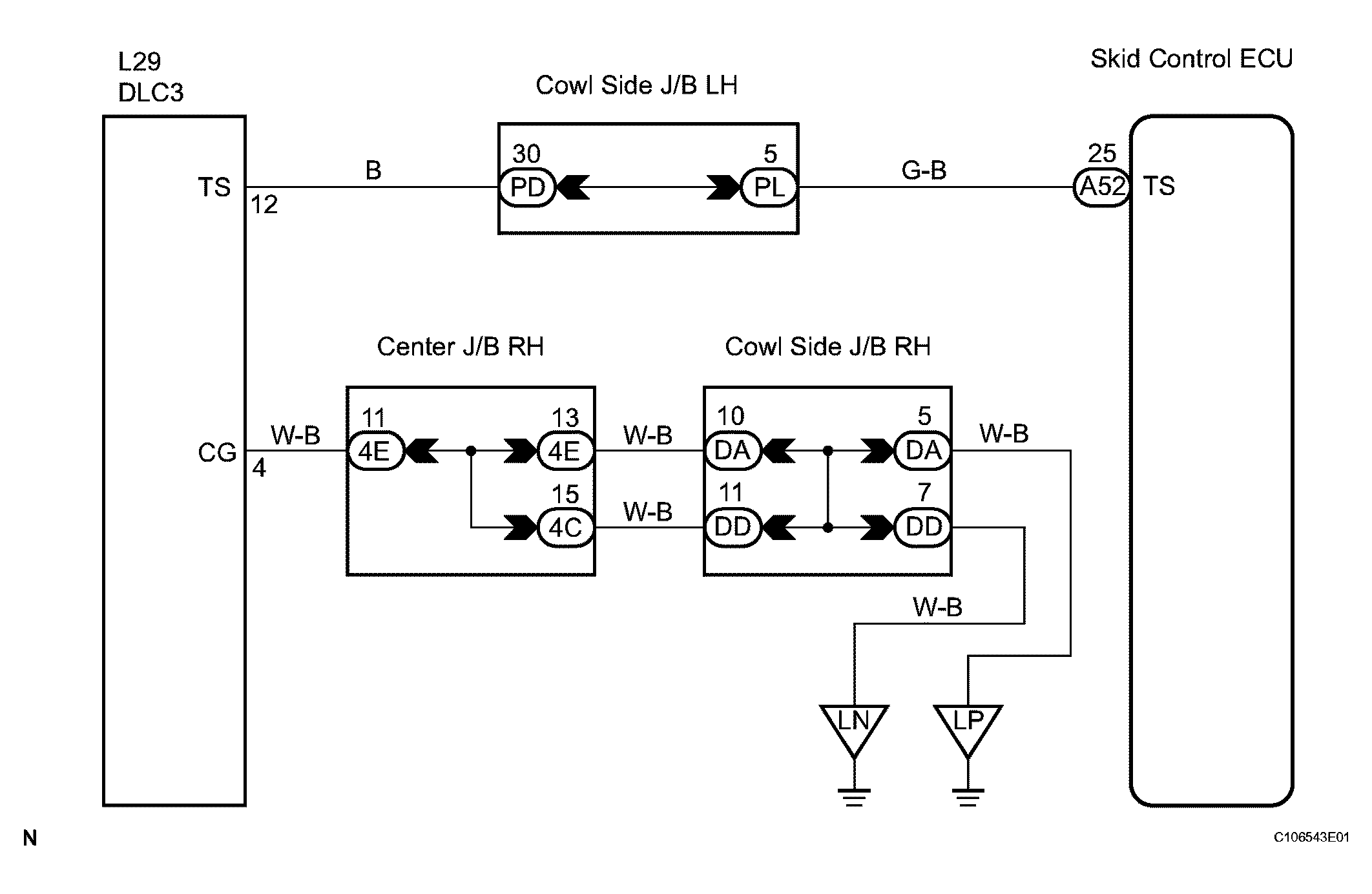

Fig 1: Identifying TS And CG Terminal Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve calibration (See CHECK FOR INTERMITTENT PROBLEMS ).

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU TO DLC3 (TS))

Measure the resistance according to the value(s) in the table below.

Resistance

TESTER CONNECTION AND SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
A52-25 (TS) - L29-12 (TS)	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

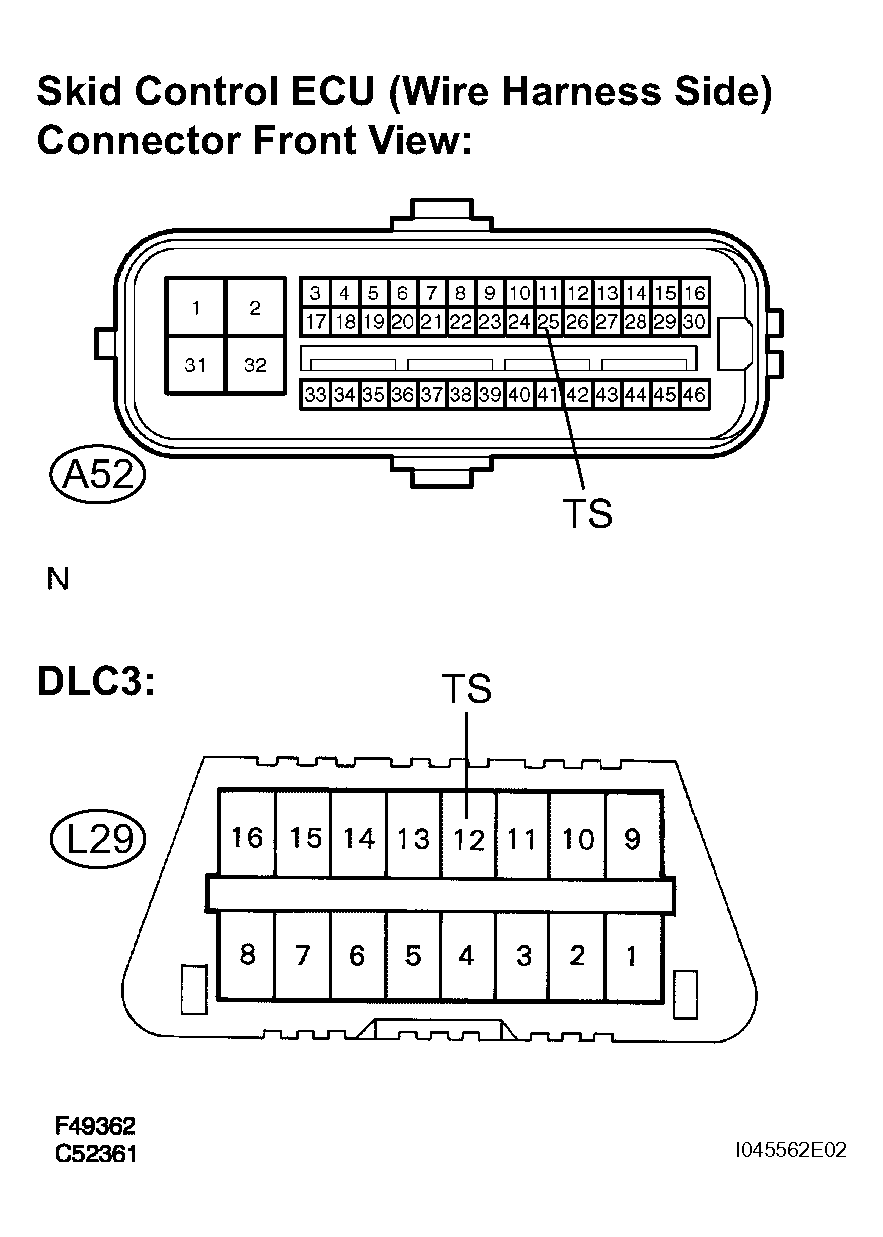

Fig 2: Identifying Harness And Connector - (Skid Control ECU To Dlc3 (TS))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to Next Step

CHECK HARNESS AND CONNECTOR (DLC3 (CG) TO BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Resistance

TESTER CONNECTION AND SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
L29-4 (CG) - Body ground	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

Fig 3: Identifying Connector Of DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to Next Step

CHECK HARNESS AND CONNECTOR (DLC3 (TS) TO BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Resistance

TESTER CONNECTION AND SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
L29-12 (TS) - Body ground	10 kΩ or higher

HINT:

If troubleshooting has been carried out according to the PROBLEM SYMPTOMS TABLE .

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

Fig 4: Identifying Connector Of (DLC3 (TS)

OK : REPLACE SKID CONTROL ECU
