Radio Receiver: Removal

  1. SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE
    1. Remove all discs and tapes.
      NOTE: If the discs or tapes cannot removed, do not attempt to remove them forcibly. Send the unit to a repair shop.
    2. Turn the engine switch off.
    3. While simultaneously pressing the "SEEK UP" and "DISC" switches, turn the engine switch on (ACC).
      Fig 1: Identifying "SEEK UP" Switch
      G04022187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The CD loading door indicator light blinks during mode setting and it remains lit after the setting is completed.

    4. Turn the engine switch off.
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. REMOVE FRONT CONSOLE UPPER PANEL GARNISH (See  REMOVAL  )
  4. REMOVE CONSOLE UPPER PANEL ASSEMBLY (See  REMOVAL  )
  5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH (See  REMOVAL  )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL END RH (See  REMOVAL  )
    Fig 2: Identifying CD Loading Door Indicator Light Blinking
    G04022188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY
    1. Remove the 4 bolts.

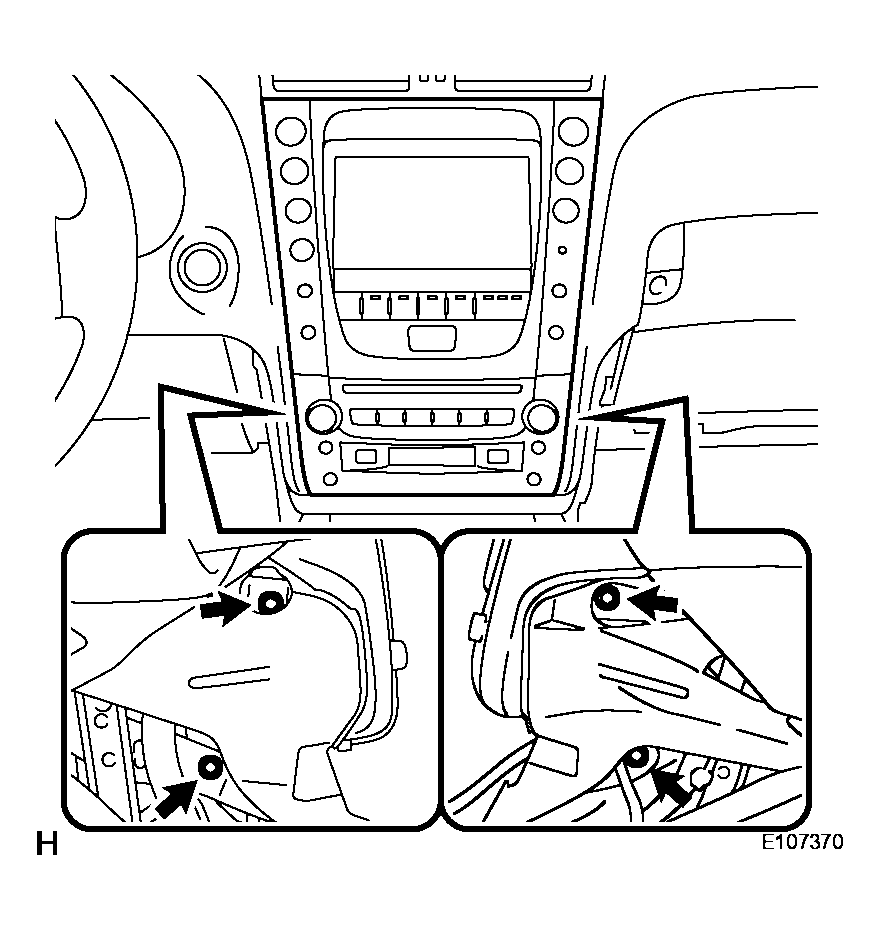

      Fig 3: Identifying 4 Bolts
      G04022189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the multi-display with radio receiver to detach the 2 clips on the backside of the multi-display.
    3. Disconnect the connectors and remove the multi-display with radio receiver.

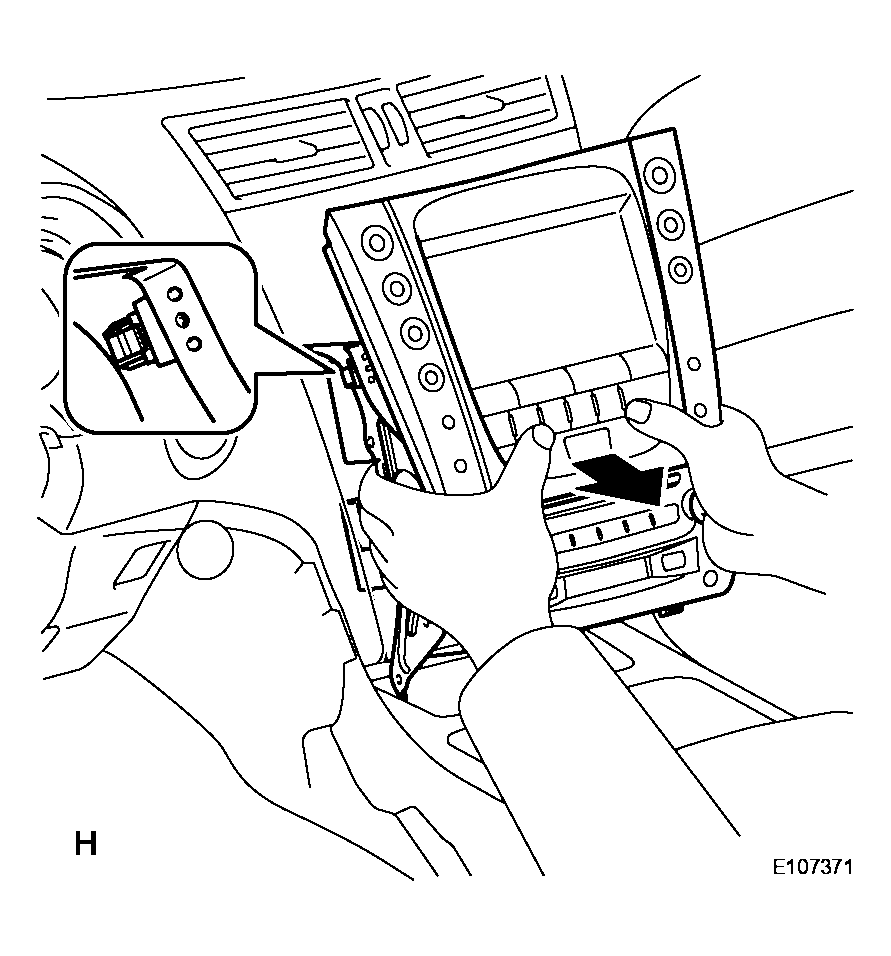

      Fig 4: Pulling Multi-Display With Radio Receiver To Detaching 2 Clips On Backside Of Multi-Display
      G04022190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CONFIRM RADIO RECEIVER ASSEMBLY SHIPMENT MODE SETTING
    1. Look at the backside of the radio receiver and check that a metal plate can be seen through the hole near the "SHIP" mark.
      NOTE: If a metal plate cannot be seen, perform the shipment mode setting again.
      Fig 5: Confirming Radio Receiver Assembly Shipment Mode Setting
      G04022191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 RADIO BRACKET
    1. Remove the 5 bolts and bracket.
      Fig 6: Identifying No. 2 Radio Bracket
      G04022192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 RADIO BRACKET
    1. Remove the 5 bolts and bracket.
  11. REMOVE MULTI-DISPLAY
  12. REMOVE RADIO RECEIVER ASSEMBLY
    Fig 7: Identifying No. 1 Radio Bracket
    G04022193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
