Parts Location

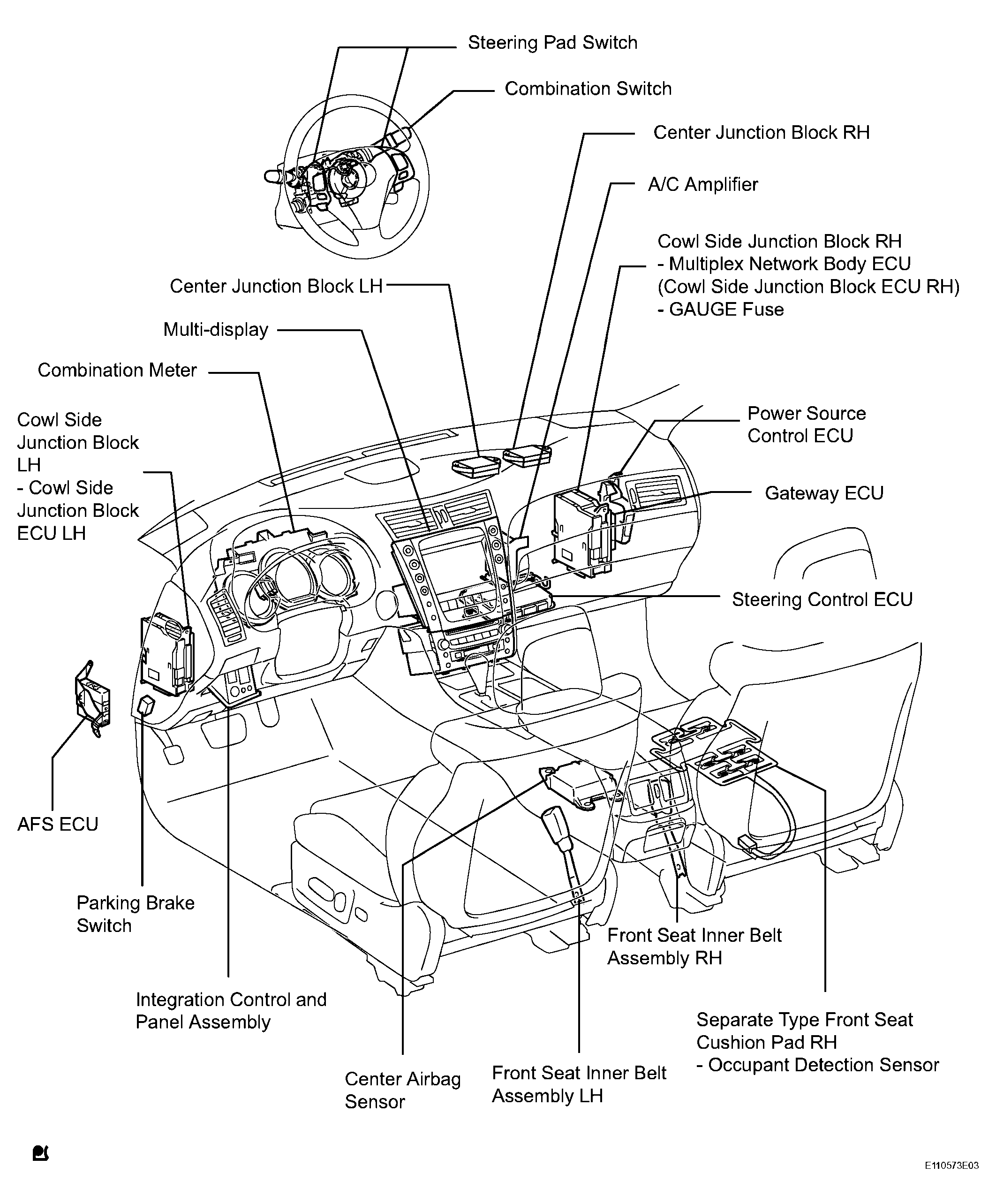

Fig 1: Identifying Meter / Gauge System Parts Location (1 Of 3)
G04022024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

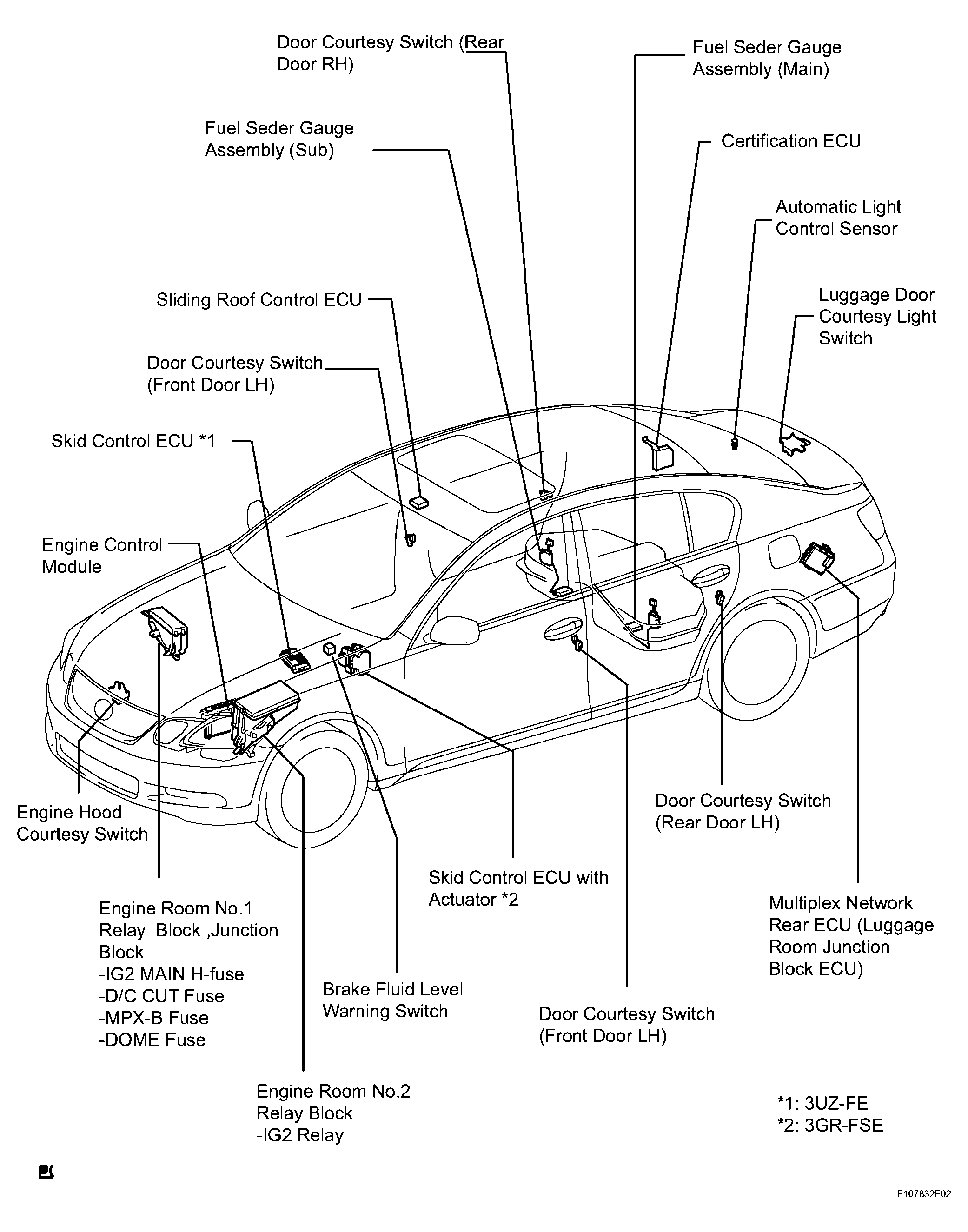

Fig 2: Identifying Meter / Gauge System Parts Location (2 Of 3)
G04022025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

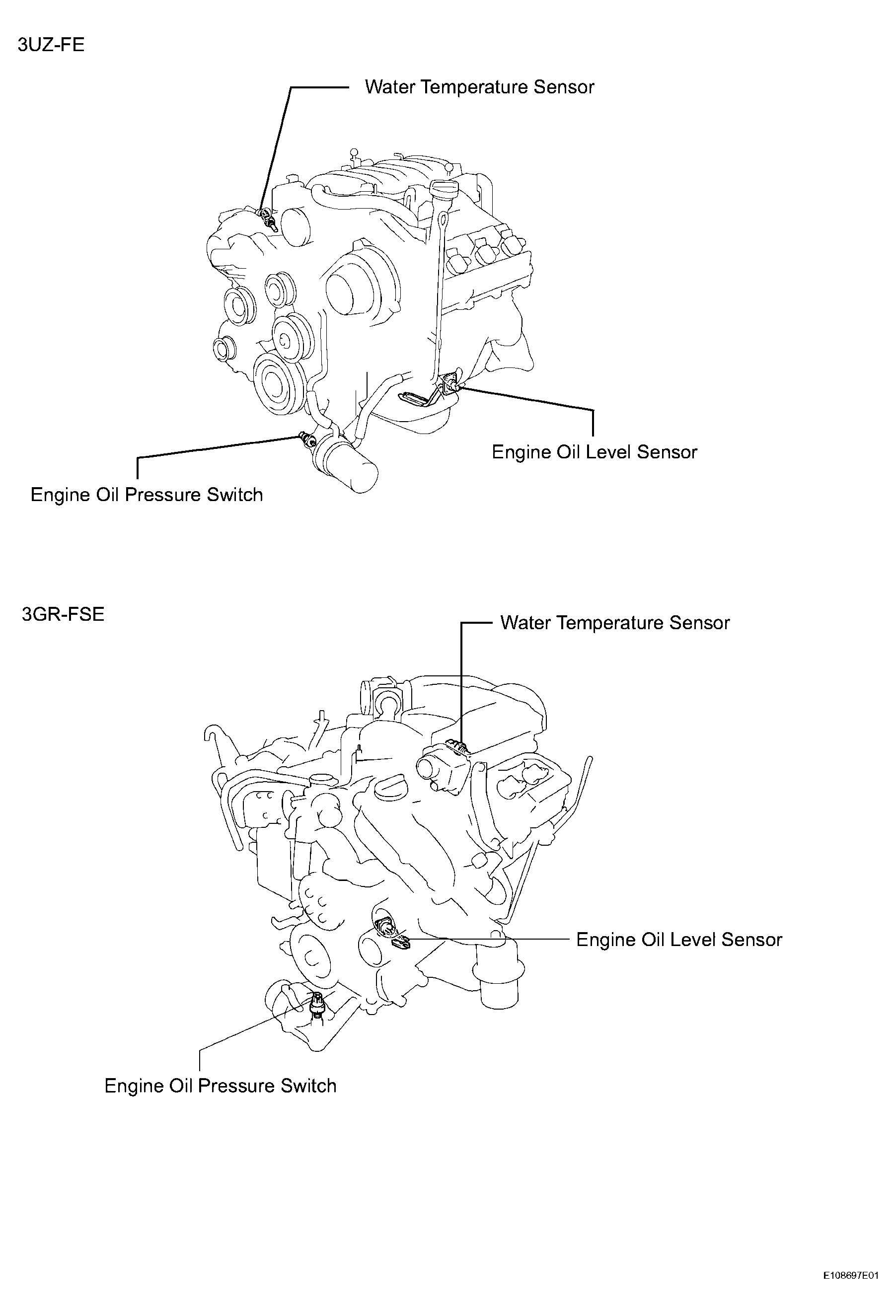

Fig 3: Identifying Meter / Gauge System Parts Location (3 Of 3)
G04022026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
