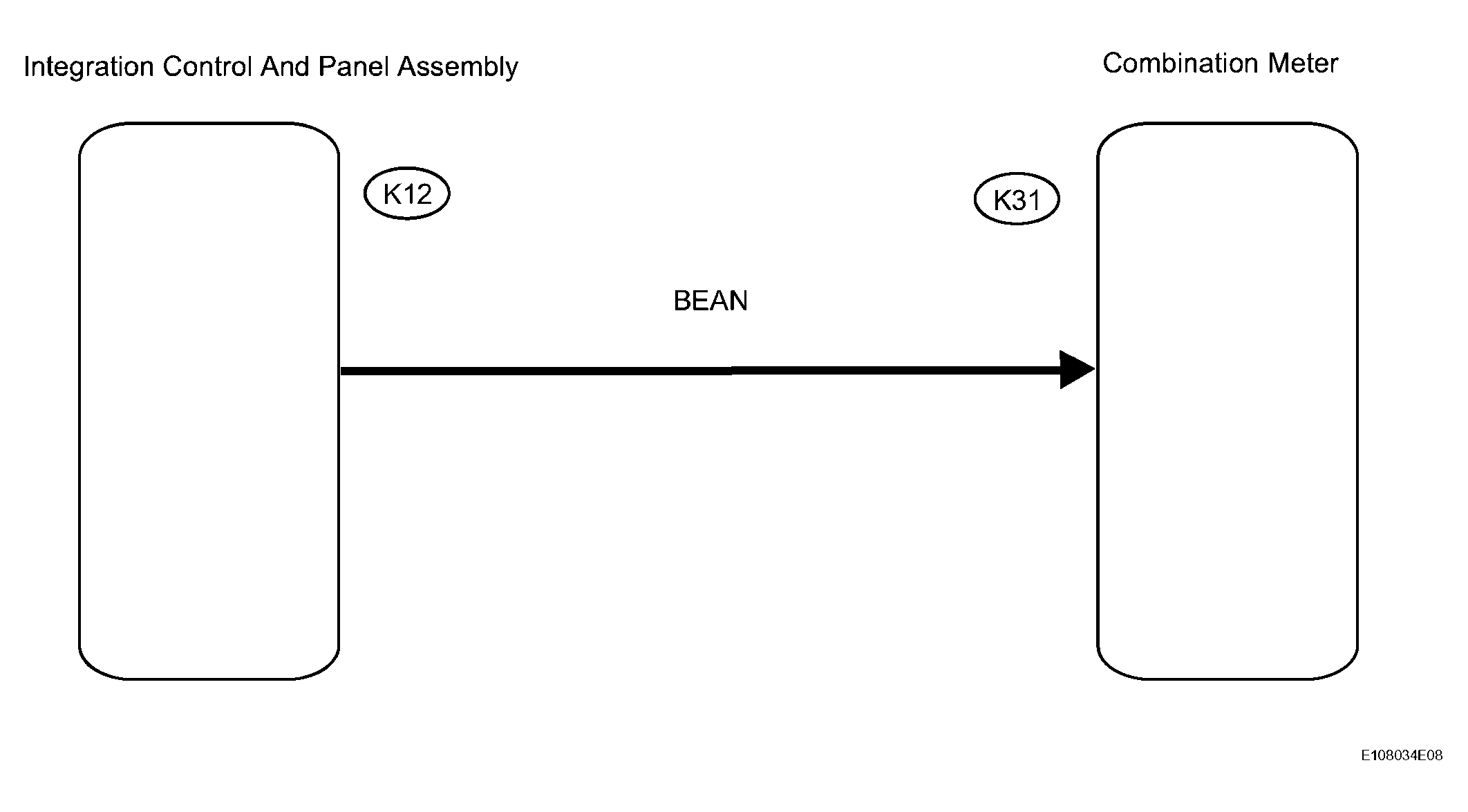

Operating Light Control Rheostat does not Change Light Brightness: Wiring Diagram
- CHECK MULTIPLEX COMMUNICATION SYSTEM
Please follow these pages (See HOW TO PROCEED WITH TROUBLESHOOTING ).
If the multiplex communication system is operating normally, proceed to the next step.
NEXT
- READ VALUE OF INTELLIGENT TESTER
- Operate the intelligent tester according to the display and select the "Data List".
Integration control and panel assembly
ITEM CONDITION CHARTItem Measurement Item / Range (Display) Normal Condition Diagnostic Note RHEOSTAT UP SWITCH Rheostat Up switch/ ON or OFF ON: Switch is pushed OFF: Switch is not pushed - RHEOSTAT DOWN SWITCH Rheostat Down switch/ ON or OFF ON: Switch is pushed OFF: Switch is not pushed - OK : Switch condition (ON/OFF) can be switched by actual operation.
NG : REPLACE INTEGRATION CONTROL AND PANEL ASSEMBLY
OK : REPLACE COMBINATION METER
