Malfunction in ODO / Trip Switch: Wiring Diagram

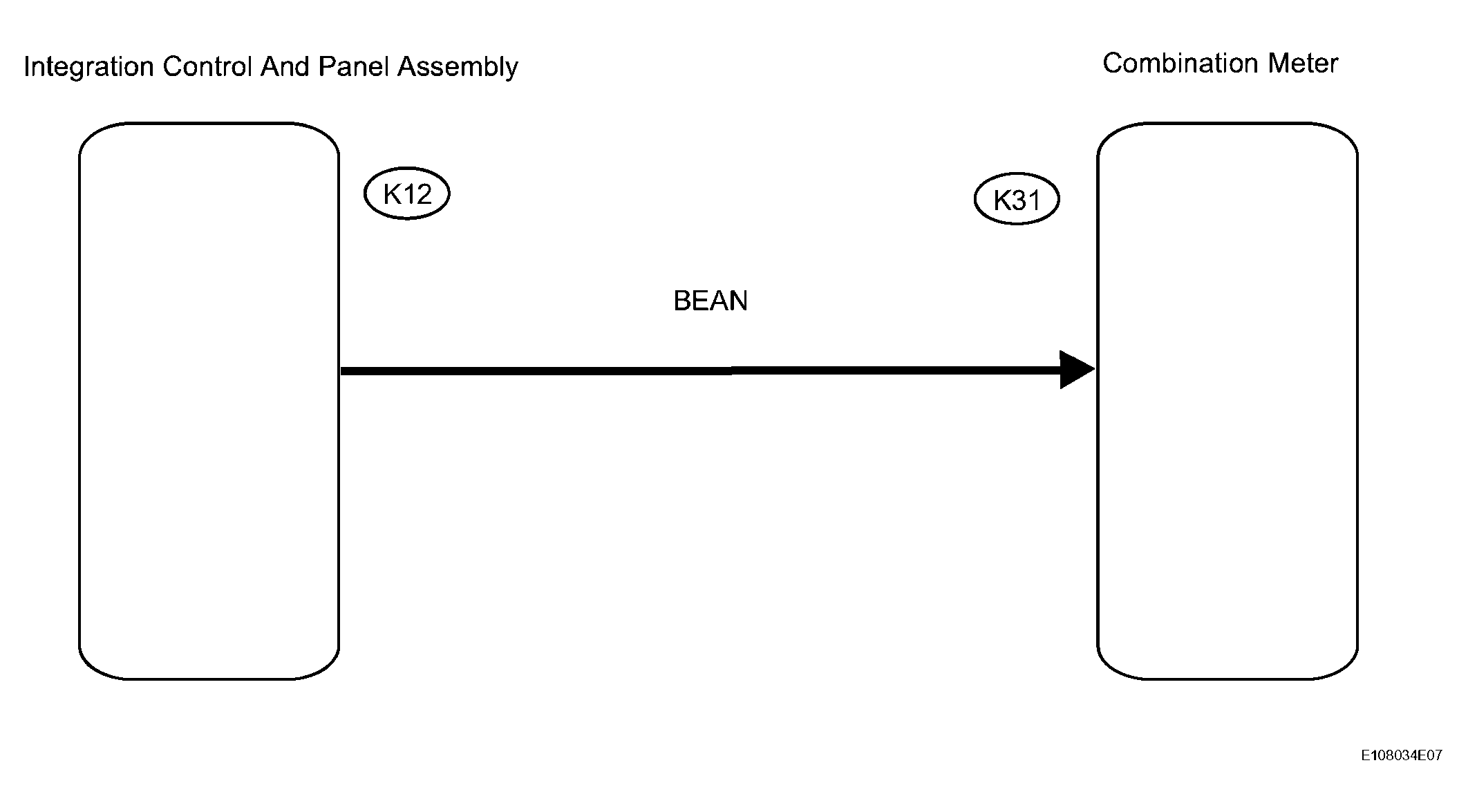

Fig 1: Malfunction In ODO / Trip Switch - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK MULTIPLEX COMMUNICATION SYSTEM
Please follow these pages (see HOW TO PROCEED WITH TROUBLESHOOTING ). If the multiplex communication system is operating normally, proceed to the next step.

Next

READ VALUE OF INTELLIGENT TESTER

Operate the intelligent tester according to the display and select the "Data List".

Integration control and panel assembly

ITEM CONDITION CHART

Item	Measurement Item / Range (Display)	Normal Condition	Diagnostic Note
ODO/TRIP SW	ODO/TRIP switch/ ON or OFF	ON: Switch is pushed OFF: Switch is not pushed	-
TRIP RESET SW	TRIP RESET switch/ON or OFF	ON: Switch is pushed OFF: Switch is not pushed	-

OK : Switch condition (ON/OFF) can be switched by actual operation.

NG : REPLACE INTEGRATION CONTROL AND PANEL ASSEMBLY

OK : REPLACE COMBINATION METER
