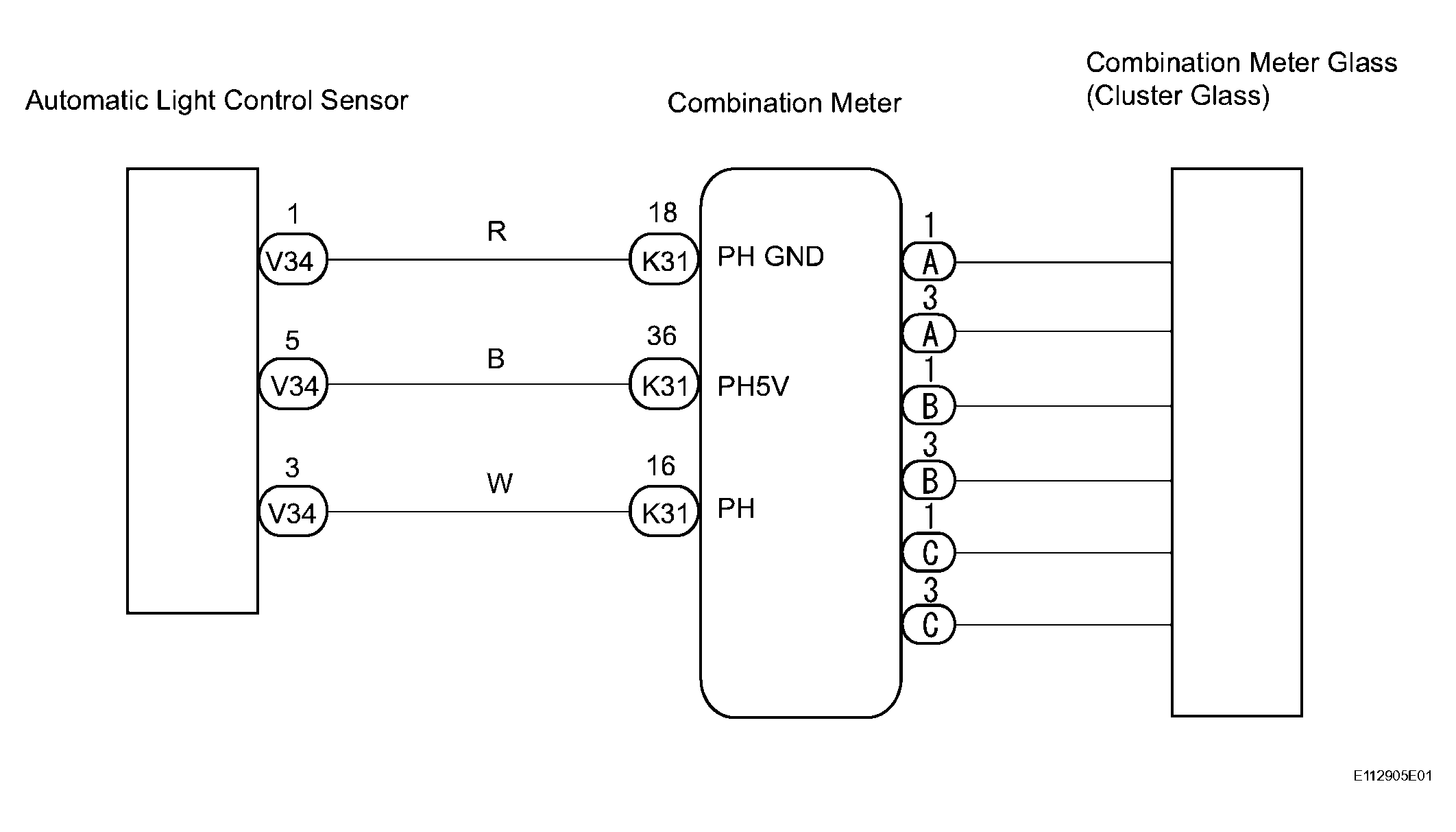

Cluster Glass does not Become Tinted: Wiring Diagram
- PERFORM ACTIVE TEST BY INTELLIGENT TESTER
- Cover the automatic light control sensor with a cloth to prevent it from sensing.
- Operate the intelligent tester according to the display and select the "Active Test".
Combination meter
COMBINATION METER SPECIFICATIONItem Test Details Diagnostic Note ECD ON INDIC Indicat. ECD ON (OFF/ON) - OK : Cluster glass becomes tinted (minimum value) when the Active Test is ON.
NG : Go to step 5
OK : GO TO NEXT STEP
- READ VALUE OF INTELLIGENT TESTER
- Operate the intelligent tester according to the display and select the "Data List".
Combination meter
COMBINATION METER SPECIFICATIONItem Measurement Item/ Range (Display) Normal Condition Diagnostic Note ECD Sunlight Sensor ECD sunlight sensor input value/Min.: 0, Max.: 255 Between 50 to 70 Light is not shined on automatic light control sensor Between "light is not shined on automatic light control sensor" value and 195*1 Shine light on automatic light control sensor HINT:
*1: The value changes according to the intensity of the light.
OK : REPLACE COMBINATION METER
NG : GO TO NEXT STEP

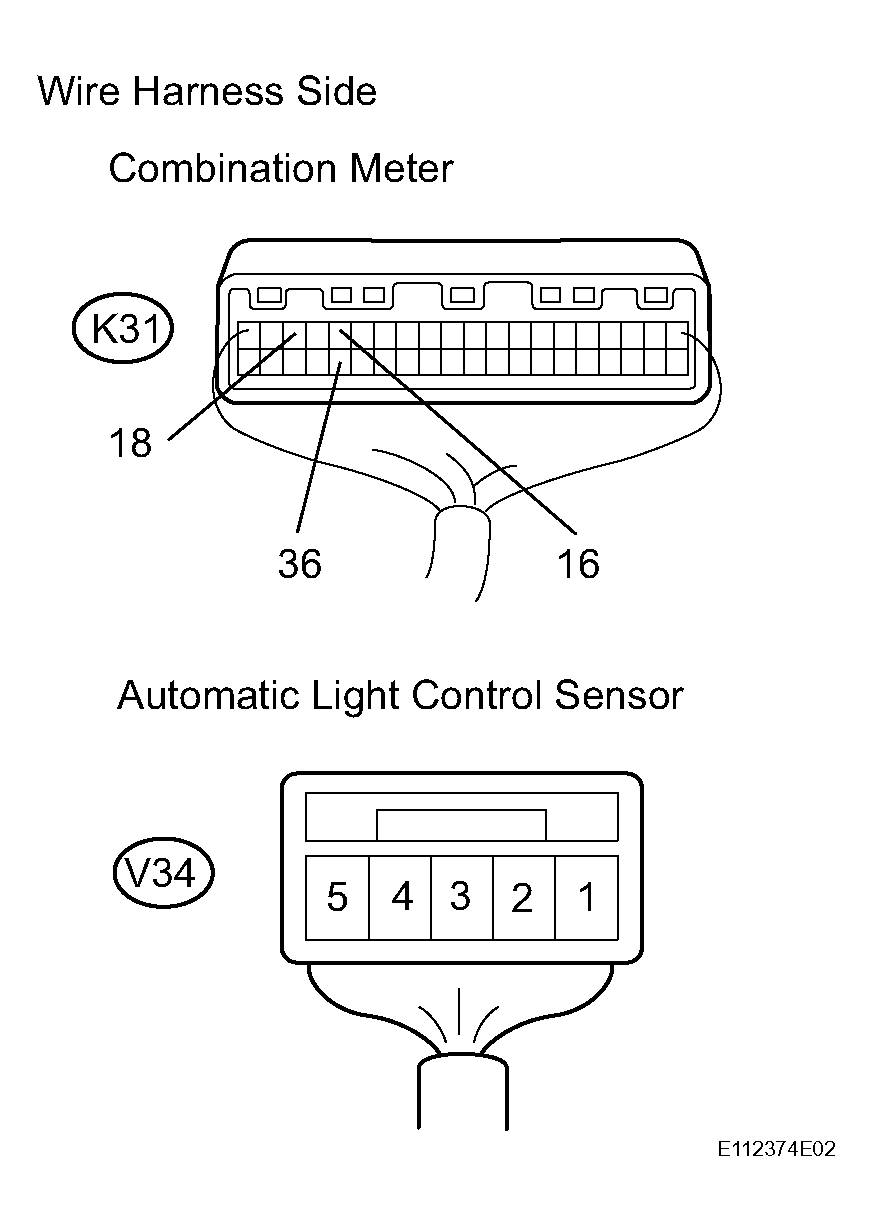

- CHECK HARNESS AND CONNECTOR (COMBINATION METER - AUTOMATIC LIGHT CONTROL SENSOR)
- Disconnect the K31 connector.
- Disconnect the V34 automatic light control sensor connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
STANDARD RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition K31-36 - V34-5 Always Below 1 Ω K31-16 - V34-3 Always Below 1 Ω K31-18 - V34-1 Always Below 1 Ω K31-16 - V34-5 Always 10 kΩ or higher K31-16 - V34-1 Always 10 kΩ or higher K31-16 - Body ground Always 10 kΩ or higher K31-18 - Body ground Always 10 kΩ or higher NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK : GO TO NEXT STEP
- INSPECT COMBINATION METER
- Connect the K31 connector to the combination meter.

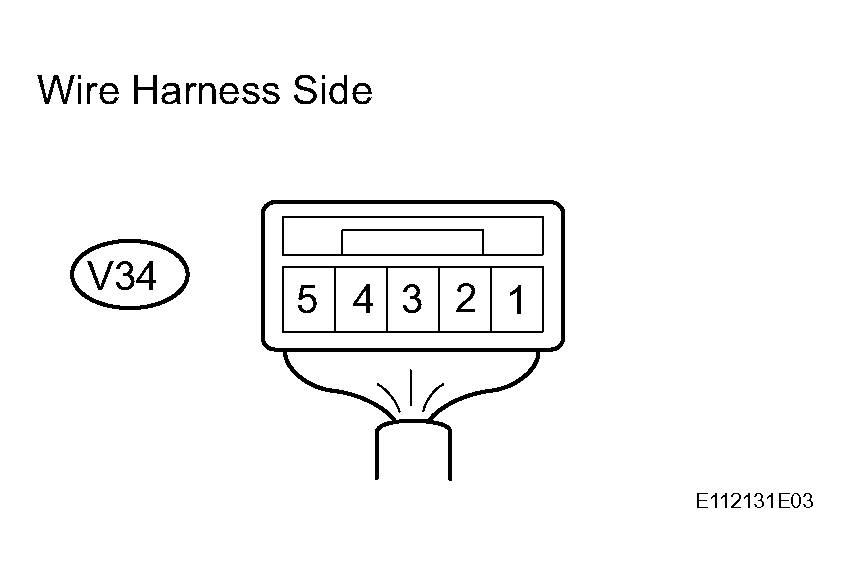

- Disconnect the V34 automatic light control sensor connector.
- Measure the resistance of the wire harness side connector.
Standard resistance
STANDARD RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition V34-3 - V34-5 Always 275 to 325 Ω - Measure the voltage of the wire harness side connector.
Standard voltage
STANDARD VOLTAGE SPECIFICATIONTester Connection Condition Specified Condition V34-1 - V34-5 Engine switch on (IG) 4.6 to 5.4 V
NG : REPLACE COMBINATION METER
OK : REPLACE AUTOMATIC LIGHT CONTROL SENSOR
- INSPECT COMBINATION METER

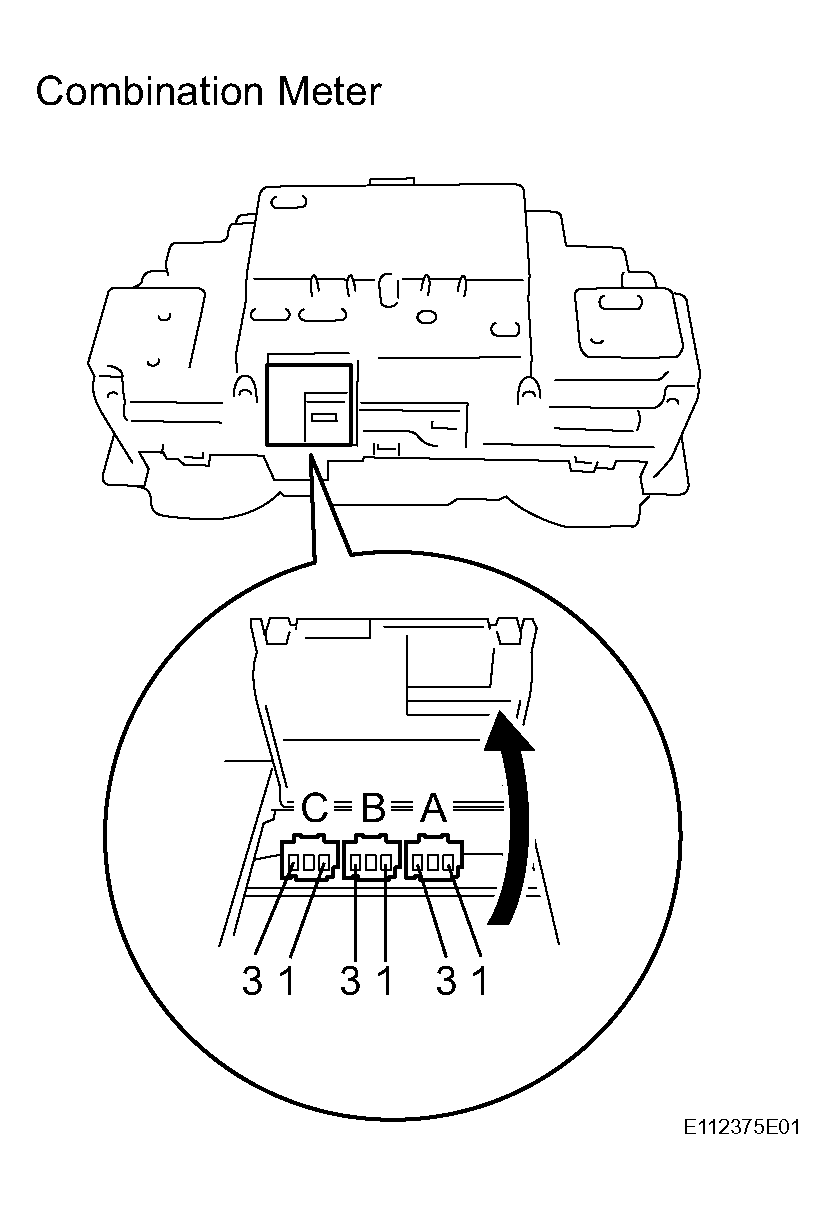

- Disconnect the connectors labeled A, B and C in the illustration.
- Measure the voltage of the wire harness side connector on the combination meter.
Standard voltage
STANDARD VOLTAGE SPECIFICATIONTester Connection Condition Specified Condition A-1 - A-3 60 seconds after performing Active Test "Indicate ECD ON" 1.22 to 1.32 V B-1 - B-3 60 seconds after performing Active Test "Indicate ECD ON" 1.22 to 1.32 V C-1 - C-3 60 seconds after performing Active Test "Indicate ECD ON" 1.22 to 1.32 V
NG : REPLACE COMBINATION METER
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK : REPLACE COMBINATION METER GLASS
