Circuit Description

Refer to DTC P0010

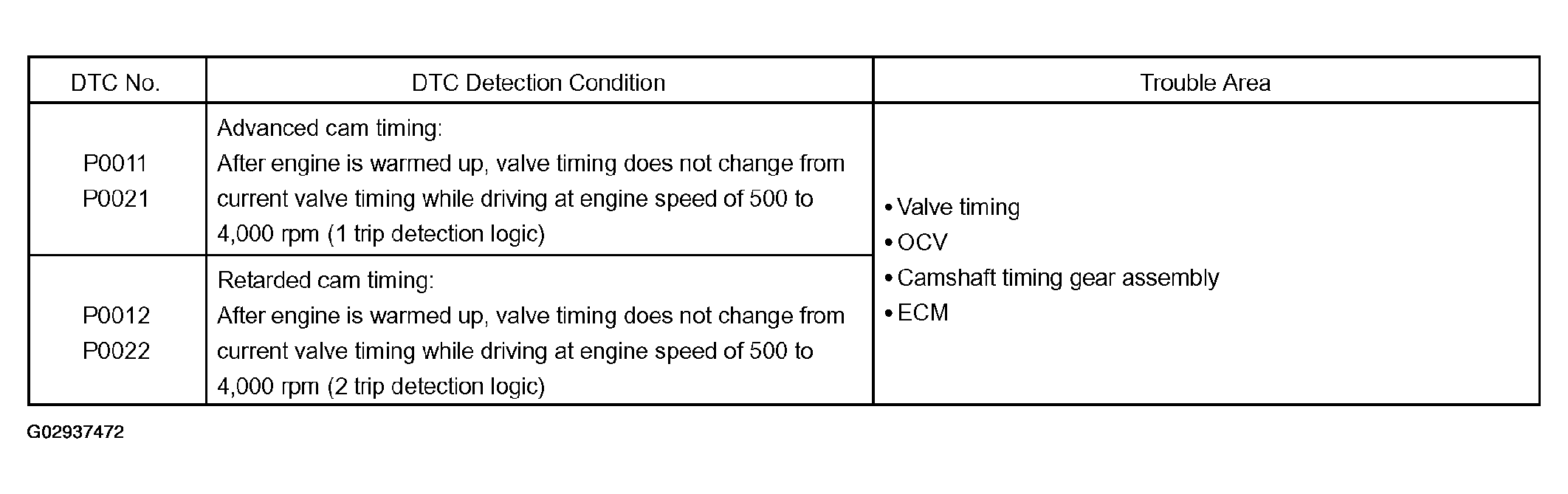

Fig 1: DTC Detecting Condition Trouble Area Table
G02937472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
