Tire & Wheel: Inspection
NOTE:
When disconnecting the negative (-) battery terminal, initialize the following systems after the terminal is reconnected.
SYSTEM REFERENCE
| System Name | Go To |
|---|---|
| Lighting System (Adaptive Front-Lighting System) | INITIALIZATION |
| Power Window Control System | PRE-CHECK |
| Power Back Door System | INITIALIZATION |
| Sliding Roof System | PRE-CHECK |
- INSPECT TIRE
- Check the tires for wear and proper inflation pressure.
Cold tire inflation pressure:

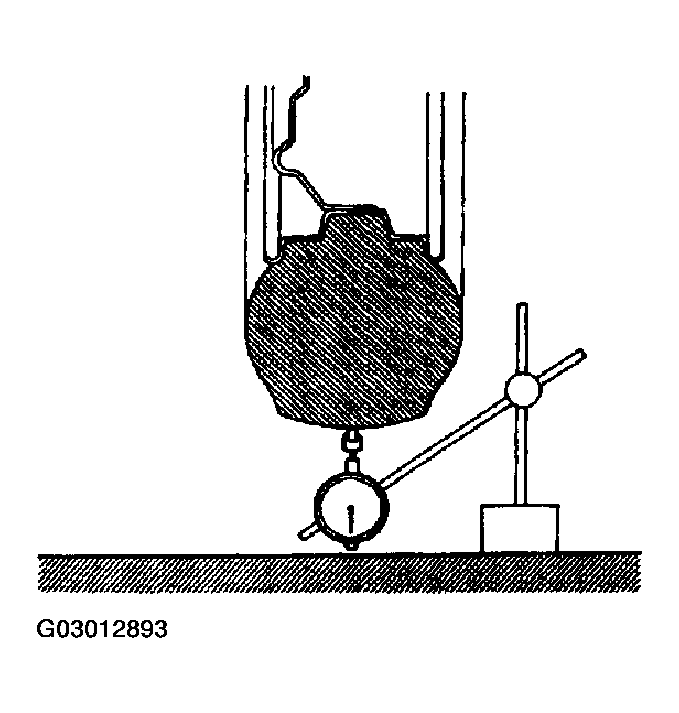

COLD TIRE INFLATION PRESSURE SPECIFICATIONSTire size Front kPa (kgf/cm2 , psi) Rear kPa (kgf/cm2 , psi) 225/65R17 101S P235/55R18 99V 210 (2.1,30) 210 (2.1,30) - Using a dial indicator, check the tire runout.
Tire runout: 1.0 mm (0.039 in.) or less
- Check the tires for wear and proper inflation pressure.
- ROTATE TIRE
HINT:
- Rotate tires as shown in the illustration.
- Rotate as shown in (A) if the spare tire is included in the rotation.
- INSPECT WHEEL BALANCE
- Check and adjust the Off-the-car balance.
- If necessary, check and adjust the On-the-car balance.
Imbalance after adjustment: 8.0 g (0.018 lb) or less
- INSPECT BEARING BACKLASH (FRONT)
- INSPECT BEARING BACKLASH (REAR)
- INSPECT AXLE HUB DEVIATION (FRONT)
- INSPECT AXLE HUB DEVIATION (REAR)
