Instrument Panel Air Bag ASSY Lower No.1: Replacement

  1. (SEE  PRECAUTION  )
  2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  PRECAUTION  )
  3. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (SEE  REPLACEMENT  )
  4. REMOVE INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1
    1. Remove the clamp.
    2. Using a screwdriver, disconnect the airbag connector.
    3. Remove the 4 bolts and the instrument panel airbag assy lower No.1.

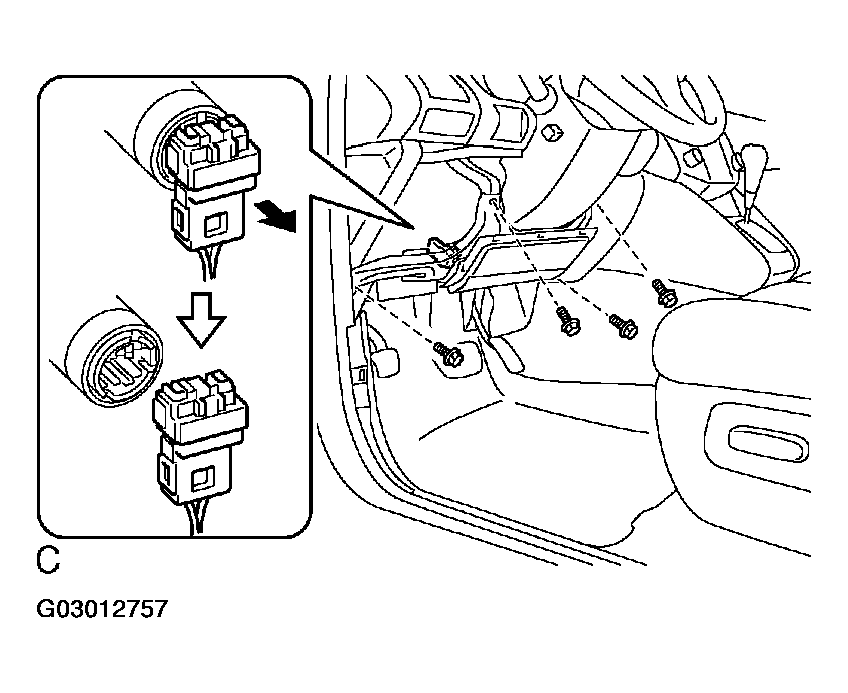

      Fig 1: Disconnecting Airbag Connector
      G03012757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1
    1. Install the instrument panel airbag assy lower No.1 with the 4 bolts.

      Torque: 7.6 N.m (78 kgf.cm, 68 in.lbf)

    2. Connect the airbag connector and install the clamp.

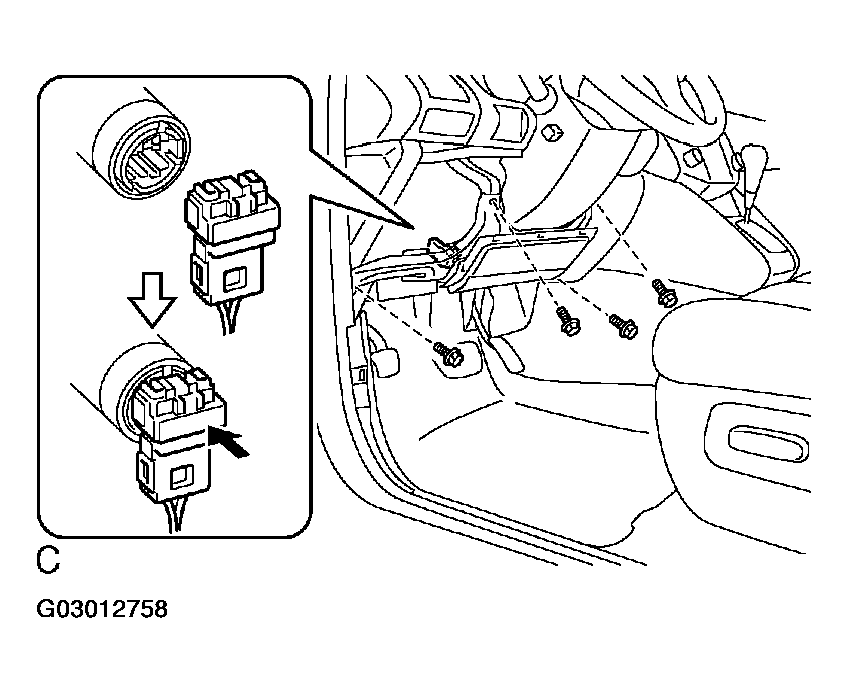

      Fig 2: Installing Airbag Connector
      G03012758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSPECT INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1 (SEE  ON-VEHICLE INSPECTION  )
  7. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
