Problem Symptoms Table

HINT:

Proceed with troubleshooting of each circuit in the table below.

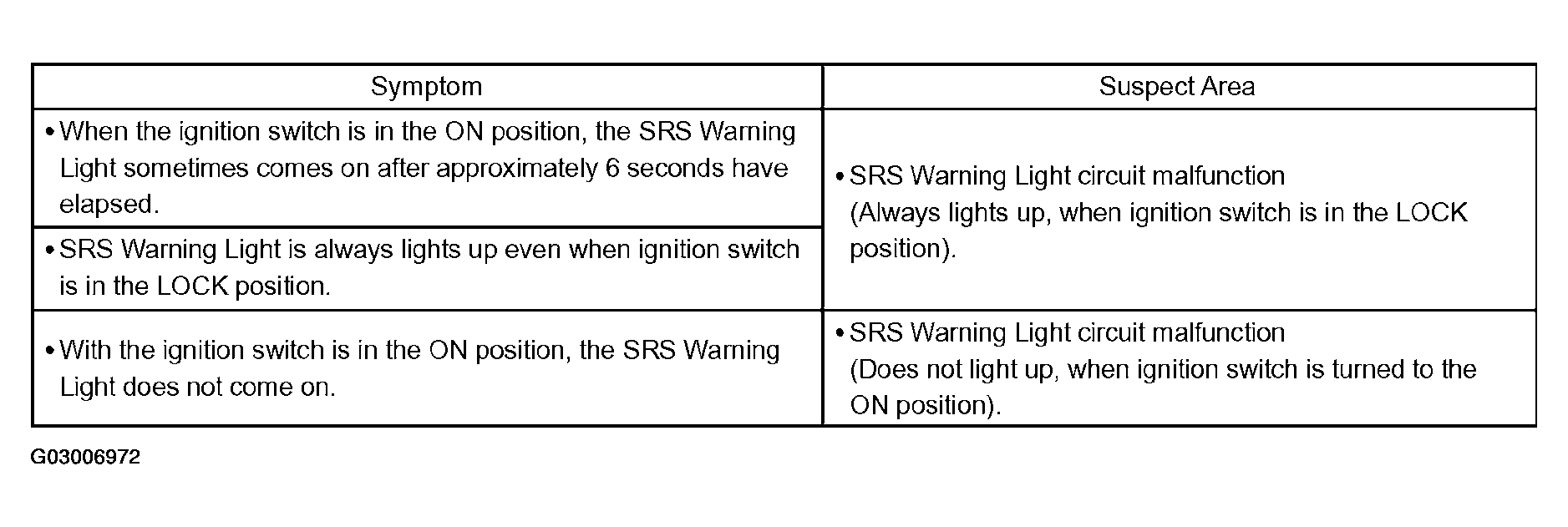

Fig 1: Problem Symptoms Chart

G03006972

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
