Rear Axle Carrier Sub-ASSY LH (4WD): Replacement

HINT:

REAR SUSPENSION COMPONENTS: (See REAR SUSPENSION )

Replace the RH side using the same procedures as for the LH side.

  1. REMOVE REAR WHEEL
  2. SEPARATE SPEED SENSOR REAR LH
    1. Remove the bolt and separate the speed sensor from the axle carrier.
      NOTE:
      • Be careful not to damage the speed sensor.
      • Prevent foreign matter from adhering to the speed sensor.
  3. REMOVE REAR AXLE SHAFT LH NUT
    1. Using SST(s) and a hammer, unstake the staked part of the axle hub LH nut.

      SST 09930-00010

      NOTE: Loosen the staked part of the nut completely, otherwise the screw of the drive shaft may be damaged.
    2. While applying the brakes, remove the lock axle hub LH nut.

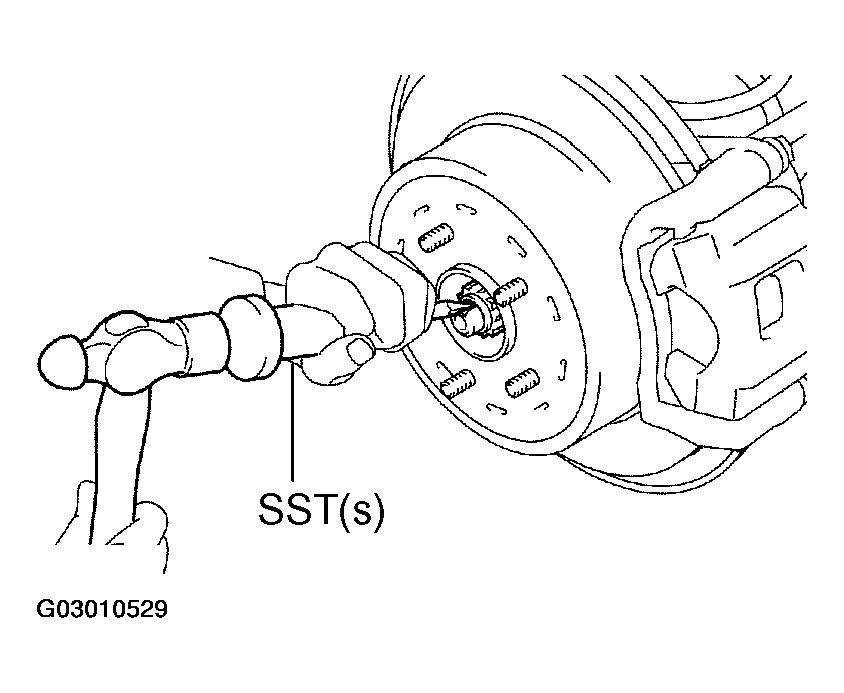

      Fig 1: Removing Rear Axle Shaft LH Nut
      G03010529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. SEPARATE REAR DISC BRAKE CALIPER ASSY LH
    1. Remove the bolt, and separate the flexible hose from the shock absorber.
    2. Remove the 2 bolts and separate rear disc brake caliper assy.
      NOTE: Use a string or other device to keep the brake caliper from hanging down.
      Fig 2: Separating Rear Disc Brake Caliper Assy LH
      G03010530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR DISC
  6. REMOVE REAR AXLE HUB & BEARING ASSY LH
    1. Remove the 4 bolts and the rear axle hub & bearing assy LH.
      Fig 3: Removing Rear Axle Hub & Bearing Assy LH
      G03010531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. SEPARATE HEIGHT CONTROL SENSOR SUB-ASSY REAR (W/AIR SUSPENSION) (See  REAR SUSPENSION ARM ASSY NO. 2 LH (4WD)  )
  8. SEPARATE HEIGHT CONTROL SENSOR SUB-ASSY REAR (W/DISCHARGE HEAD LAMP) (See  HEIGHT CONTROL SENSOR SUB-ASSY REAR RH  ,  HEIGHT CONTROL SENSOR SUB-ASSY REAR RH  )

    HINT:

    Perform the procedure only when removing the RH side.

  9. SEPARATE REAR SUSPENSION ARM ASSY NO. 1 LH
    1. Using a jack, raise the rear axle carrier sub-assy LH, as shown in the illustration.
      Fig 4: Raising Rear Axle Carrier Sub-Assy LH Using Jack
      G03010532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and nut, and separate the rear suspension arm assy No. 1 LH (rear axle carrier side) from the rear axle carrier.

      HINT:

      When removing the bolt, keep the nut from rotating.

      Fig 5: Removing Bolt And Nut
      G03010533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. SEPARATE STRUT ROD ASSY REAR
    1. Remove the bolt and nut, and separate the strut rod assy rear (rear axle carrier side) from rear axle carrier.

      HINT:

      When removing the bolt, keep the nut from rotating.

      Fig 6: Separating Strut Rod Assy Rear
      G03010534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. SEPARATE REAR SUSPENSION ARM ASSY NO. 2 LH
    1. Remove the bolt and nut, and separate the rear suspension arm assy No. 2 LH (rear axle carrier side) from the rear axle carrier.

      HINT:

      When removing the bolt, keep the nut from rotating.

      Fig 7: Separating Rear Suspension Arm Assy No 2 LH
      G03010535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR AXLE CARRIER SUB-ASSY LH
    1. Remove the 2 bolts and 2 nuts, and the rear axle carrier sub-assy LH from the shock absorber.

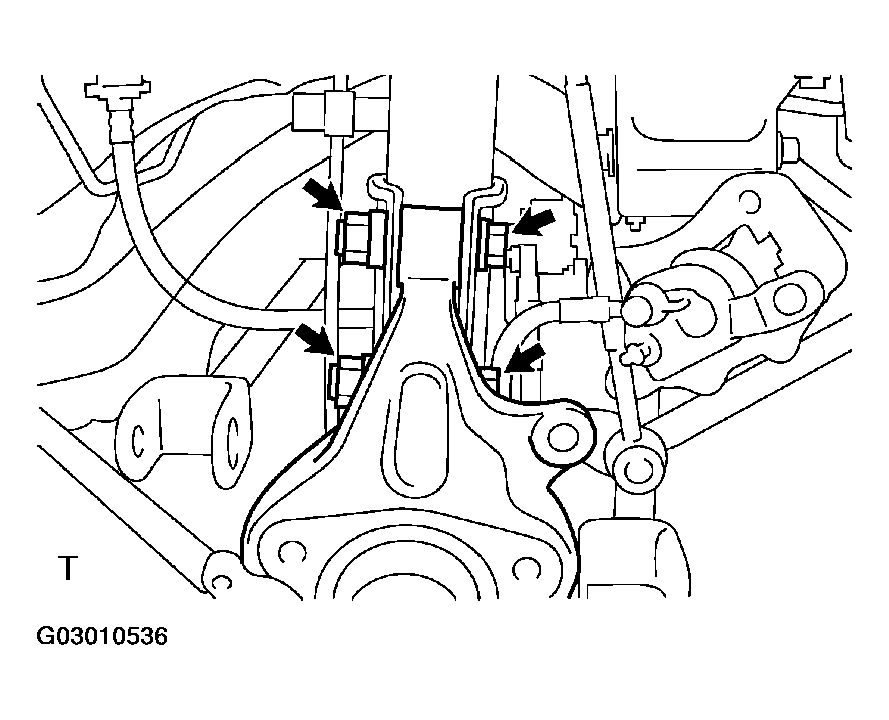

      Fig 8: Removing Rear Axle Carrier Sub-Assy LH
      G03010536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL REAR AXLE CARRIER SUB-ASSY LH
    1. Install the rear axle carrier sub-assy LH with the 2 bolts and nuts.

      Torque: 180 N.m (1,840 kgf.cm, 133 ft.lbf)

      HINT:

      Insert the bolt from the rear side of the vehicle and temporarily install the nut to the shock absorber.

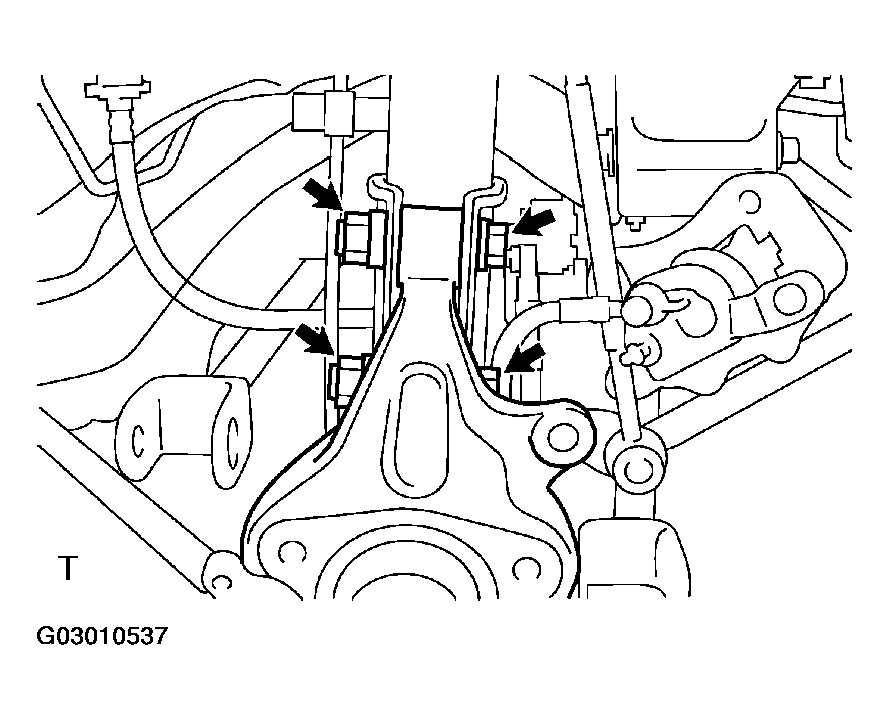

      Fig 9: Installing Rear Axle Carrier Sub-Assy LH
      G03010537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY NO. 2 LH
    1. Temporarily tighten the rear suspension arm assy No. 2 LH with the bolt and nut.

      HINT:

      Insert the bolt from the rear side of the vehicle and lightly tighten the bolt.

      Fig 10: Tightening Rear Suspension Arm Assy No. 2 LH
      G03010538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. TEMPORARILY TIGHTEN STRUT ROD ASSY REAR
    1. Temporarily tighten the strut rod assy rear with the bolt and nut.

      HINT:

      Insert the bolt from the inside of the vehicle and lightly tighten the bolt.

      Fig 11: Tightening Strut Rod Assy Rear
      G03010539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY NO. 1 LH
    1. Temporarily tighten the rear suspension arm assy No. 1 LH with the bolt and nut.

      HINT:

      Insert the bolt from the front side of the vehicle and lightly tighten the bolt.

      Fig 12: Tightening Rear Suspension Arm Assy No. 1 LH
      G03010540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR (W/AIR SUSPENSION) (See  REAR SUSPENSION ARM ASSY NO. 2 LH (4WD)  )
  18. INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR (W/DISCHARGE HEAD LAMP) (See  HEIGHT CONTROL SENSOR SUB-ASSY REAR RH  ,  HEIGHT CONTROL SENSOR SUB-ASSY REAR RH  )

    HINT:

    Perform the procedure only when installing the RH side.

  19. INSTALL REAR AXLE HUB & BEARING ASSY LH
    1. Install the rear axle hub & bearing assy LH with the 4 bolts.

      Torque: 75 N.m (765 kgf.cm, 55 ft.lbf)

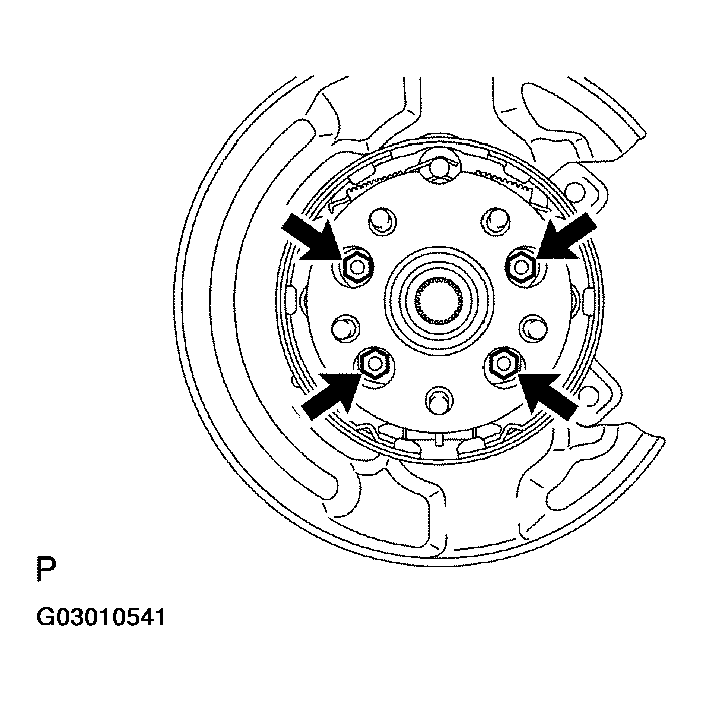

      Fig 13: Installing Rear Axle Hub & Bearing Assy LH
      G03010541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSPECT BEARING BACKLASH (See  ON-VEHICLE INSPECTION  )
  21. INSPECT AXLE HUB DEVIATION (See  ON-VEHICLE INSPECTION  )
  22. INSTALL REAR DISC
  23. INSTALL REAR DISC BRAKE CALIPER ASSY LH
    1. Install the rear disc brake caliper assy LH with the 2 bolts.

      Torque: 78 N.m (800 kgf.cm, 58 ft.lbf)

    2. Install the flexible hose with the bolt to the shock absorber.

      Torque: 19 N.m (192 kgf.cm, 14 ft.lbf)

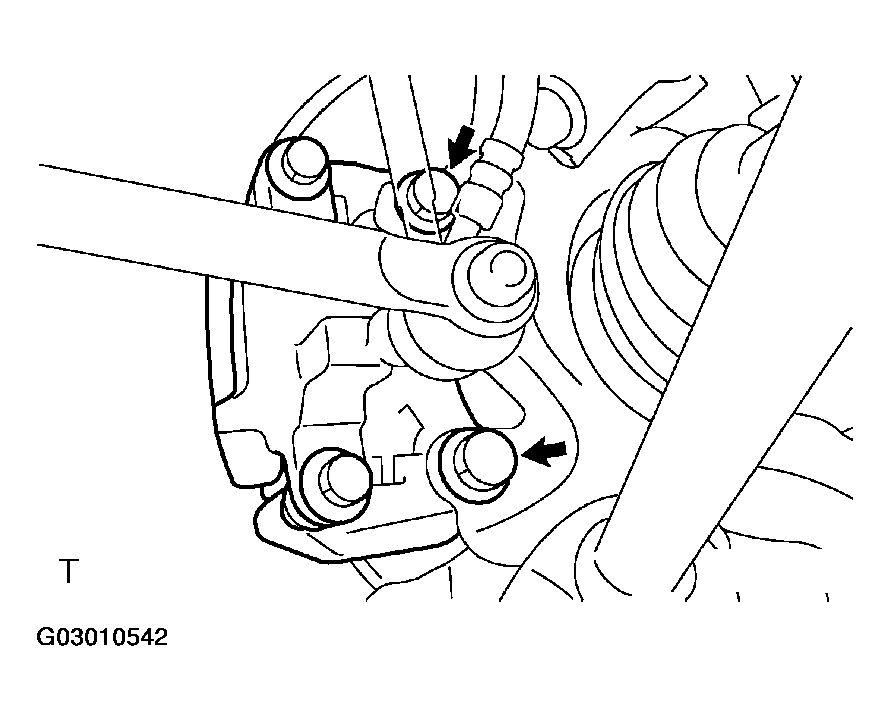

      Fig 14: Installing Rear Disc Brake Caliper Assy LH
      G03010542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL REAR AXLE SHAFT LH NUT
    1. Install a new axle shaft LH nut.

      Torque: 294 N.m, (3,000 kgf.cm, 217 ft.lbf)

    2. Using a chisel and hammer, stake the axle shaft LH nut.

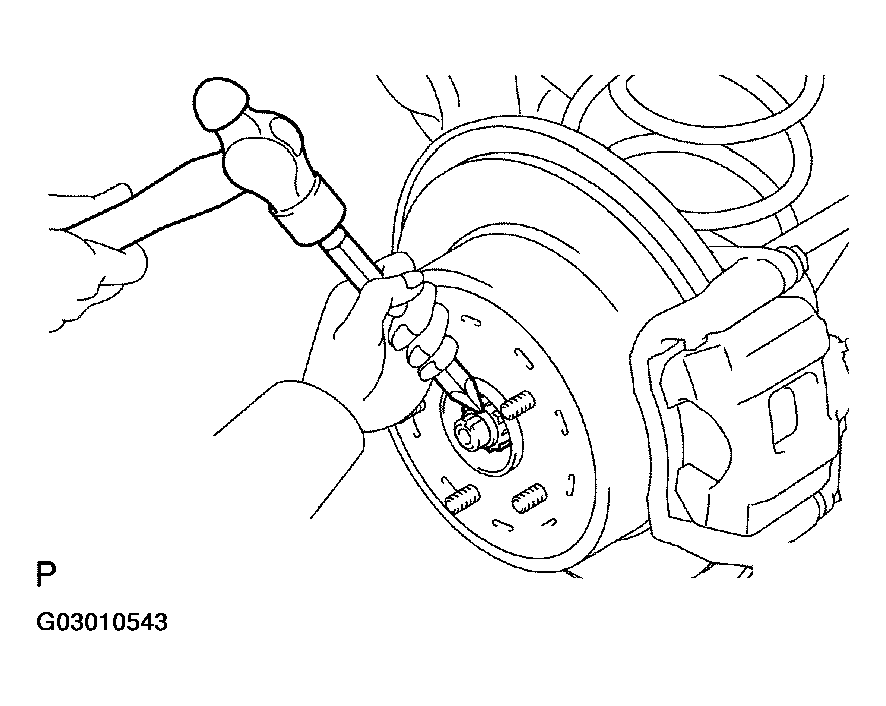

      Fig 15: Installing Rear Axle Shaft LH Nut
      G03010543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL SPEED SENSOR REAR LH
    1. Install the speed sensor with the bolt.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

      NOTE:
      • Be careful not to damage the speed sensor.
      • Prevent foreign matter from adhering to the speed sensor.
      • Do not twist the sensor wire when installing the sensor.
  26. INSTALL REAR WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

  27. STABILIZE SUSPENSION (See  STRUT ROD ASSY REAR  )
  28. FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO. 2 LH (See  REAR SUSPENSION ARM ASSY NO. 2 LH (4WD)  )
  29. FULLY TIGHTEN STRUT ROD ASSY REAR (See  STRUT ROD ASSY REAR  )
  30. FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO. 1 LH (See  REAR SUSPENSION ARM ASSY NO. 1 LH (4WD)  )
  31. INSPECT AND ADJUST REAR WHEEL ALIGNMENT (See  REAR WHEEL ALIGNMENT  )
  32. ADJUST VEHICLE HEIGHT (W/AIR SUSPENSION) (See  PRE-CHECK  ,  PRE-CHECK  )
  33. ADJUST HEADLIGHT AIM ONLY (W/DISCHARGE HEAD LAMP) (See  ADJUSTMENT  ,  ADJUSTMENT  )
  34. CHECK ABS SPEED SENSOR SIGNAL (See  PRE-CHECK  ,  PRE-CHECK  )
