Steering Sensor: Replacement

PRECAUTION (See SUPPLEMENTAL RESTRAINT SYSTEM )
SEPARATE BATTERY NEGATIVE TERMINAL (See SUPPLEMENTAL RESTRAINT SYSTEM )
PLACE FRONT WHEELS FACING STRAIGHT AHEAD
REMOVE HORN BUTTON ASSY (See STEERING COLUMN ASSY (MANUAL TILT) or STEERING COLUMN ASSY (POWER TILT & TELESCOPIC) )
REMOVE STEERING WHEEL ASSY (See STEERING COLUMN ASSY (MANUAL TILT) or STEERING COLUMN ASSY (POWER TILT & TELESCOPIC) )
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
REMOVE STEERING COLUMN COVER (See STEERING COLUMN ASSY (MANUAL TILT) or STEERING COLUMN ASSY (POWER TILT & TELESCOPIC) )
REMOVE SPIRAL CABLE SUB-ASSY (See SPIRAL CABLE SUB-ASSY )
REMOVE STEERING SENSOR
1. Release 6 claw fittings and remove the steering sensor from the spiral cable.

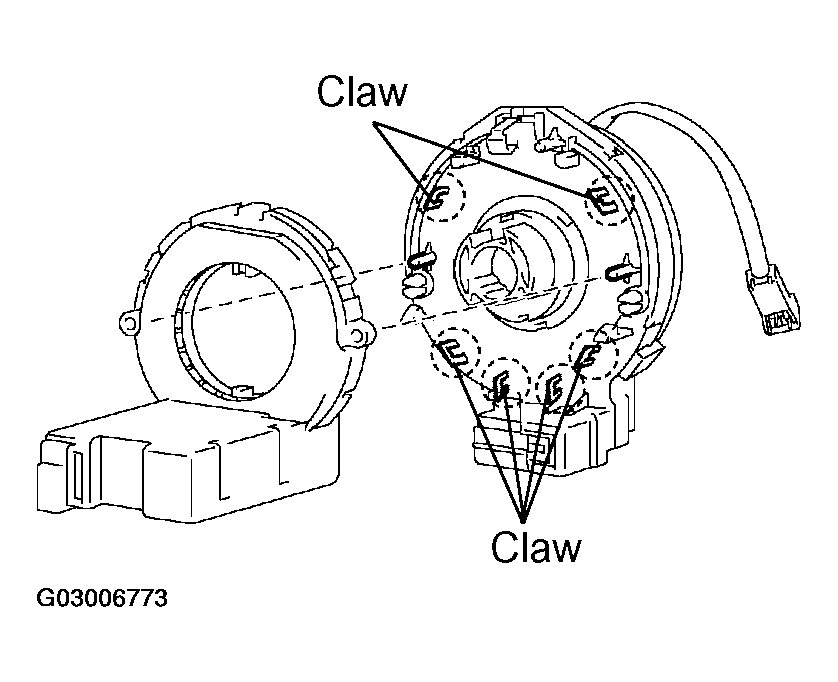

  Fig 1: Removing Steering Sensor From Spiral Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING SENSOR
1. Install the steering sensor to the spiral cable.
  NOTE:
  - Install the claw securely.
  - Do not damage the claw.

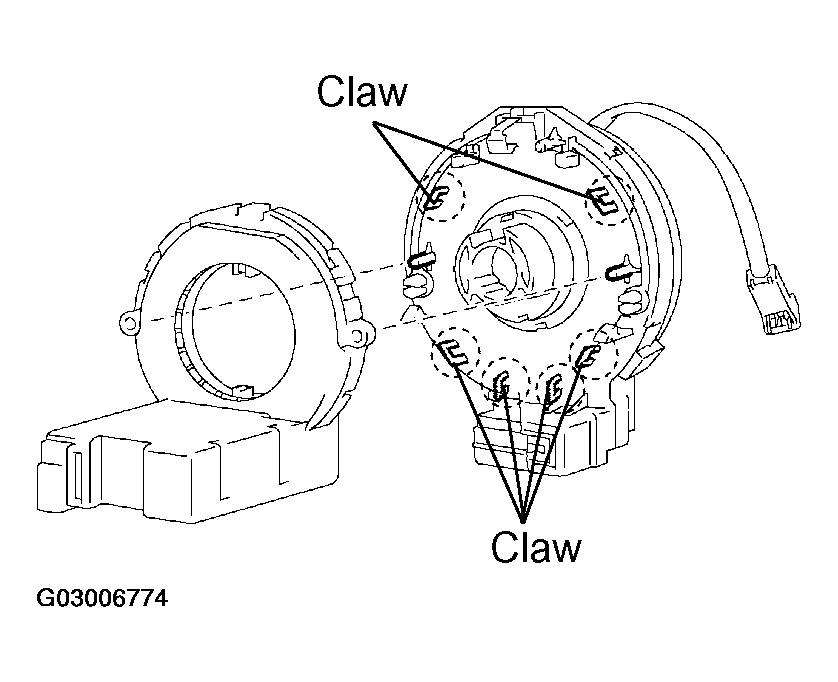

    Fig 2: Installing Steering Sensor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST CENTER FRONT WHEEL
INSTALL SPIRAL CABLE SUB-ASSY (See step 12 in SPIRAL CABLE SUB-ASSY )
CENTER SPIRAL CABLE (See SPIRAL CABLE SUB-ASSY )
INSTALL STEERING WHEEL ASSY (See STEERING COLUMN ASSY (MANUAL TILT) or STEERING COLUMN ASSY (POWER TILT & TELESCOPIC) )
INSTALL HORN BUTTON ASSY (See STEERING COLUMN ASSY (MANUAL TILT) or STEERING COLUMN ASSY (POWER TILT & TELESCOPIC) )
INSPECT STEERING WHEEL CENTER POINT
INSPECT HORN BUTTON ASSY (See ON-VEHICLE INSPECTION )
INSPECT SRS WARNING LIGHT (See DIAGNOSIS SYSTEM )
INSPECT ABS WARNING LIGHT AND VSC WARNING LIGHT (See PRE-CHECK )
