Speed Sensor Rear LH (4WD): Replacement

HINT:

Replace the RH side by using the same procedures as those for the LH side.

1. REMOVE REAR DOOR SCUFF PLATE LH (See  REPLACEMENT  )
2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (See  REPLACEMENT  )
3. REMOVE DECK BOARD SUB-ASSY (See step 15 in  REPLACEMENT  )
4. REMOVE REAR SEAT ASSY LH (See  OVERHAUL  )
5. REMOVE TONNEAU COVER ASSY (See step 18 in  REPLACEMENT  )
6. REMOVE DECK FLOOR BOX FRONT (See step 19 in  REPLACEMENT  )
7. REMOVE DECK FLOOR BOX REAR (See step 20 in  REPLACEMENT  )
8. REMOVE DECK BOARD SUB-ASSY NO. 2 (See  REPLACEMENT  )
9. REMOVE DECK BOARD SUB-ASSY NO. 3 (See  REPLACEMENT  )
10. REMOVE BACK DOOR WEATHERSTRIP (See  REPLACEMENT  )
11. REMOVE DECK SIDE TRIM BOX LH (See  REPLACEMENT  )
12. REMOVE REAR FLOOR FINISH PLATE (See step 26 in  REPLACEMENT  )
13. REMOVE REAR FLOOR FINISH SIDE PLATE LH (See  REPLACEMENT  )
14. REMOVE DECK SIDE TRIM COVER LH (See  REPLACEMENT  )
15. REMOVE REAR SEAT SIDE COVER LH (See  REPLACEMENT  )
16. REMOVE ROPE HOOK (See step 33 in  REPLACEMENT  )
17. REMOVE DECK TRIM SIDE PANEL ASSY LH (See  REPLACEMENT  )
18. REMOVE REAR WHEEL
19. REMOVE SPEED SENSOR REAR LH
    1. Disconnect the speed sensor connector.
       NOTE: Be careful not to damage the wire harness.

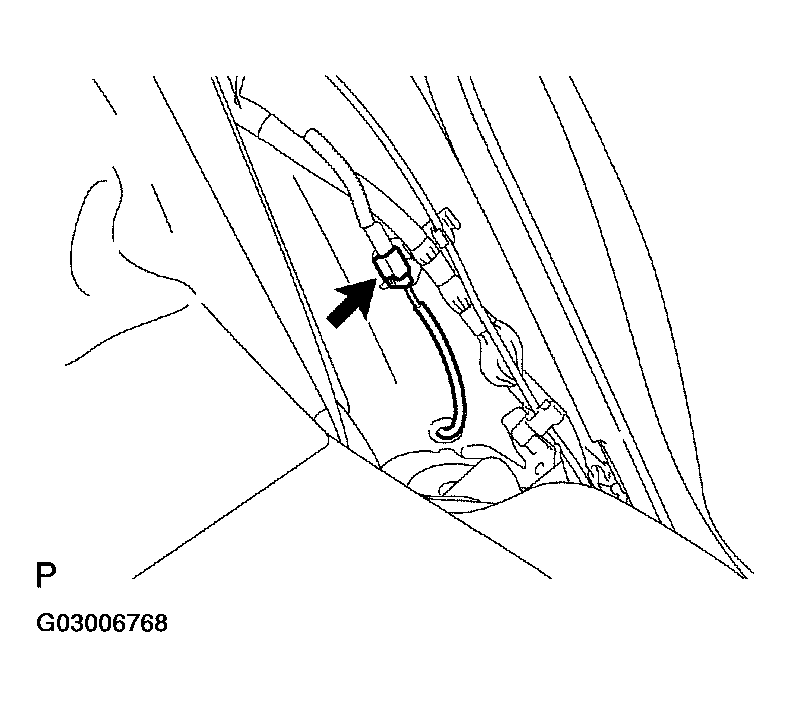

       Fig 1: Disconnecting Speed Sensor Connector

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the sensor wire harness with the grommet.
       NOTE: Do not pull sensor wire.
    3. Remove the 2 bolts holding the sensor harness from the body and the shock absorber assy.

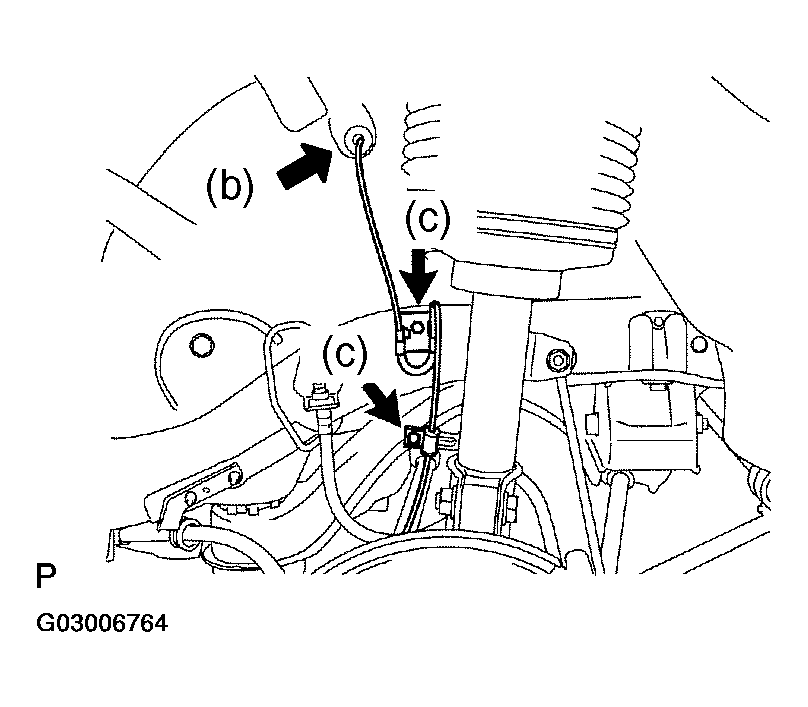

       Fig 2: Removing Sensor Wire Harness With Grommet And Bolts Holding Sensor Harness From Body And Shock Absorber Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt and the speed sensor rear.
       NOTE: Prevent foreign matter from attaching to the sensor tip.

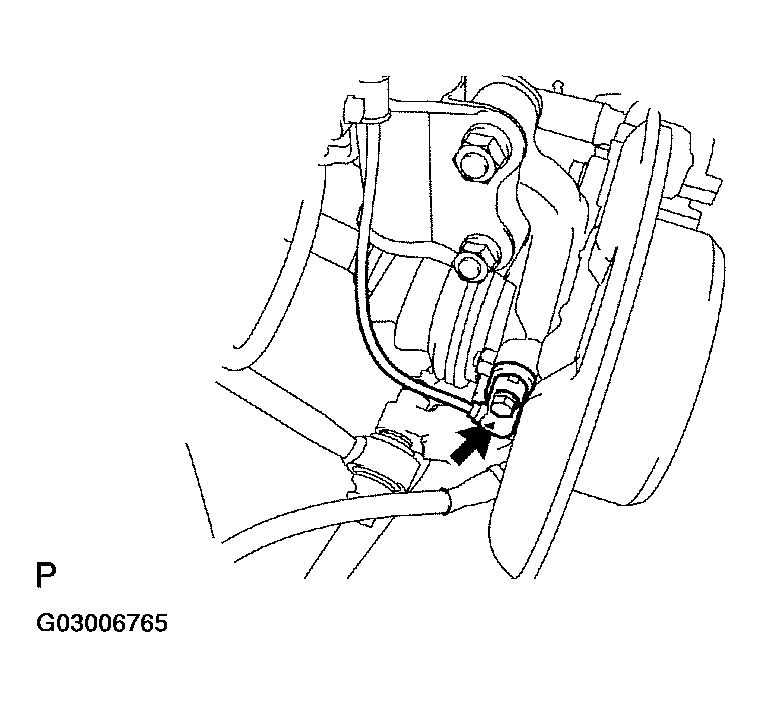

       Fig 3: Removing Bolt And Speed Sensor Rear

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. INSTALL SPEED SENSOR REAR LH
    1. Install the speed sensor rear with the bolt.

       Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

       NOTE: Prevent foreign matter from attaching to the sensor tip.
       Fig 4: Installing Speed Sensor Rear With Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the sensor harness clamps with the 2 bolts to the body and the shock absorber assy.

       Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

       NOTE: Do not twist the sensor wire when installing the sensor.

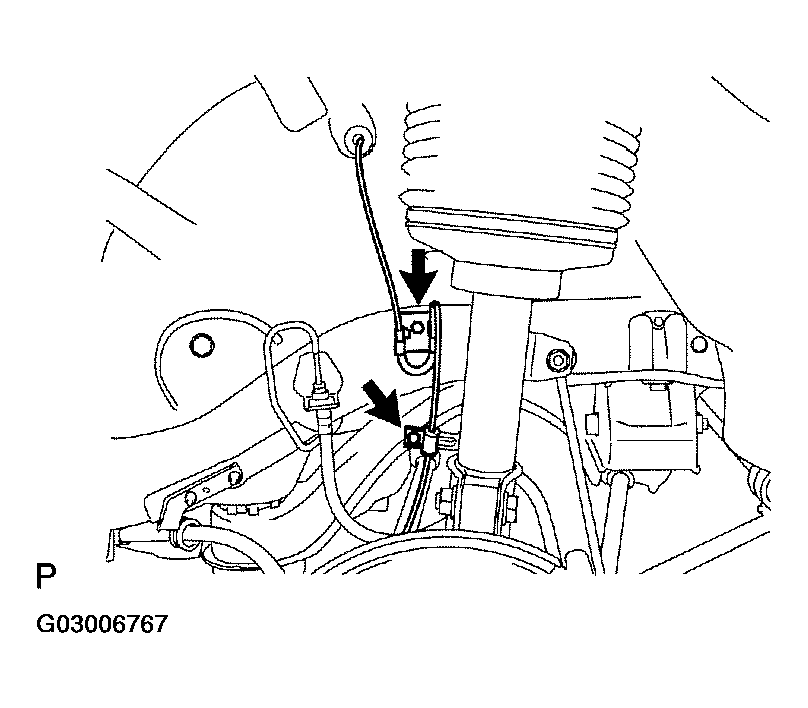

       Fig 5: Installing Sensor Harness Clamps With Bolts To Body And Shock Absorber Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Push in the sensor wire harness with grommet.
       NOTE: When grommet is set to body, pull the grommet do not pull sensor wire.
    4. Connect the speed sensor connector.
       Fig 6: Connecting Speed Sensor Connector

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
21. INSTALL REAR WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

22. INSTALL DECK TRIM SIDE PANEL ASSY LH
23. INSTALL ROPE HOOK
24. INSTALL REAR SEAT SIDE COVER LH
25. INSTALL DECK SIDE TRIM COVER LH
26. INSTALL REAR FLOOR FINISH SIDE PLATE LH
27. INSTALL REAR FLOOR FINISH PLATE
28. INSTALL DECK SIDE TRIM BOX LH
29. INSTALL BACK DOOR WEATHERSTRIP
30. INSTALL DECK BOARD SUB-ASSY NO. 3
31. INSTALL DECK BOARD SUB-ASSY NO. 2
32. INSTALL DECK FLOOR BOX REAR
33. INSTALL DECK FLOOR BOX FRONT
34. INSTALL TONNEAU COVER ASSY
35. INSTALL REAR SEAT ASSY LH (See step 36 in  OVERHAUL  )
36. INSTALL DECK BOARD SUB-ASSY
37. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
38. INSTALL REAR DOOR SCUFF PLATE LH
39. CHECK ABS SPEED SENSOR SIGNAL (See  PRE-CHECK  )
