Problem Symptoms Table

HINT:

Refer to Fig 1 to help locate find the cause of the problem. The numbers indicate the priority of the possible cause of problem. Check each part in the order. If necessary, replace these parts.

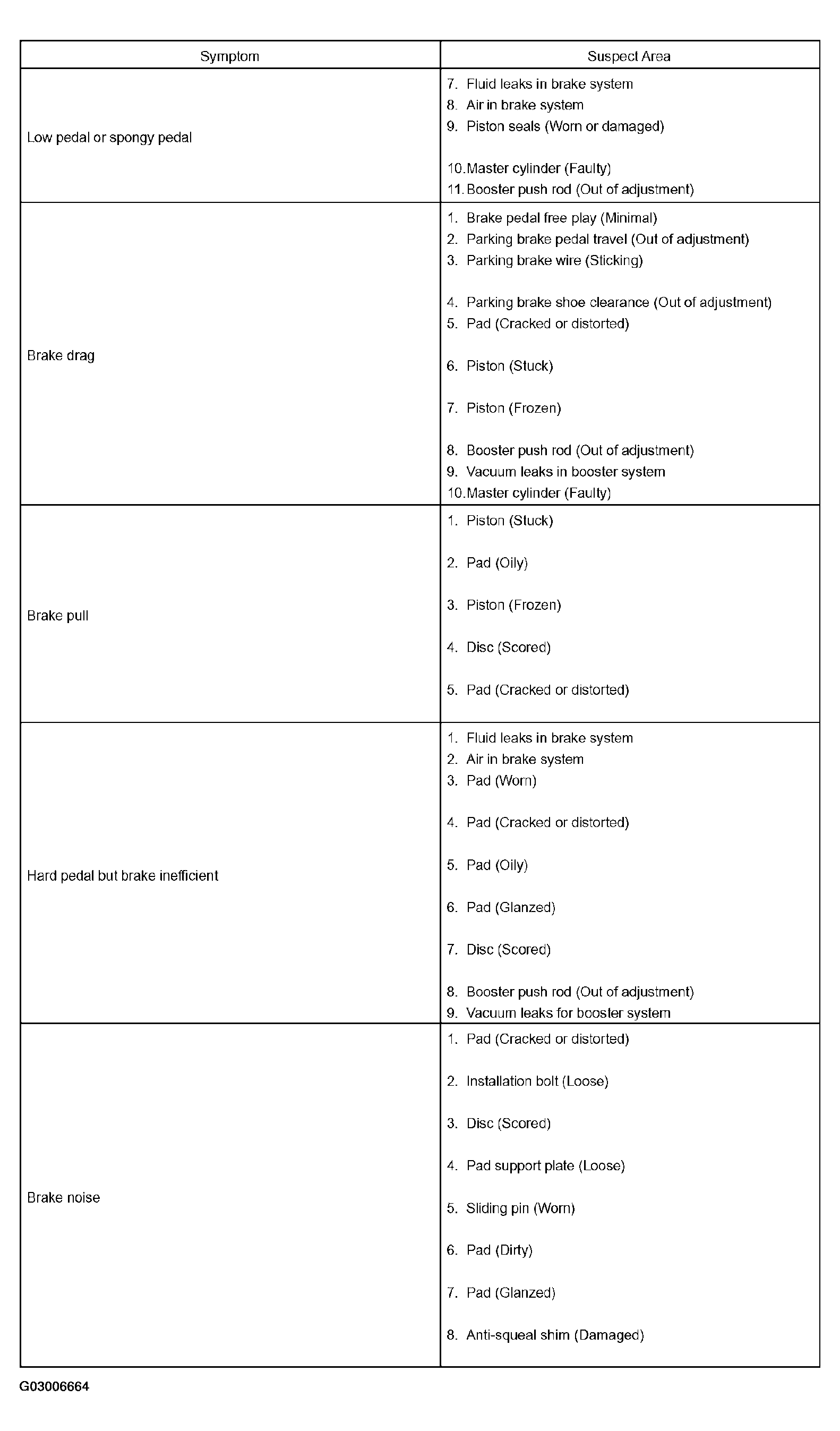

Fig 1: Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
