Brake Pedal Sub-ASSY: Components

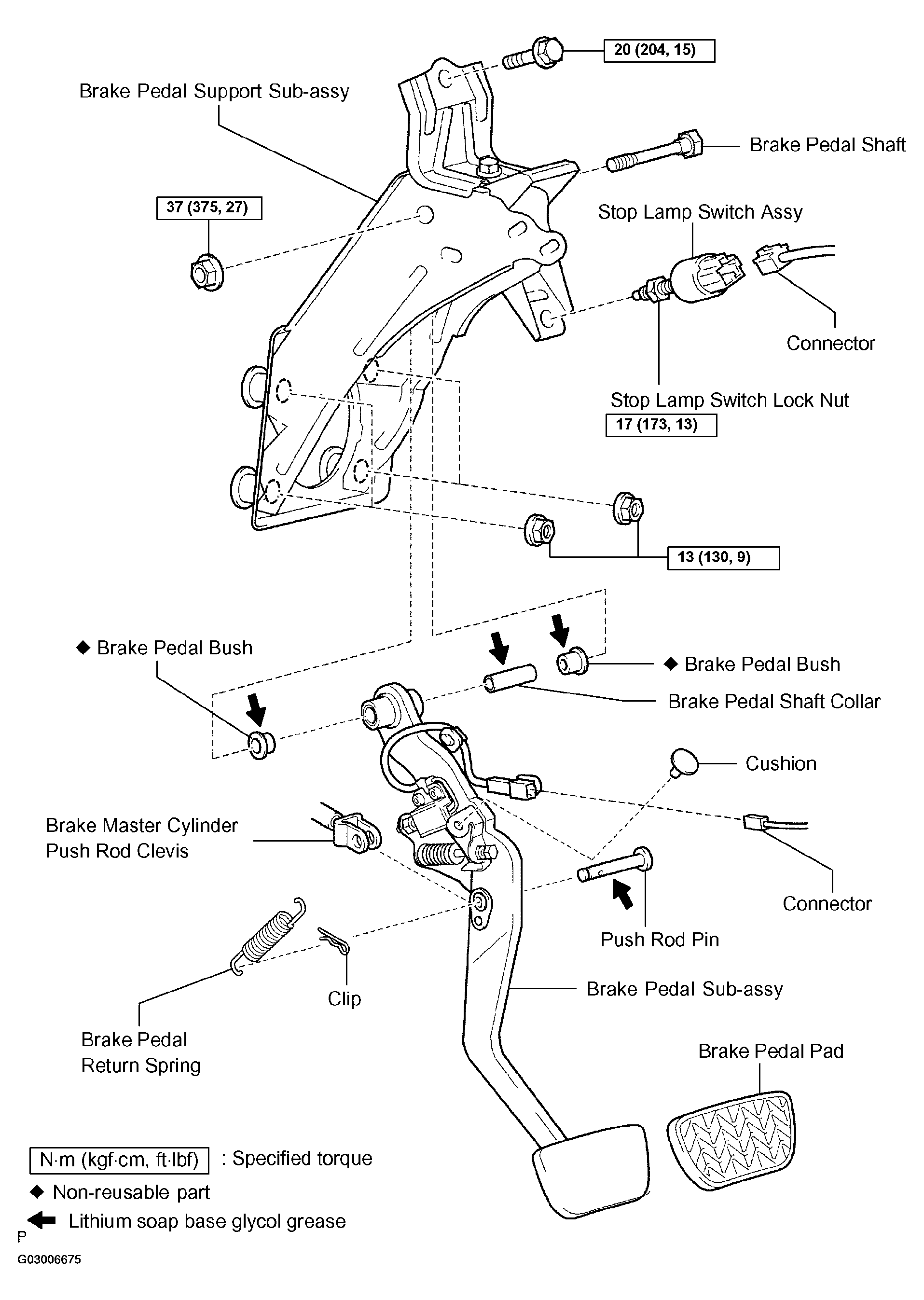

Fig 1: Identifying Brake Pedal Sub-Assembly Components

G03006675

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
