Brake Fluid: Bleeding

HINT:

If any work is performed on the brake system or if air in the brake lines is suspected, bleed the air out of the brake system.

NOTE: Wash the brake fluid off immediately if it adheres to any painted surfaces.
  1. REMOVE V-BANK COVER SUB-ASSY (See step 10 in  ADJUSTMENT  )
  2. REMOVE AIR CLEANER ASSY (See  REPLACEMENT  )
  3. REMOVE AIR CLEANER HOSE NO. 1 (See  REPLACEMENT  )
  4. FILL RESERVOIR WITH BRAKE FLUID

    Fluid: SAE J1703 or FMVSS No. 116 DOT3

    NOTE: Perform the procedure after confirming the sub-tank at the upper of the master cylinder assy is filled enough.
    Fig 1: Filling Reservoir With Brake Fluid
    G03006665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. BLEED MASTER CYLINDER

    HINT:

    If the master cylinder has been disassembled or if the reservoir becomes empty, bleed the air out of the master cylinder.

    1. Disconnect the brake lines from the master cylinder.

      SST 09023-00101

    2. Slowly depress and hold the brake pedal.
      Fig 2: Slowly Depressing And Holding Brake Pedal
      G03006666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Cover the outer holes with your fingers, and release the brake pedal.
      4. Fig 3: Covering Outer Holes With Fingers And Releasing Brake Pedal
      G03006667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Repeat and 3 or 4 times.
    5. Connect the brake lines from the master cylinder.

      SST 09023-00101

      Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

  6. INSTALL AIR CLEANER HOSE NO. 1 (See  REPLACEMENT  )
  7. INSTALL AIR CLEANER ASSY (See  REPLACEMENT  )
  8. INSTALL V-BANK COVER SUB-ASSY (See step 27 in  ADJUSTMENT  )
  9. BLEED BRAKE LINE
    1. Connect the vinyl tube to the bleeder plug.
    2. Depress the brake pedal several times, then loosen the bleeder plug with the pedal depressed.
    3. At the point when fluid stops coming out, tighten the bleeder plug, then release the brake pedal.

      Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

    4. Repeat and until all the air in the fluid is completely bled out.
    5. Repeat the above procedure to bleed the air out of the brake line for each wheel.
      6. Fig 4: Bleeding Brake Line
      G03006668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. BLEED ABS & TRACTION ACTUATOR ASSY
    NOTE: After performing the usual air bleeding in the brake system, if the height or feel of the brake pedal cannot be obtained, perform air bleeding in the ABS & TRACTION actuator assy with a hand-held tester by following procedures below.
    1. Depress the brake pedal more than 20 times with the engine off.
    2. Connect the hand-held tester to the DLC3, then turn the ignition switch to the ON position.
      NOTE: Do not start the engine.

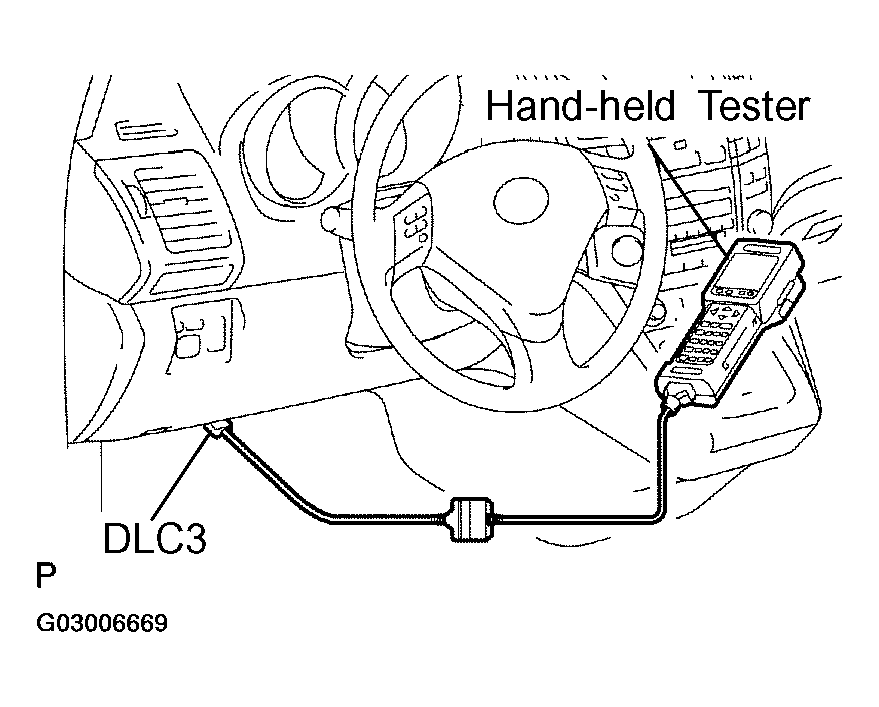

      Fig 5: Connecting Hand-Held Tester To DLC3
      G03006669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Select "AIR BLEEDING" on the hand-held tester.

      Please Refer to the hand-held tester operator's manual for further details.

    4. Bleed the air out of the regular brake line in "Step 1: Increase" on the hand-held tester display.
      NOTE:
      • Perform the air bleeding by following the steps displayed on the hand-held tester.
      • Make sure that the brake fluid in the master cylinder reservoir tank does not become empty.
        1. Connect the vinyl tube to either one of the bleeder plugs.
        2. Depress the brake pedal several times, then loosen the bleeder plug of one of the above wheels with the pedal depressed.
        3. When fluid stops coming out, tighten the bleeder plug, then release the brake pedal.

          Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

        4. Repeat (2) and (3) until all the air in the fluid is completely bled out.
        5. Repeat the above procedure to bleed the air out of the brake line for each wheel.

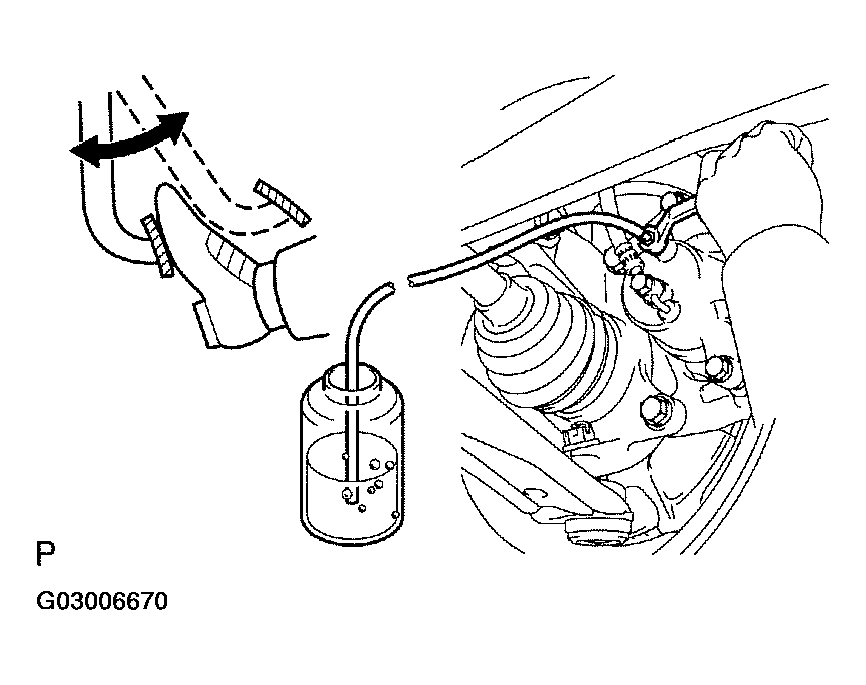

      Fig 6: Bleeding Air Out Of Regular Brake Line
      G03006670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Bleed the air out of the suction line in "Step 2: Inhalation" on the hand-held tester display.
      NOTE:
      • Perform the air bleeding by following the steps displayed on the hand-held tester.
      • Make sure that the brake fluid in the master cylinder reservoir tank does not become empty.
      1. Connect the vinyl tube to the bleeder plug at the right front wheel or the right rear wheel and loosen the bleeder plug.
      2. Operate the ABS & TRACTION actuator assy using the hand-held tester to bleed the air.
        NOTE:
        • The operation stops automatically in 4 seconds.
        • At this time, be sure to release the brake pedal.
      3. Check that the operation has stopped, by referring to the hand-held tester display.
      4. Repeat (2) and (3) until all the air in the fluid is completely bled out.

        Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

      5. For the rest of the wheels, bleed the air in the same way as stated in the above procedure.
    6. Bleed the air out of the pressure reduction line in "Step 3: Decrease" on the hand-held tester display.
      NOTE:
      • Perform air bleeding by following the steps displayed on the hand-held tester.
      • Make sure that the brake fluid in the master cylinder reservoir tank does not become empty.
      1. Connect a vinyl tube to either one of the bleeder plugs.
      2. Loosen the bleeder plug.
      3. Using the hand-held tester, operate the ABS & TRACTION actuator assy using hand-held tester, completely depress the brake pedal and keep it.
        NOTE:
        • The operation stops automatically in 4 seconds. When performing this procedure continuously, an interval of at least 20 seconds is required.
        • When the operation is completed, the brake pedal slightly goes down. This is a normal phenomenon caused when the solenoid opens.
        • During this procedure, the pedal seems heavy, but completely depress it so that the brake fluid comes out from the bleeder plug.
        • Be sure to keep depressing the brake pedal. Never depress and release the pedal repeatedly.
      4. Tighten the bleeder plug, then release the brake pedal.

        Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

      5. Repeat (2) to (4) until all the air in the fluid is completely bled out.
      6. Repeat the above procedure to bleed the air out of the brake line for each wheel.
    7. Bleed the air out of the regular brake line again in "Step 4: Increase" on the hand-held tester display.
      NOTE:
      • Perform air bleeding by following the steps displayed on the hand-held tester.
      • Make sure that the brake fluid in the master cylinder reservoir tank does not become empty.
      1. Connect the vinyl tube to either one of the bleeder plug.
      2. Depress the brake pedal several times, then loosen the bleeder plug of one of the above wheels with the pedal depressed.
      3. When fluid stops coming out, tighten the bleeder plug, then release the brake pedal.

        Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

      4. Repeat (2) and (3) until all the air in the fluid is completely bled out.
      5. Repeat the above procedure to bleed the air out of the brake line for each wheel.
        6. Fig 7: Bleeding Air Out Of Regular Brake Line
        G03006671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. CHECK FLUID LEVEL IN RESERVOIR
    1. Check the fluid level and add fluid, if necessary.

      Fluid: SAE J1703 or FMVSS No. 116 DOT3
