Abs & Traction Actuator ASSY: Replacement

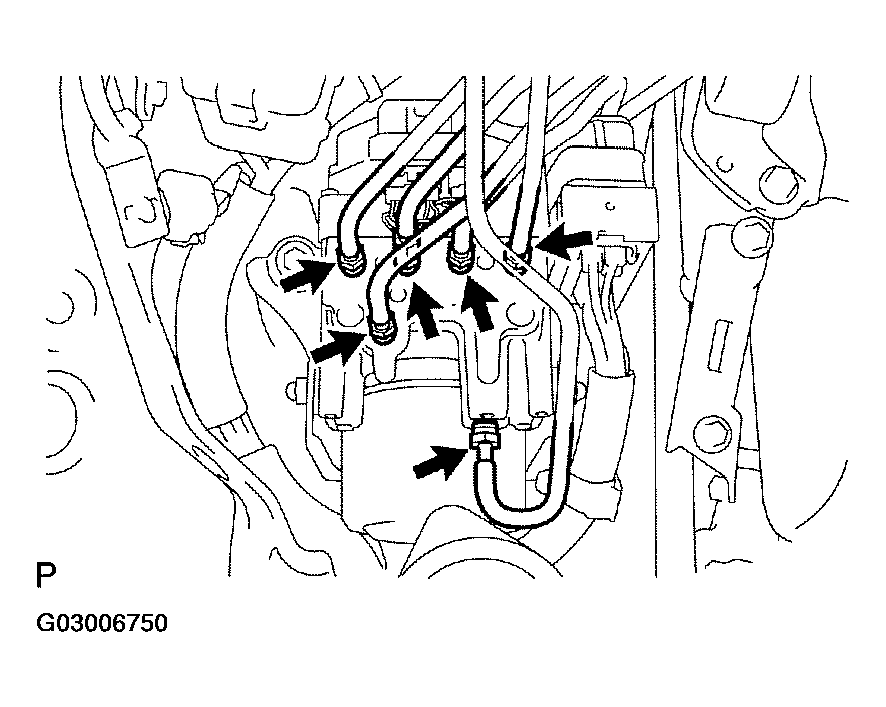

1. Using SST(s), disconnect the 6 brake tubes from the actuator with bracket.

   SST 09023-00101

   Fig 1: Disconnecting Brake Tubes From Actuator With Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

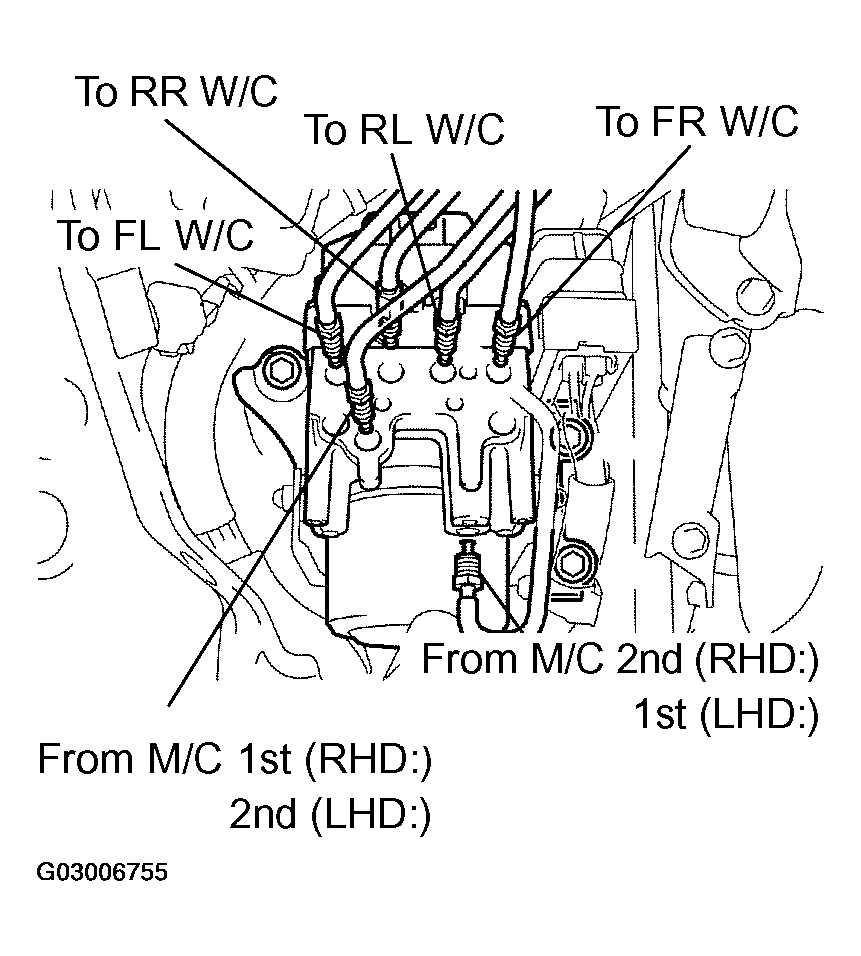

2. Use tags or make a memo to identify the places to reconnect.
   Fig 2: Identifying Disconnected Brake Tubes Tags

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

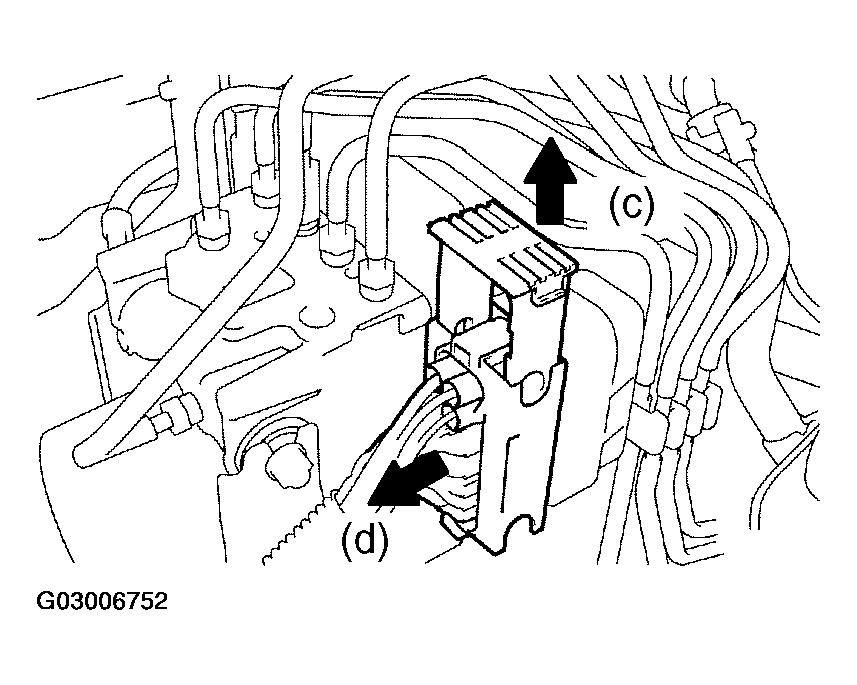

3. Pull the lock lever upward.
4. Disconnect the actuator connector.
   Fig 3: Disconnecting Actuator Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

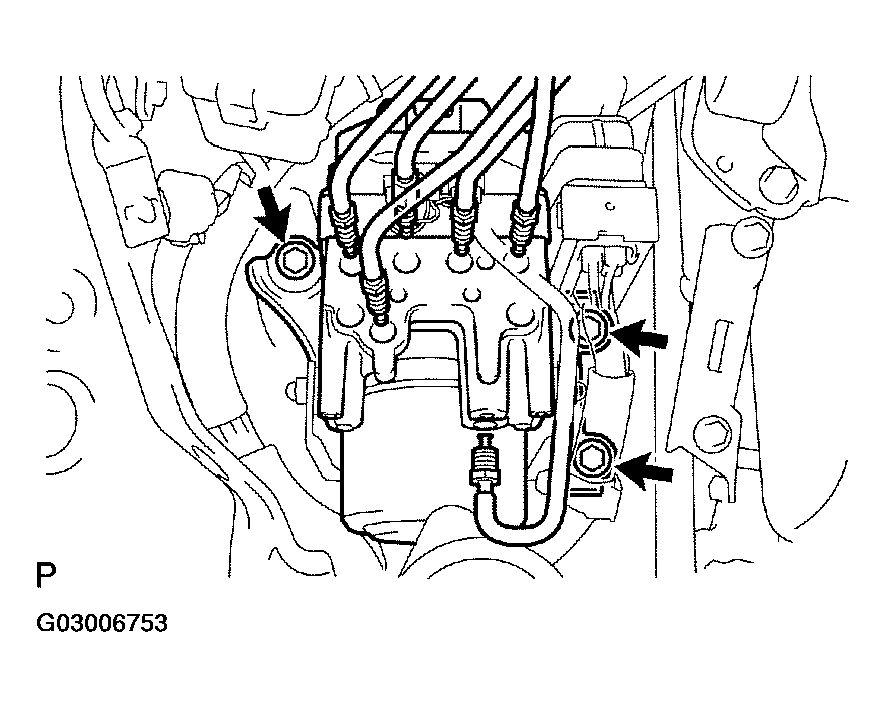

5. Remove the 2 bolts, the nut and the actuator with bracket.
   NOTE: Be careful not to damage the brake tubes.
   Fig 4: Removing Bolts, Nut And Actuator With Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 nuts and the ABS & TRACTION actuator assy from the brake actuator bracket.

1. Install the ABS & TRACTION actuator assy with the 2 nuts.

   Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

1. Install the actuator with bracket and the 2 bolts and the-nut.

   Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)

   NOTE: Be careful not to damage the brake tubes.
   Fig 5: Installing Actuator With Bracket And Bolts And Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the actuator connector.

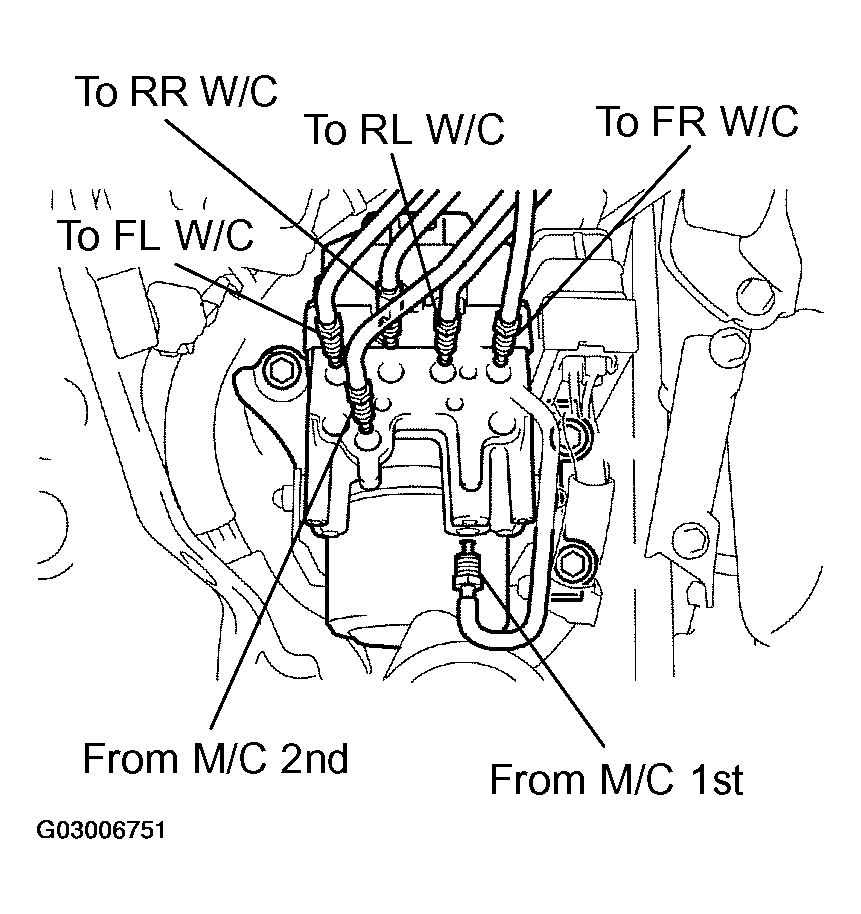

3. Using SST(s), connect each brake tube to correct positions of the actuator with bracket, as shown in the illustration.

   SST 09023-00101

   Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

   Fig 6: Connecting Brake Tube To Correct Positions Of Actuator With Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09023-00101
