Front LH Seat ASSY: Components

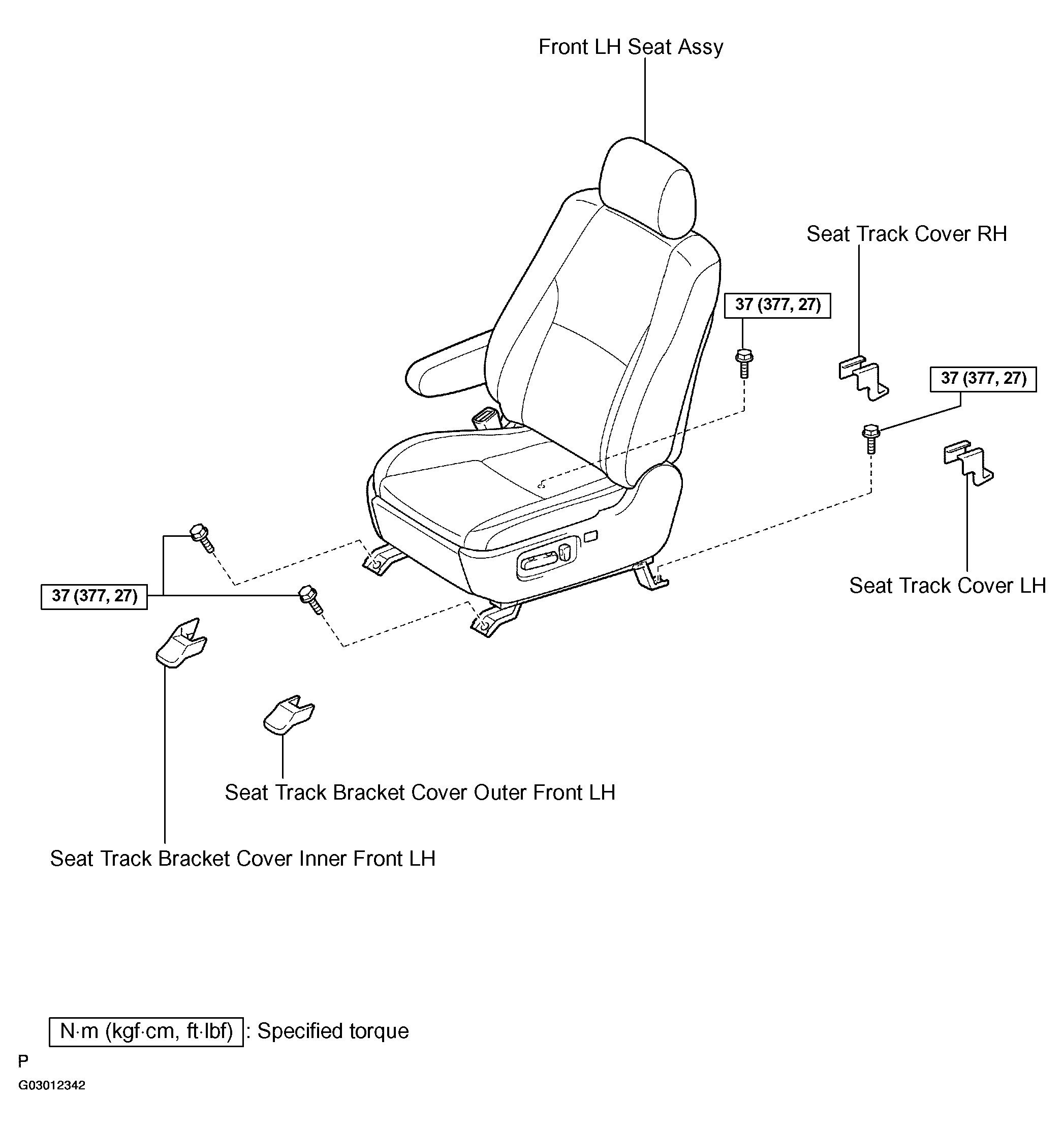

Fig 1: Identifying Front LH Seat Component Assy (1 Of 3)
G03012342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

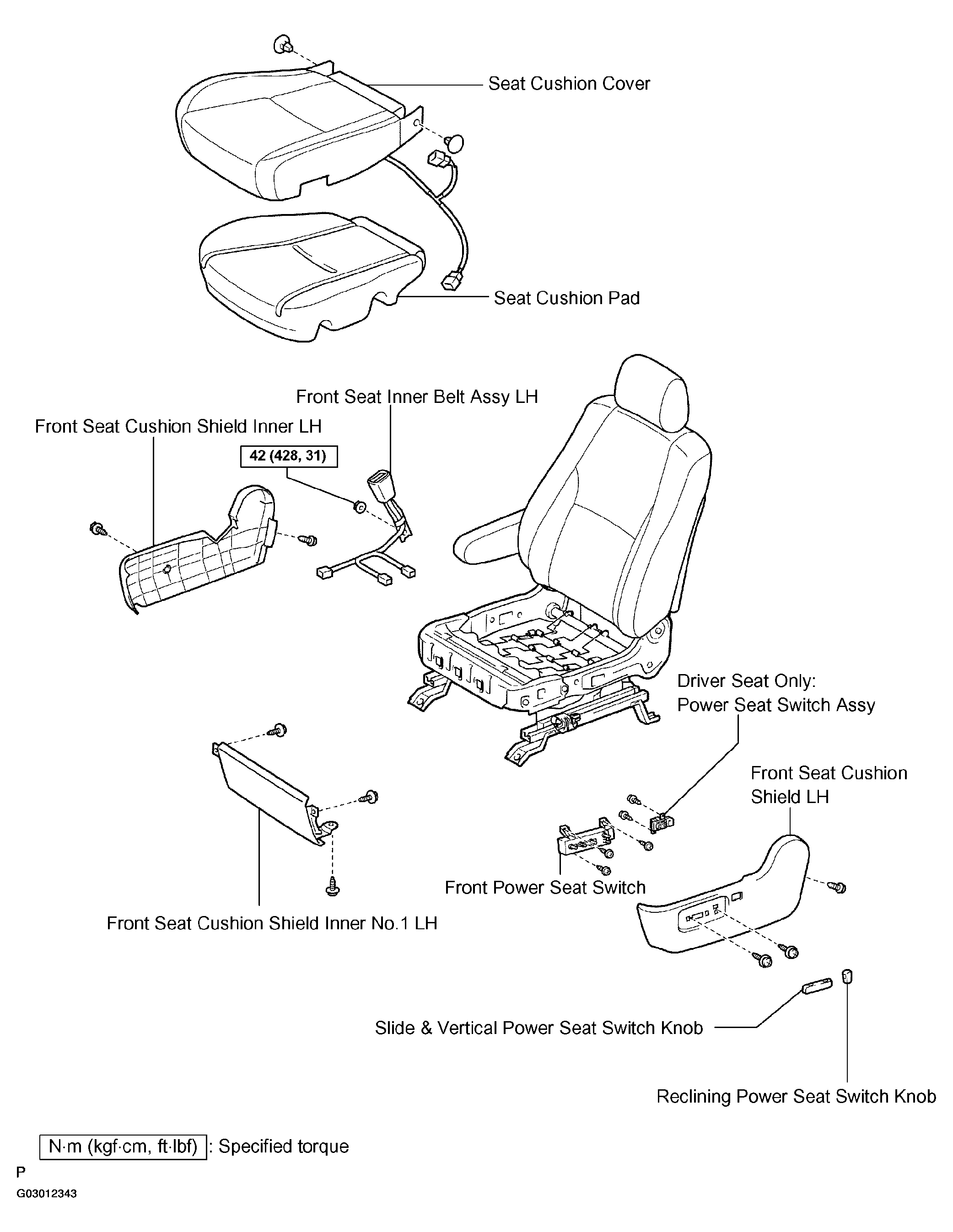

Fig 2: Identifying Front LH Seat Component Assy (2 Of 3)
G03012343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

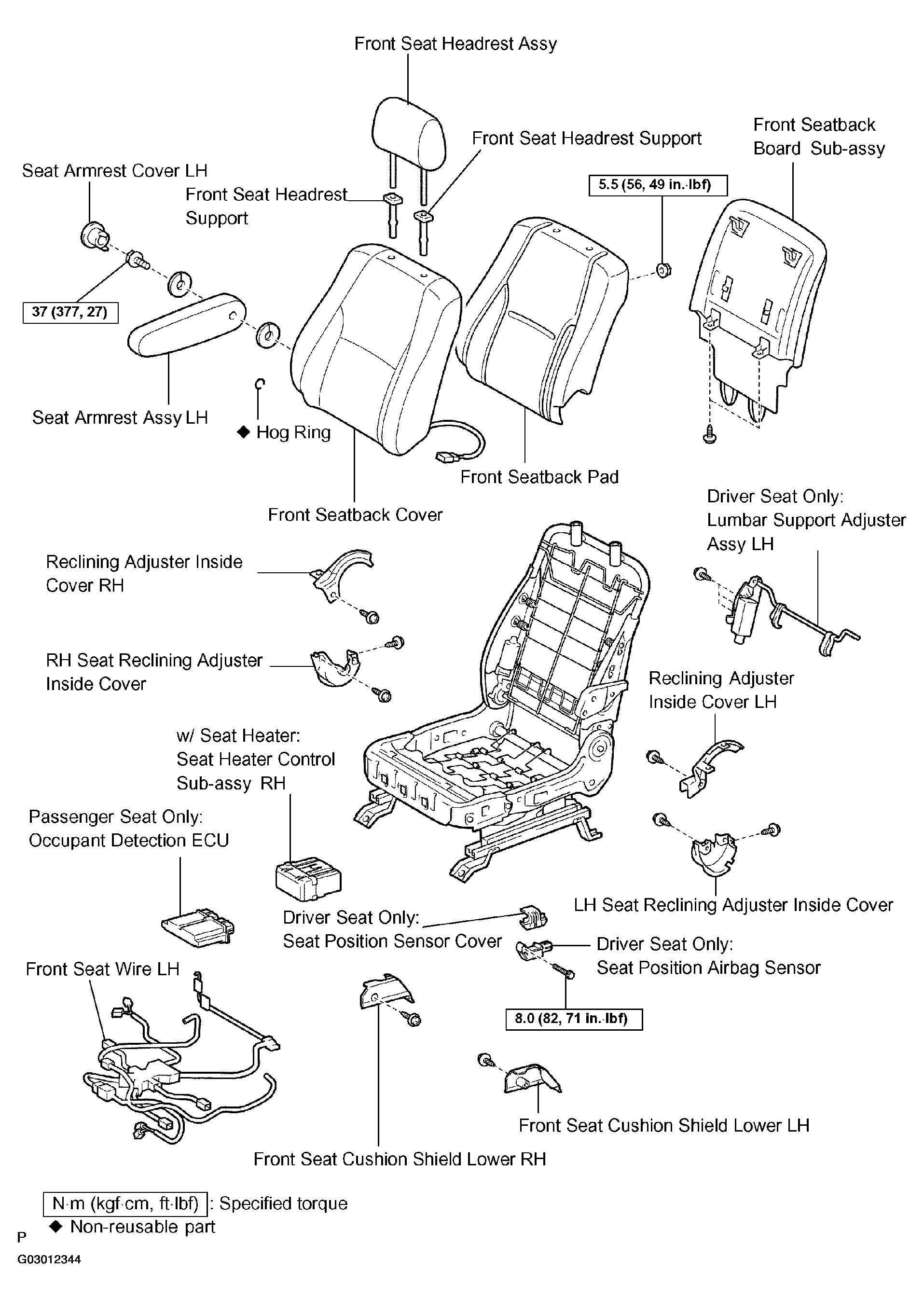

Fig 3: Identifying Front LH Seat Component Assy (3 Of 3)
G03012344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
