Shift Lever ASSY (ATM): Adjustment

INSPECT SHIFT LEVER POSITION
1. When shifting from the P to R position only with the ignition switch on and brake pedal depressed, make sure that the shift lever moves smoothly and can be moderately operated.
2. Start the engine and make sure that the vehicle moves forward when shifting from the N to D position and moves rearward when shifting to the R position.
ADJUST SHIFT LEVER POSITION
1. Locating nut on control shaft lever.

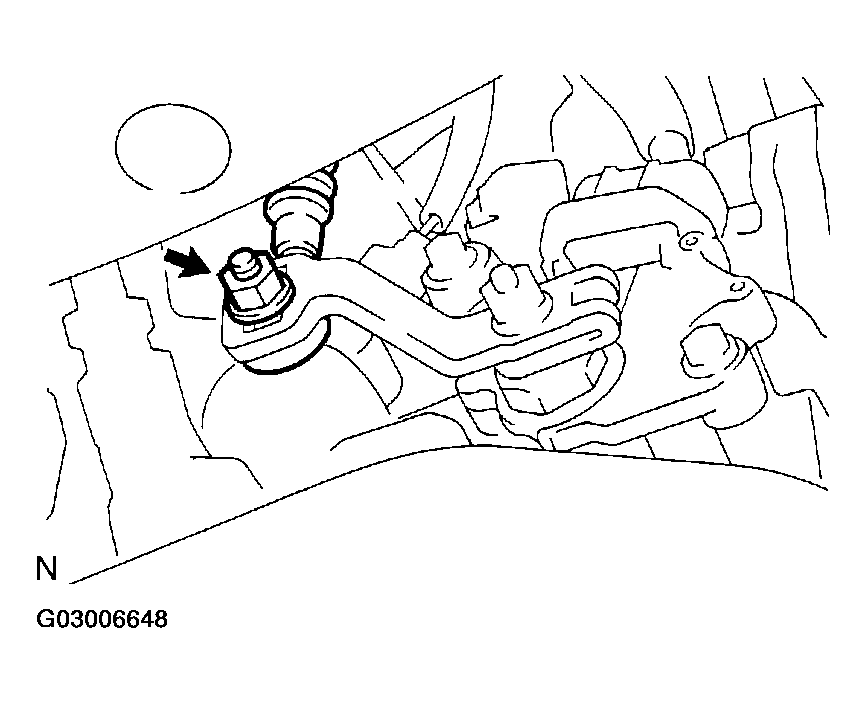

  Fig 1: Locating Nut On Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push the control shaft fully downward.
3. Return the control shaft lever 2 notches to the N position.

  Fig 2: Returning Control Shaft Lever 2 Notches To N Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. While pushing the control cable end up with the shift lever in the N position, install it to the control shaft lever with the nut.
  Torque: 15 N.m (150 kgf.cm, 10 ft.lbf)
  NOTE:
  - If the control cable end is excessively pushed up, the shift lever can not be adjusted.
  - When tightening the nut, confirm that the control cable is properly stretched.

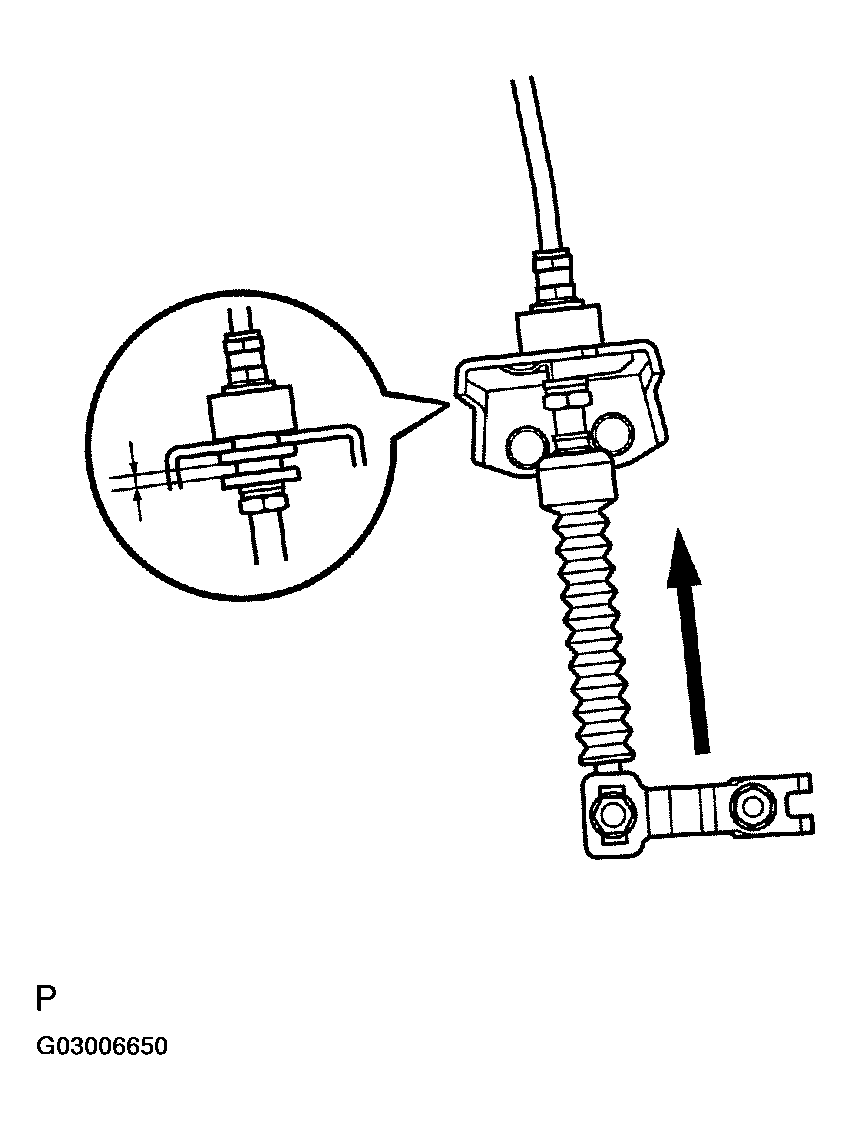

  Fig 3: Pushing Control Cable End Up
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Start the engine and make sure that the vehicle moves forward when shifting the lever from the N to D position and moves rearward when shifting it to the R position.
