Air Conditioning Radiator ASSY: Components

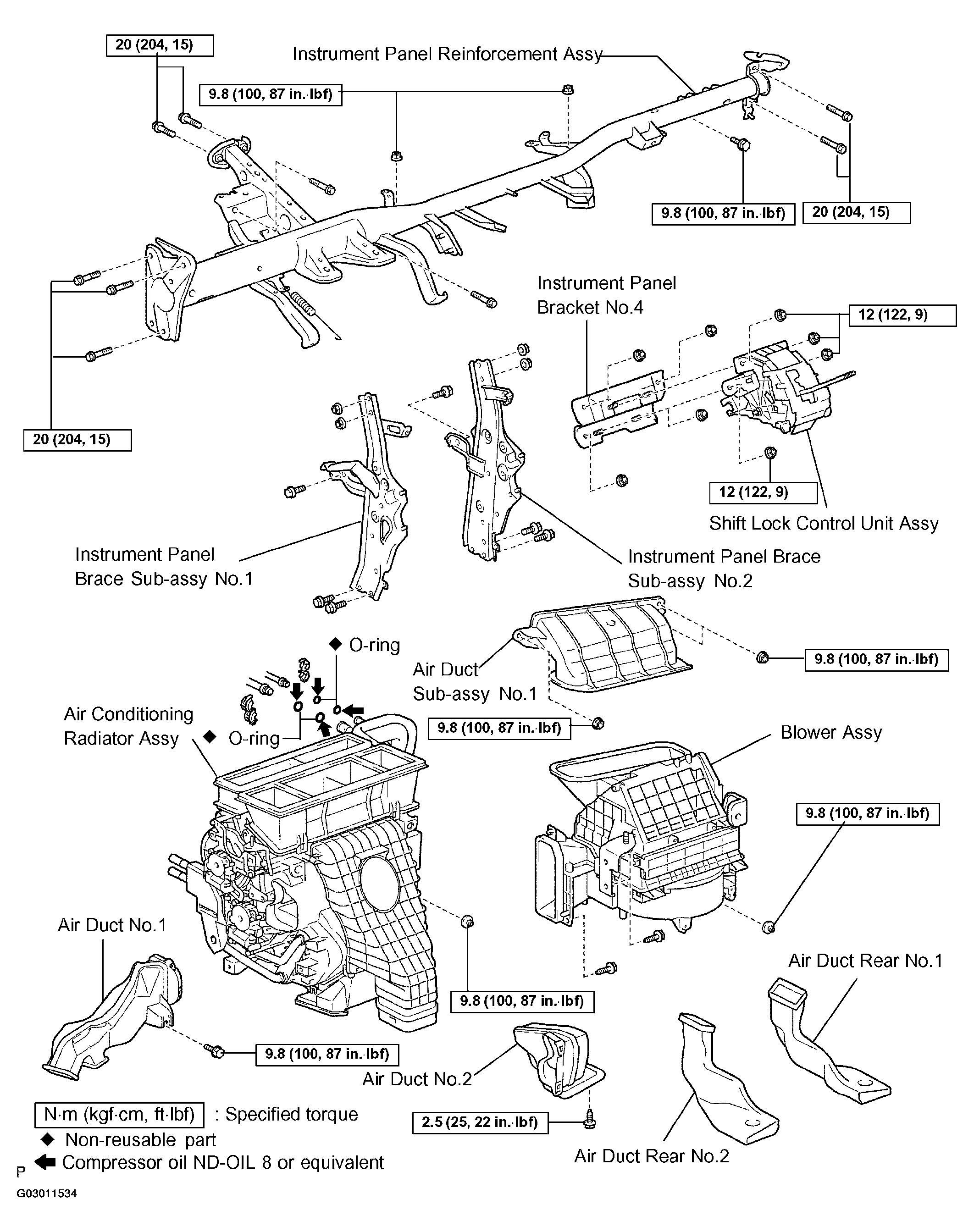

Fig 1: Exploded View Of Air Conditioning Interior Components Assy (1 Of 2)
G03011534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

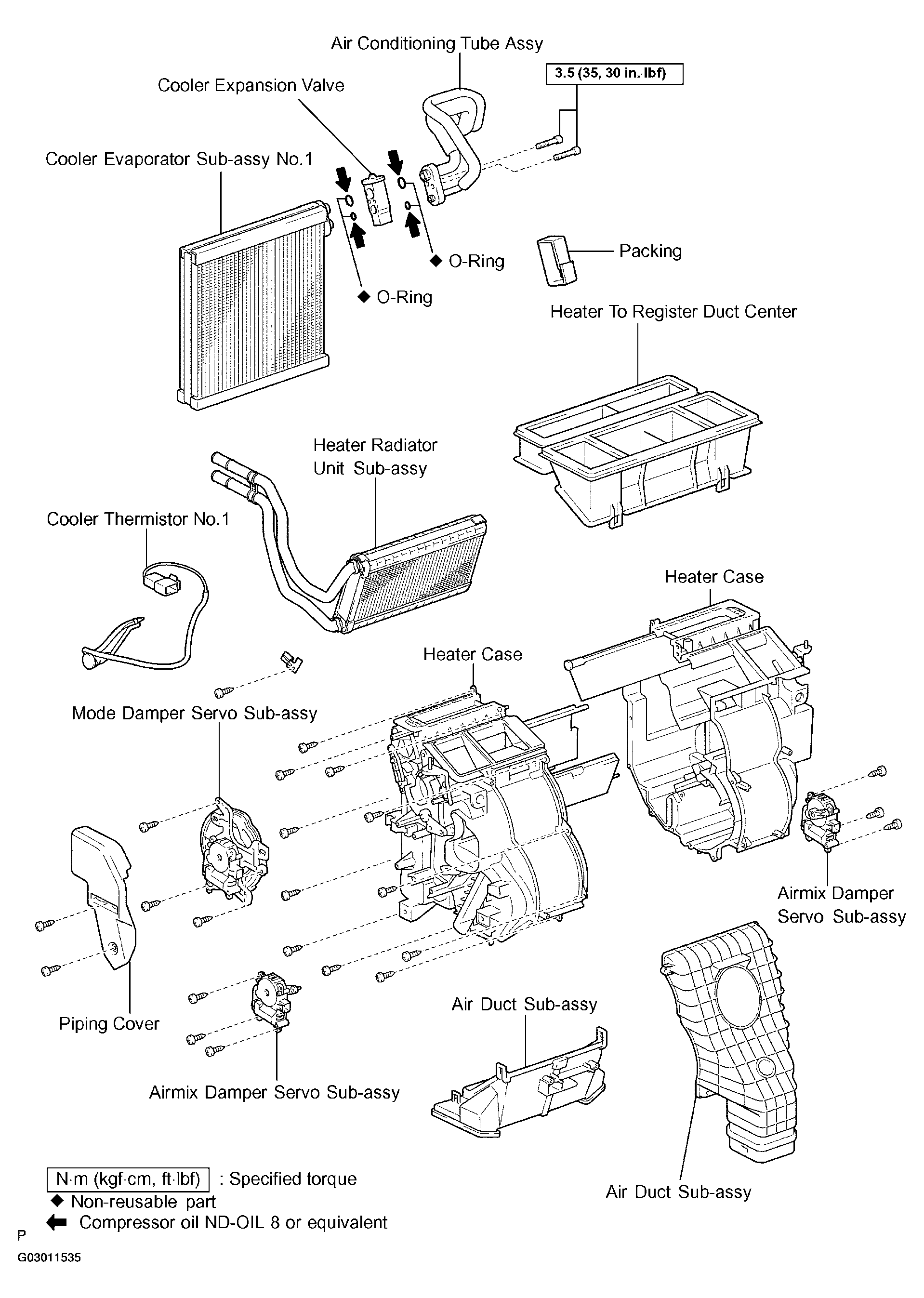

Fig 2: Exploded View Of Air Conditioning Interior Components Assy (2 Of 2)
G03011535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
