VSV For Canister Closed Valve (CCV): Inspection

Using an ohmmeter, check that there is a continuity between the terminals.

Resistance: 24 - 30 Ωat 20°C (68°F)

If there is no continuity, replace VSV.

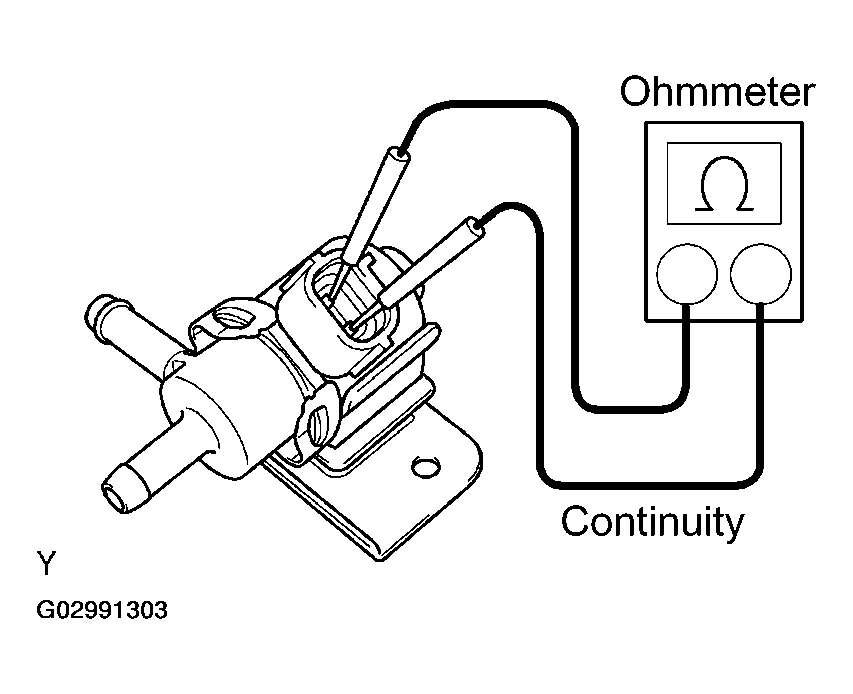

Fig 1: Checking Continuity Between Terminals Using Ohmmeter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using an ohmmeter, check that there is no continuity between each terminal and the body.

If there is a continuity, replace VSV.

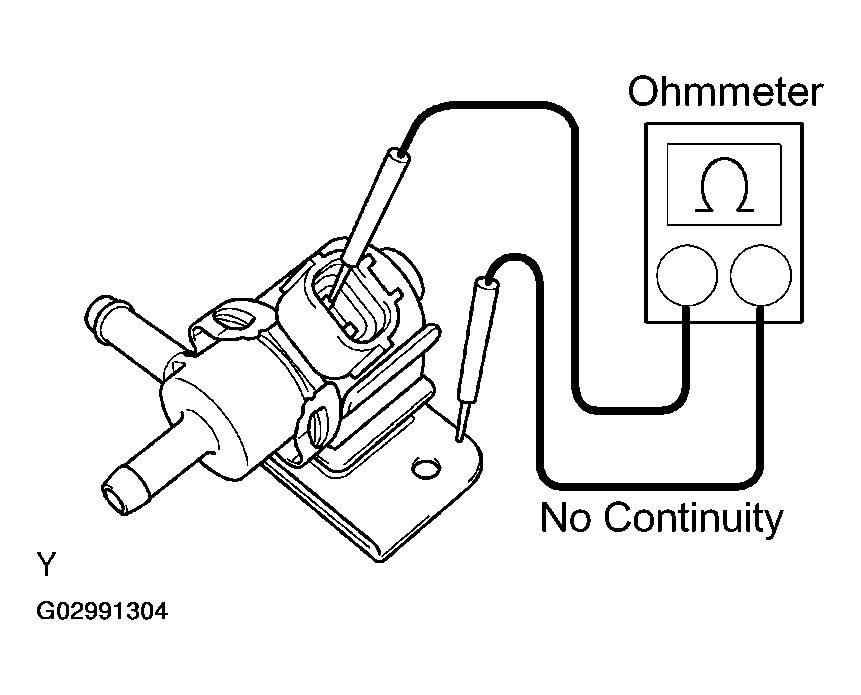

Fig 2: Checking Continuity Between Each Terminal And Body Using Ohmmeter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that air flows from the ports A to B.
   Fig 3: Checking Air Flow From Ports A To B

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply the battery positive voltage across the terminals.
3. Check that air does not flow from the ports A to B.

If operation is not as specified, replace VSV.

Fig 4: Applying Battery Positive Voltage Across Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
