Air Conditioning Control ASSY: Overhaul

HINT:

See COMPONENTS

1. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE  REPLACEMENT  )
2. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY RH (SEE  REPLACEMENT  )
3. REMOVE INTEGRATION CONTROL & PANEL ASSY
   1. Loosen the bolt and remove the 4 bolts, the 4 clips and the integration control & panel assy.

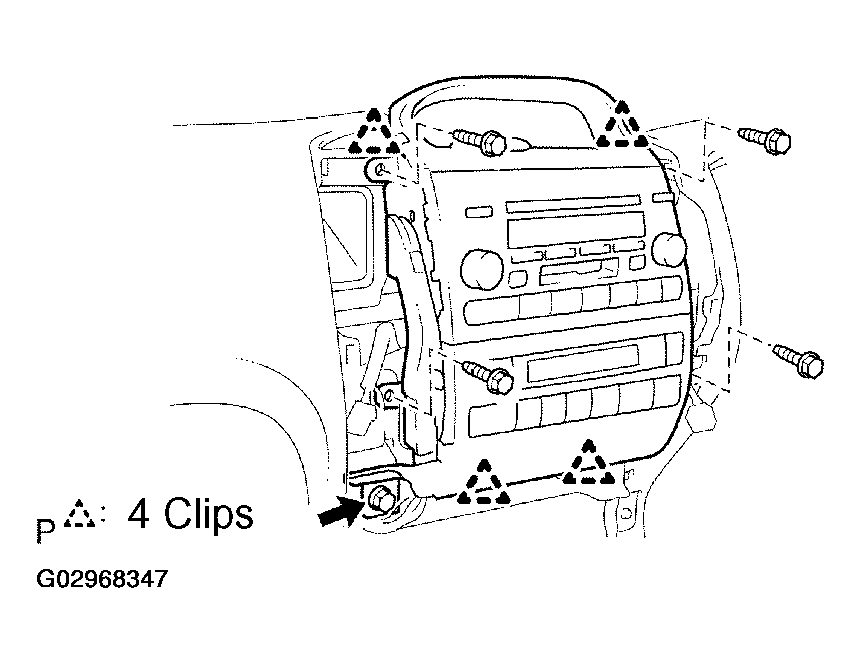

      Fig 1: Removing Bolts, Clips, Integration Control & Panel Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE RADIO BRACKET NO.1 (SEE  RADIO RECEIVER ASSY  )
5. REMOVE RADIO BRACKET NO.2 (SEE  RADIO RECEIVER ASSY  )
6. REMOVE RADIO RECEIVER ASSY (W/ EMV & NAVIGATION SYSTEM) (SEE  MULTI-DISPLAY (CRT DISPLAY) DISPLAY  )
7. REMOVE AIR CONDITIONING CONTROL ASSY
   1. Remove the 4 screws and the air conditioning control assy.

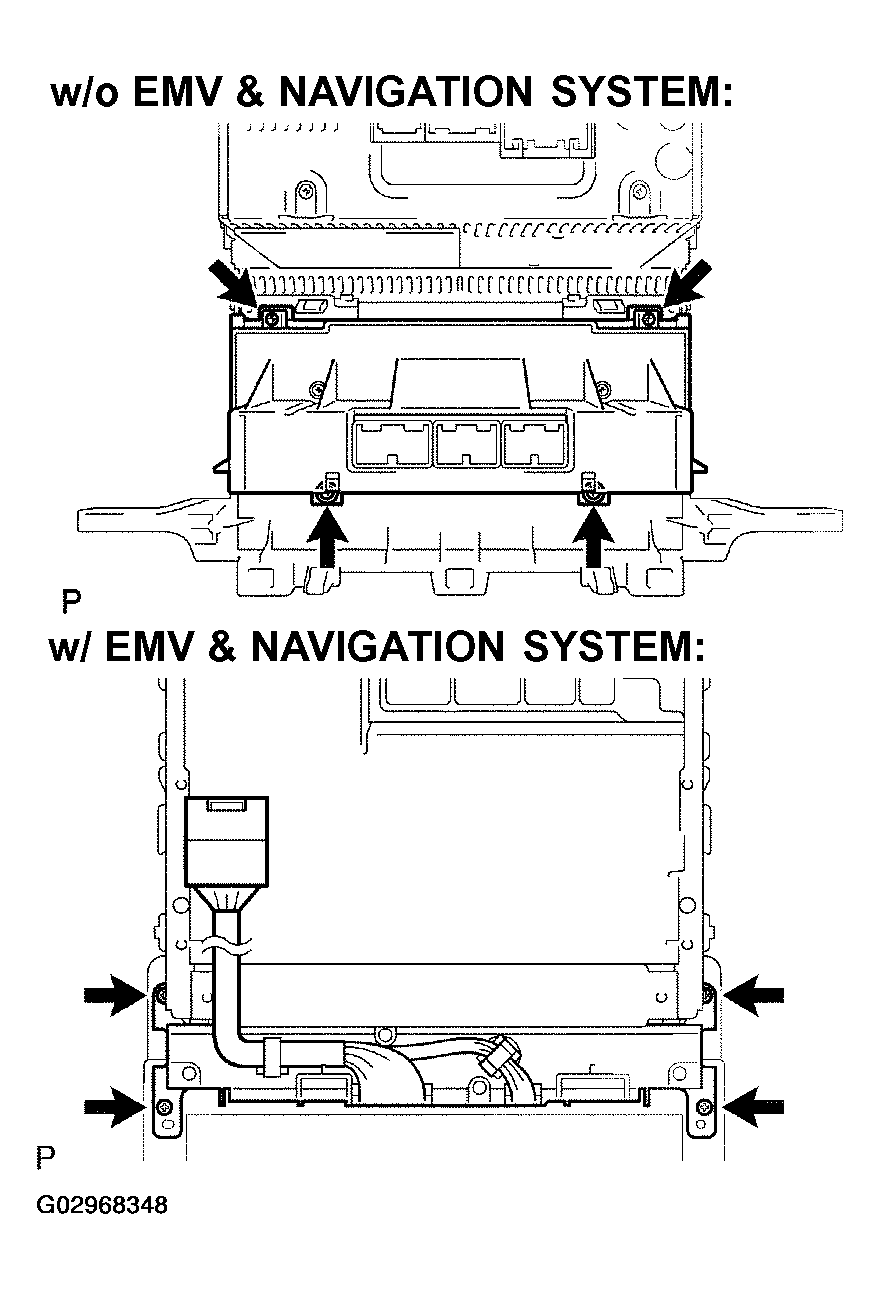

      Fig 2: Removing Screws & Air Conditioning Control Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE AIR CONDITIONER AMPLIFIER ASSY (W/O EMV & NAVIGATION SYSTEM)
   1. Release the 4 claw fittings and remove the 6 screws and the heater control housing.
      Fig 3: Removing Claw Fittings, Screws & Heater Control Housing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Release the lock of the connector and disconnect the cable.
      Fig 4: Releasing Lock Of Connector & Disconnect Cable

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the 2 screws and the air conditioner amplifier assy.
      Fig 5: Removing Screws & Air Conditioner Amplifier Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE AIR CONDITIONING CONTROL BULB (W/O EMV & NAVIGATION SYSTEM)
10. REMOVE HEATER CONTROL KNOB (W/O EMV & NAVIGATION SYSTEM)
