YAWRATE Sensor: Replacement

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. REMOVE SHIFT LEVER KNOB SUB-ASSY (SEE  REPLACEMENT  )
  3. REMOVE CONSOLE UPPER PANEL GARNISH NO.2 (SEE  REPLACEMENT  )
  4. REMOVE CONSOLE UPPER PANEL GARNISH NO.1 (SEE  REPLACEMENT  )
  5. REMOVE CONSOLE PANEL UPPER ASSY (SEE  REPLACEMENT  )
  6. REMOVE YAWRATE SENSOR
    1. Disconnect the yawrate sensor connector.
    2. Remove the 2 bolts and yawrate sensor.
      Fig 1: Removing Bolts & Yawrate Sensor
      G02963534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL YAWRATE SENSOR
    1. Install the yawrate sensor with 2 bolts.

      Torque: 13.3 N.m (136 kgf.cm, 10 ft.lbf)

      NOTE: Do not install the sensor back to front.
    2. Connect the yawrate sensor connector.

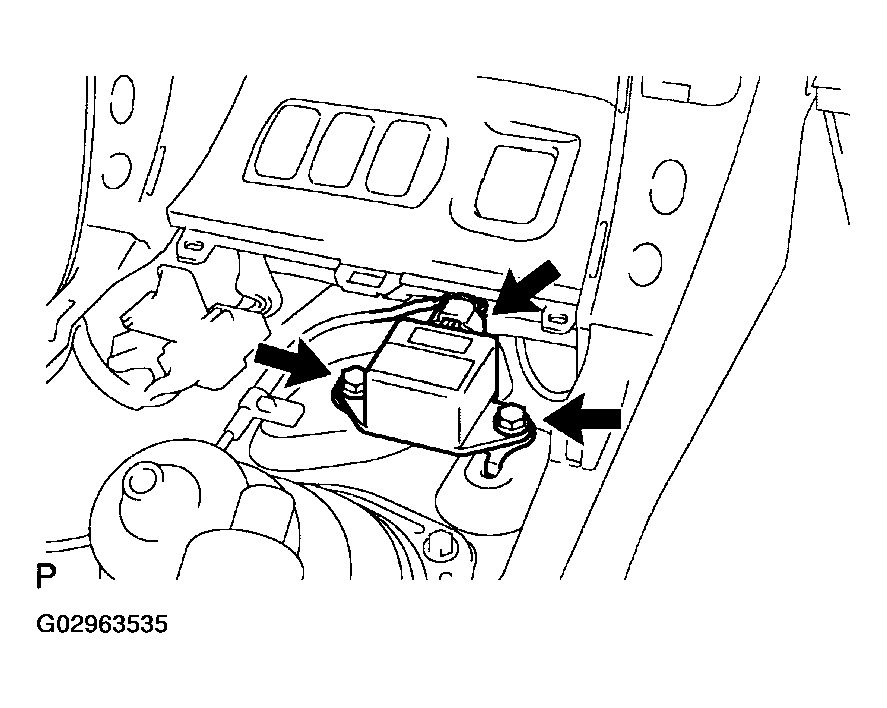

      Fig 2: Installing Bolts & Yawrate Sensor
      G02963535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL CONSOLE PANEL UPPER ASSY
  9. INSTALL CONSOLE UPPER PANEL GARNISH NO.1
  10. INSTALL CONSOLE UPPER PANEL GARNISH NO.2
  11. INSTALL SHIFT LEVER KNOB SUB-ASSY
  12. PERFORM YAWRATE SENSOR ZERO POINT CALIBRATION (SEE  CALIBRATION  )
  13. CHECK VSC SENSOR SIGNAL (SEE  TEST MODE PROCEDURE  )
