Speed Sensor Rear LH: Replacement

HINT:

Replacement of RH side is same as that of LH side.

1. REMOVE REAR WHEEL
2. REMOVE SPEED SENSOR REAR LH
   1. Disconnect the speed sensor connector.

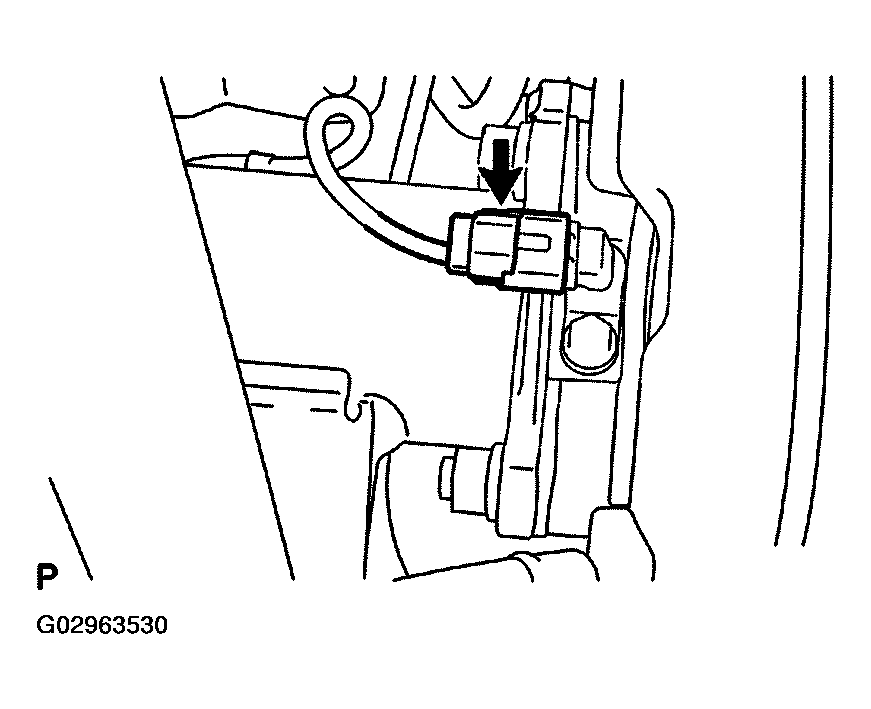

      Fig 1: Disconnecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the nut and speed sensor rear from the axle hub.
   NOTE:

   • Do not stick a foreign matter on the sensor tip.
   • Do not let the foreign matter into the sensor installation hole.
     Fig 2: Removing Speed Sensor Rear With Nut

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL SPEED SENSOR REAR LH
   1. Install the rear speed sensor with the nut to the steering knuckle.

      Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

      NOTE: Make sure the sensor tip is clean.
      Fig 3: Installing Rear Speed Sensor With Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Connect the speed sensor connector.

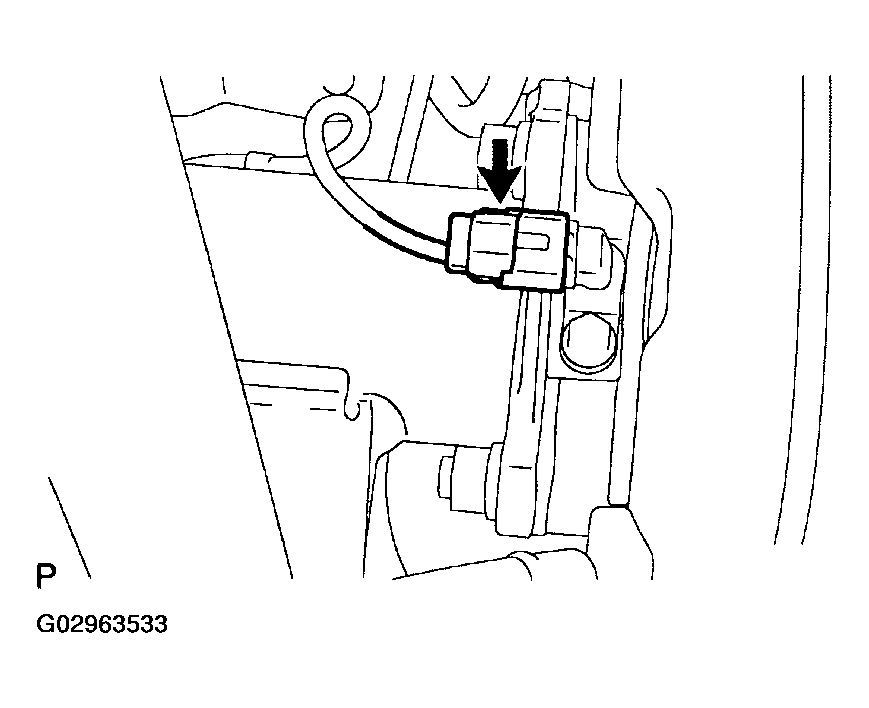

      Fig 4: Connecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL REAR WHEEL

   Torque: 112 N.m (1,142 kgf.cm, 83 ft.lbf)

5. CHECK VSC SENSOR SIGNAL (SEE  TEST MODE PROCEDURE  )
