Front LH Seat ASSY: Components

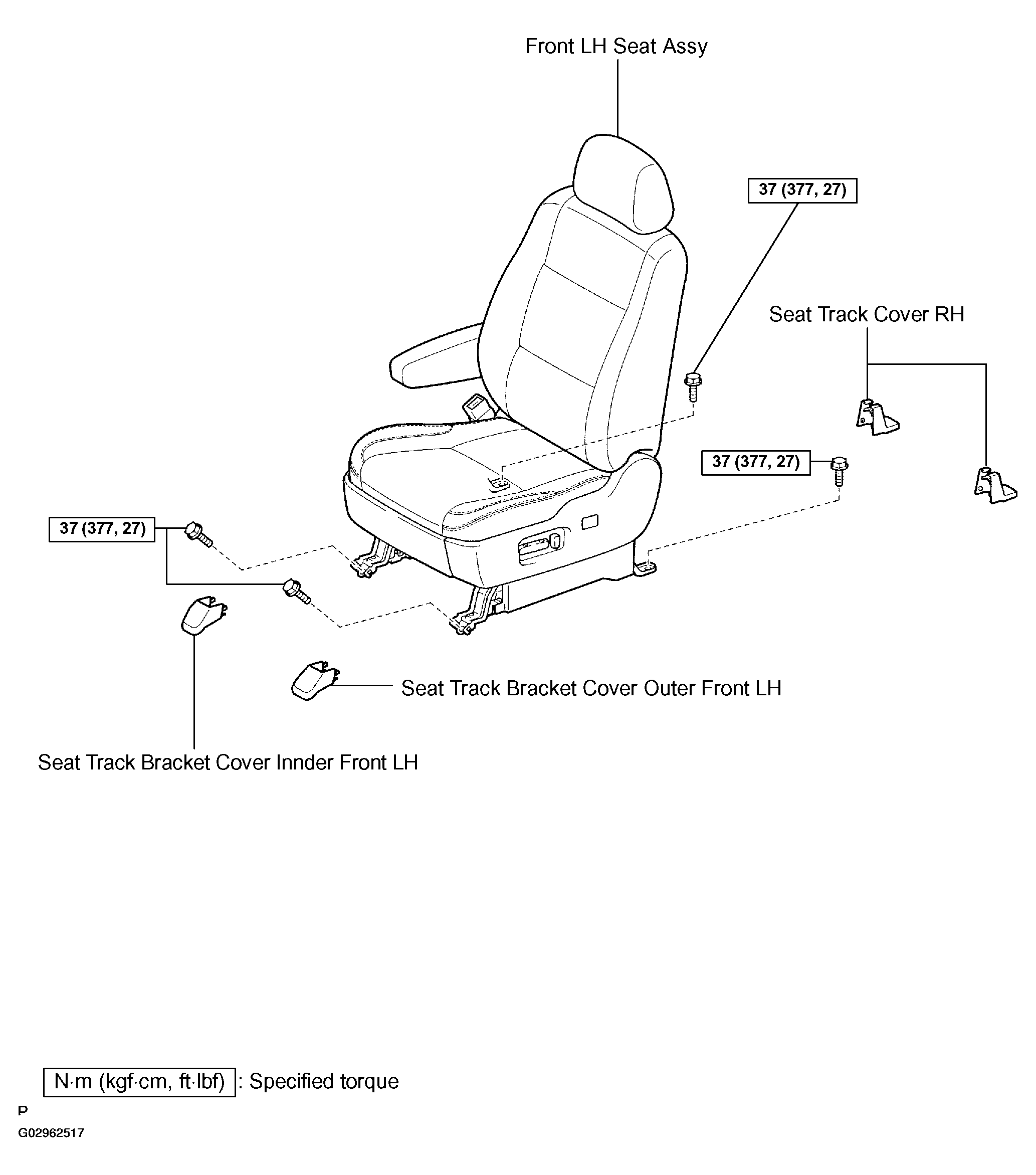

Fig 1: Identifying Front LH Seat Assy Components & Replacements (1 Of 2)
G02962517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

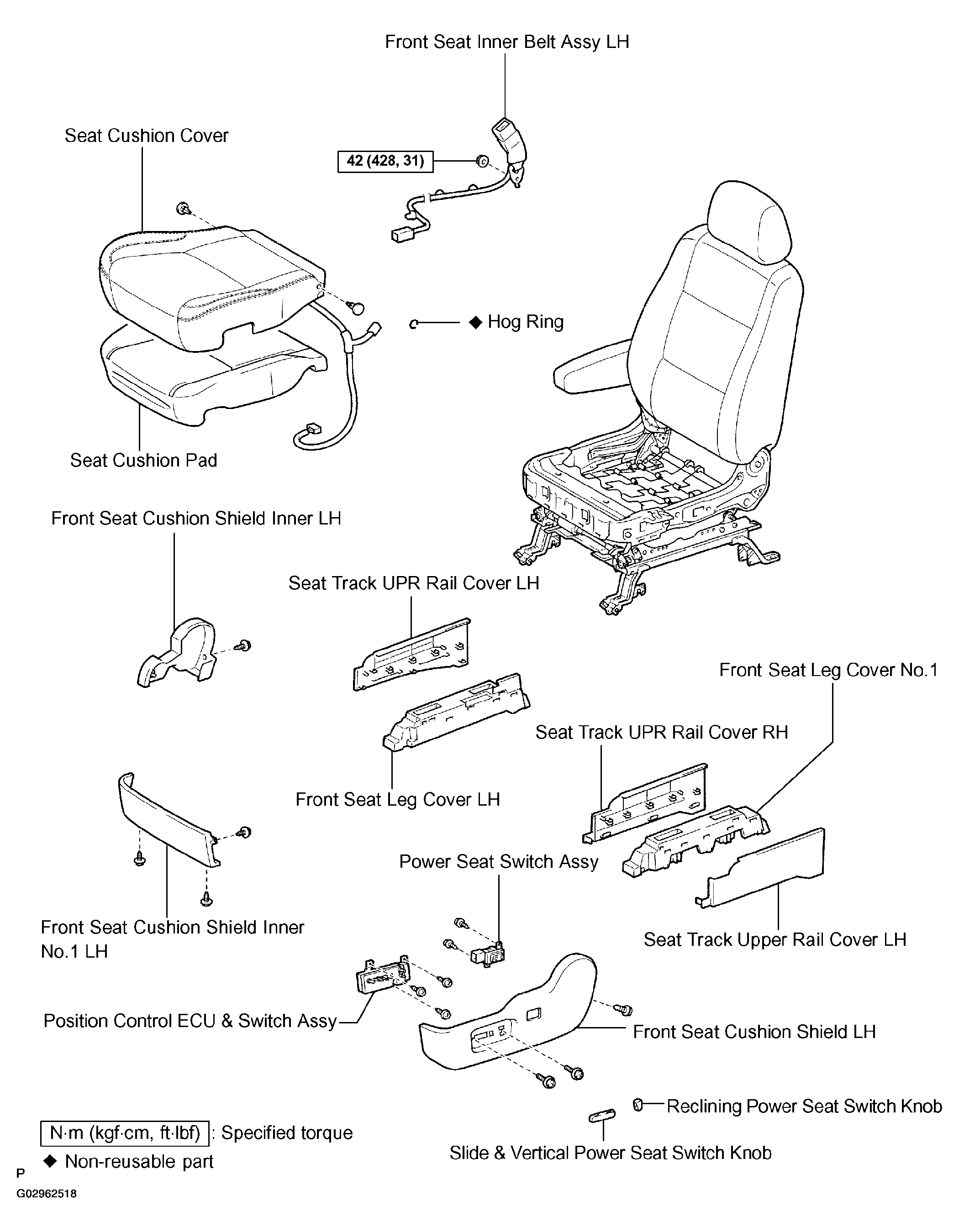

Fig 2: Identifying Front LH Seat Assy Components & Replacements (2 Of 2)
G02962518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

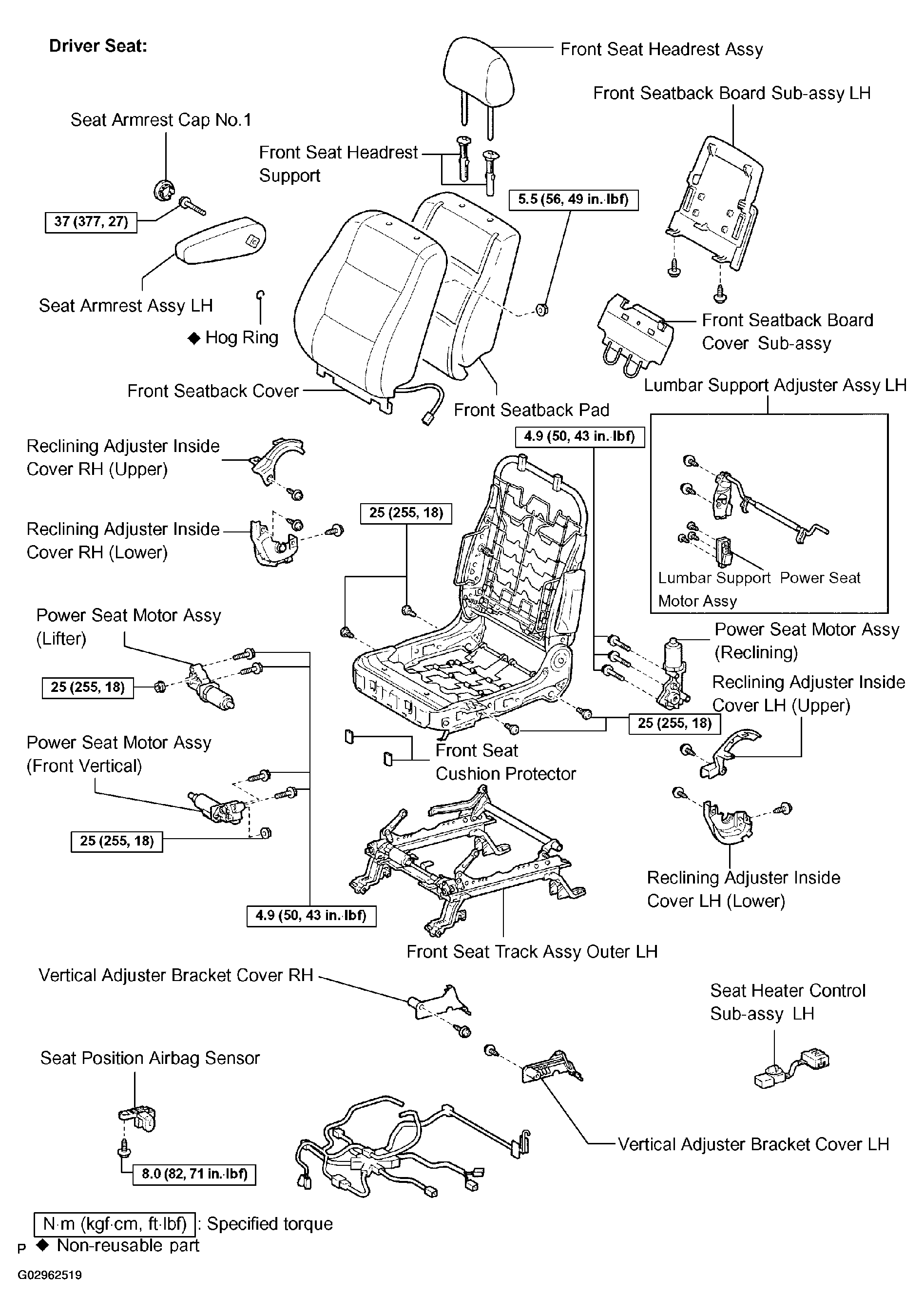

Fig 3: Identifying Front LH Seat Assy Components & Replacements (Driver Seat)
G02962519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

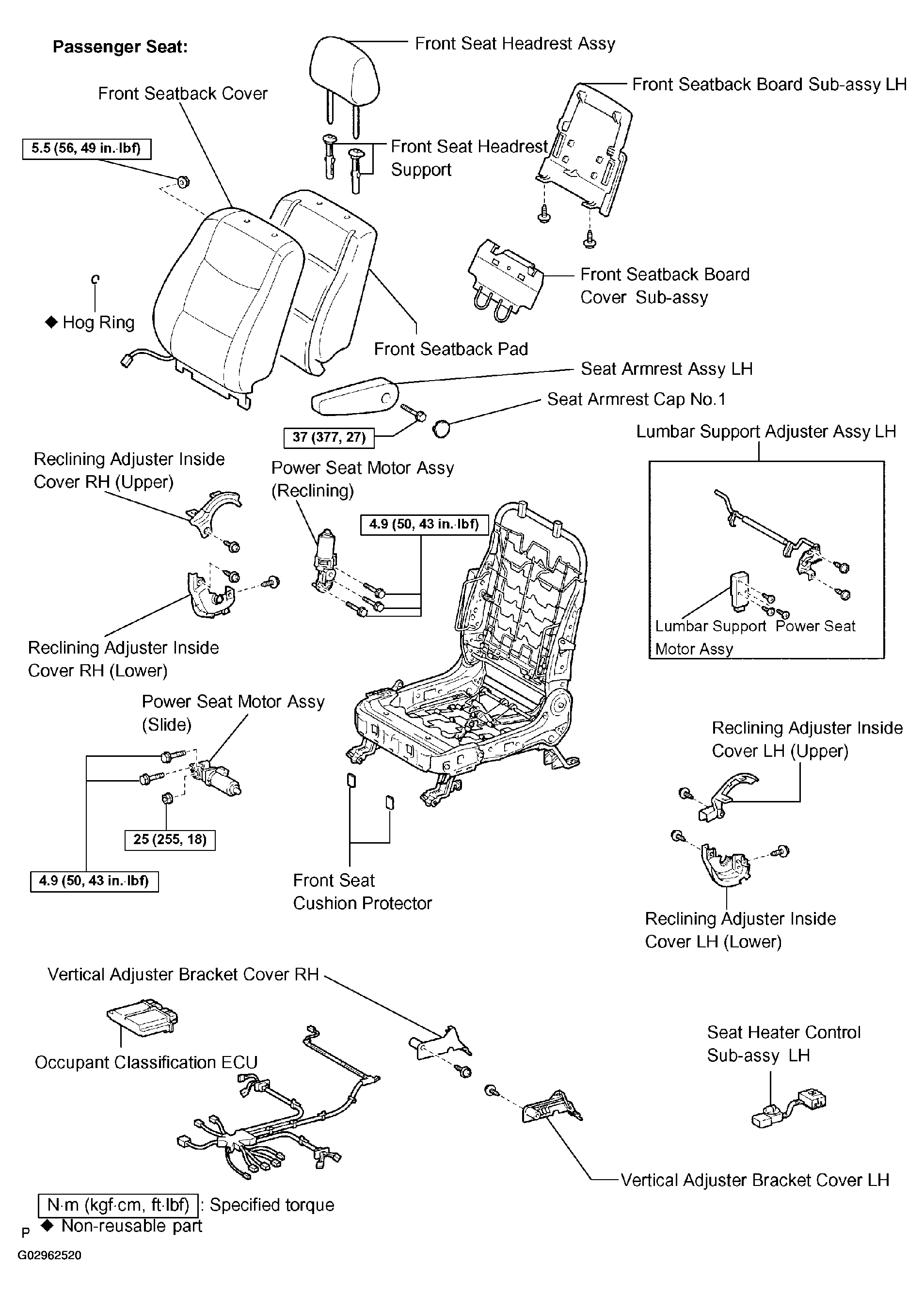

Fig 4: Identifying Front LH Seat Assy Components & Replacements (Passenger Seat)
G02962520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
