Diagnostic Trouble Code Chart
NOTE:
When removing the part, turn the ignition switch OFF.
HINT:
- Using SST 09843-18020, connect the terminals TC and E1 of DLC1 and remove the short pin of DLC1.
- If any abnormality is not found when inspecting parts, inspect the ECU.

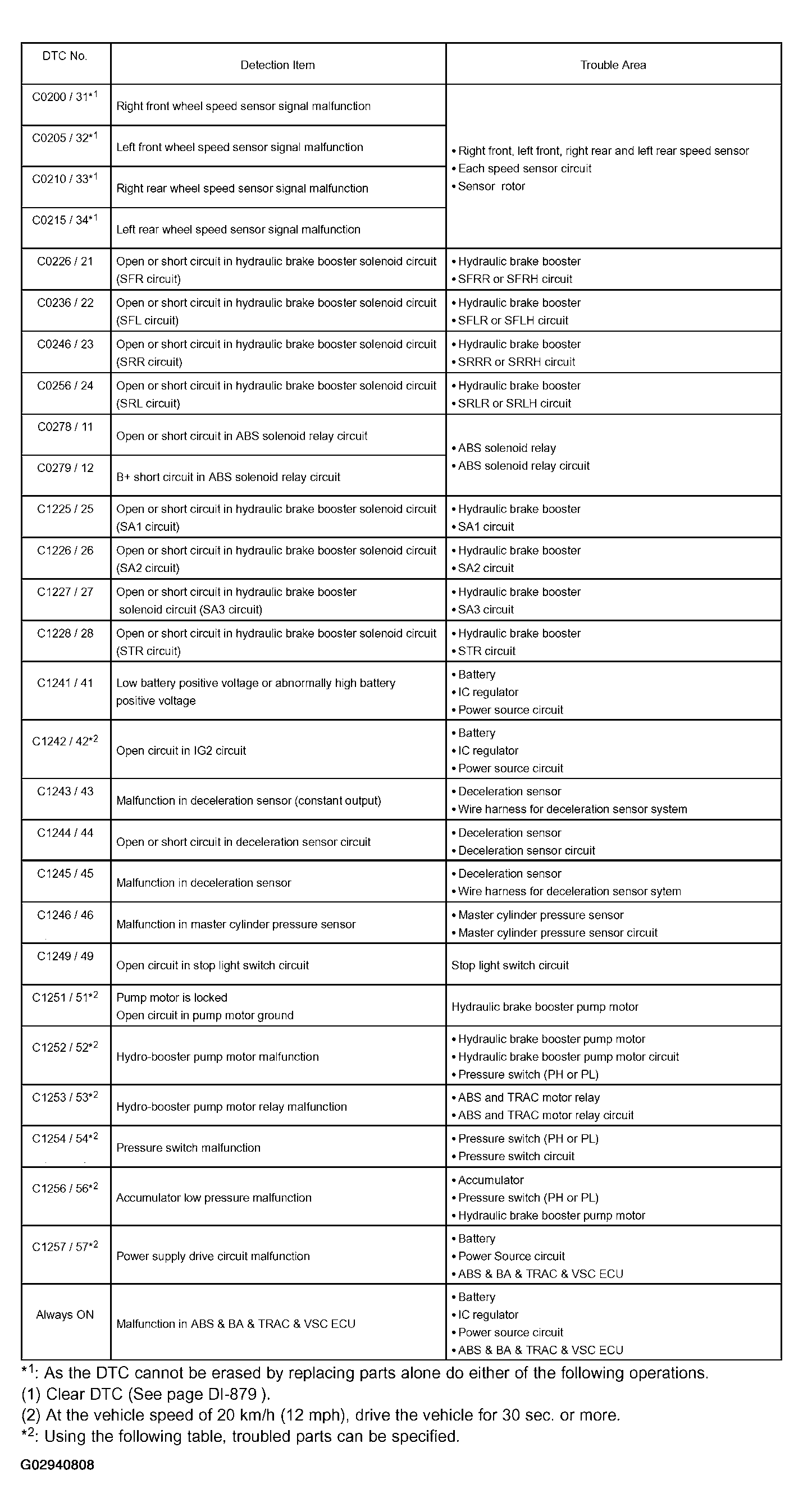

- If a malfunction code is displayed during the DTC check, check the circuit listing that code.DIAGNOSTIC TROUBLE CODE CHART

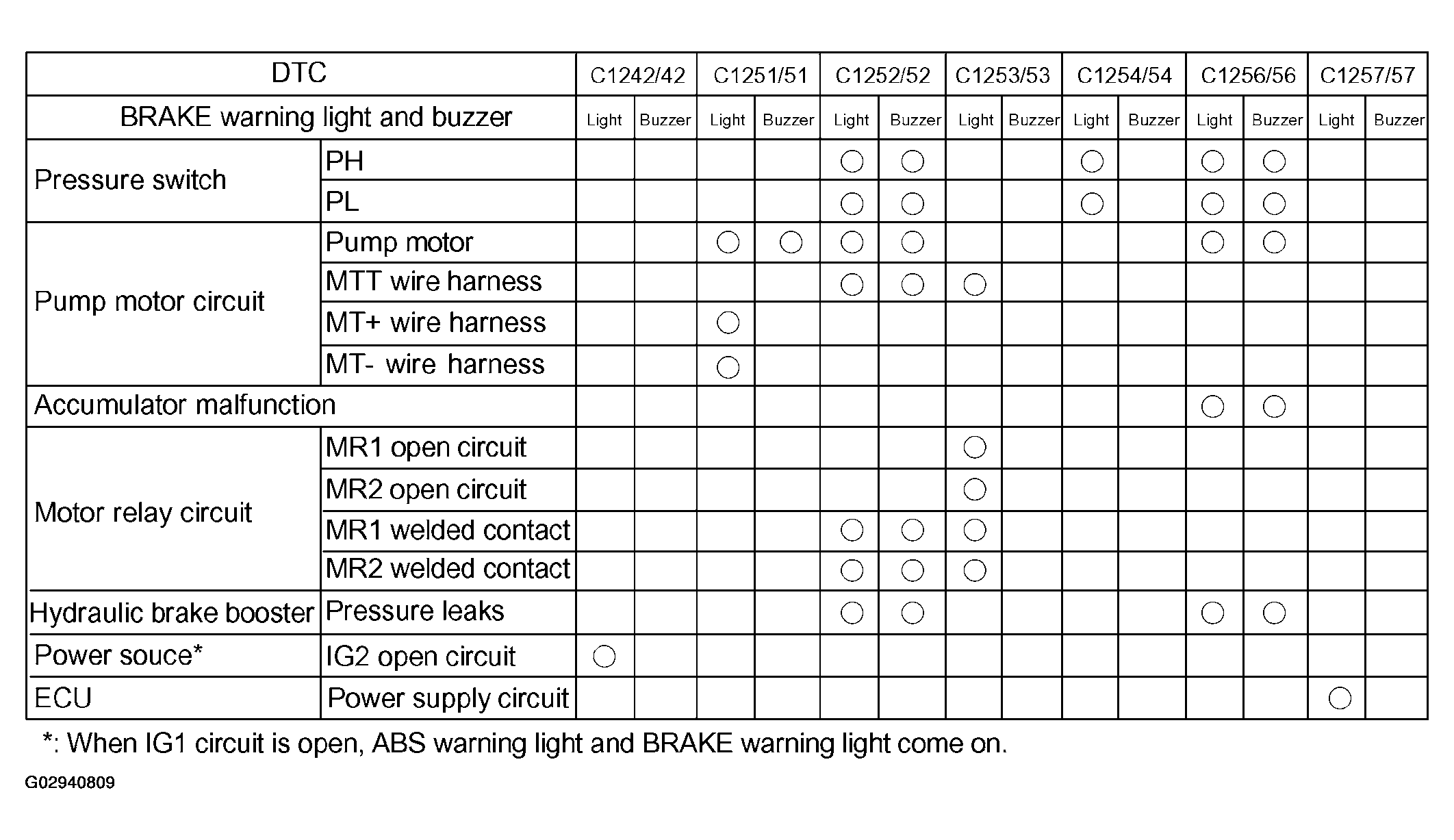

DTC Description DTC C0200/31, C0205/32, C0210/33, C0215/34 Speed Sensor Circuit DTC C0226/21, C0236/22, C0246/23, C0256/24 ABS Solenoid Circuit DTC C0278/11, C0279/12 ABS Solenoid Relay Circuit DTC C1225/25, C1226/26, C1227/27, C1228/28 TRAC & VSC Solenoid Circuit DTC C1241/41 IG Power Source Circuit DTC C1242/42 IG2 Power Source Circuit DTC C1243/43, C1245/45 Malfunction in Deceleration Sensor DTC C1244/44 Deceleration Sensor Circuit DTC C1246/46 Master Cylinder Pressure Sensor Circuit DTC C1249/49 Stop Light Switch Circuit DTC C1251/51 Hydraulic Brake Booster Pump Motor Malfunction DTC C1252/52 Hydraulic brake booster Pump Motor ON Time Abnormally Long DTC C1253/53 Motor Relay Circuit DTC C1254/54 Pressure Switch Circuit DTC C1256/56 Accumulator Low Pressure Malfunction DTC C1257/57 Power Supply Drive Circuit
