Home >> Lexus >> 2005 >> GS 300 >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brakes - Mechanical >> Rear Brake Pad >> Components

Rear Brake Pad: Components

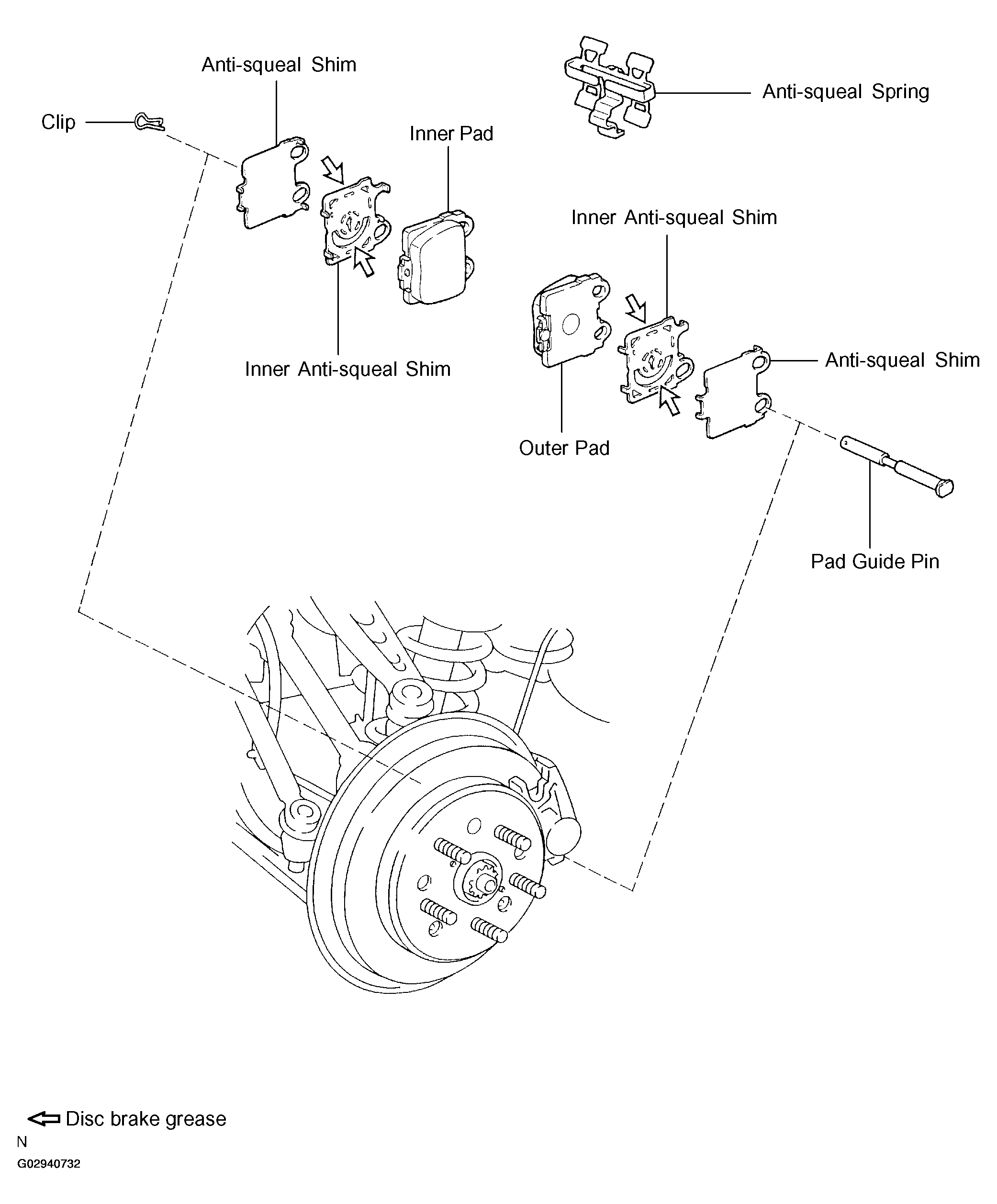

Fig 1: Identifying Rear Brake Pad Components

G02940732

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
