Rear Brake Caliper: Disassembly

REMOVE SET RINGS AND BOOTS
Using a screwdriver, remove the 2 set rings and 2 boots.

Fig 1: Removing Set Rings & Boots
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PISTONS FROM CYLINDER
1. Prepare a wooden plate to hold the pistons.

  Fig 2: Identifying Wooden Plate Dimension
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Place the plate between the pistons and insert a pad on one side.
3. Use compressed air to remove the pistons alternately from the caliper.
  CAUTION: Do not place your fingers in front of the piston when using compressed air.

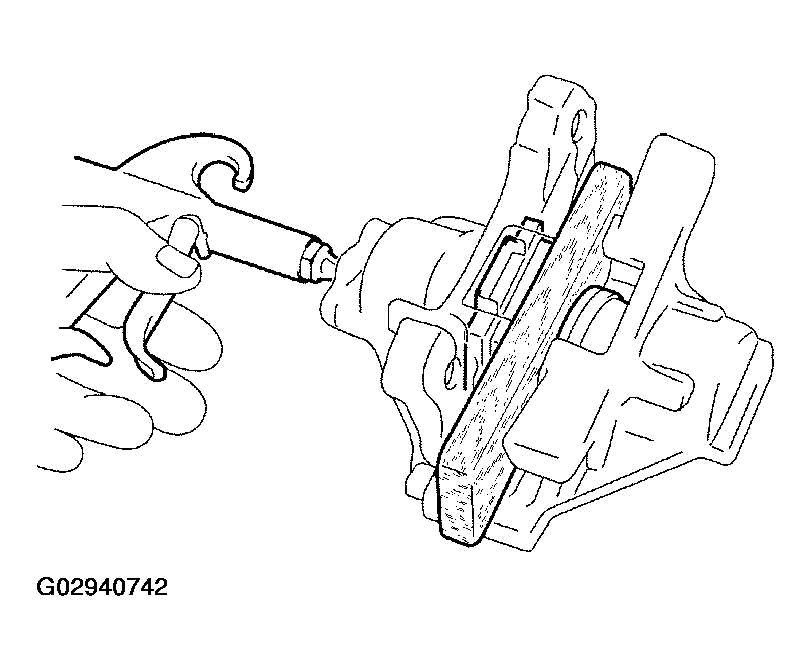

  Fig 3: Removing Pistons Alternately From Caliper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PISTON SEALS
Using a screwdriver, remove the 2 piston seals from the caliper.

Fig 4: Removing Piston Seals From Caliper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
