Rear Brake Caliper: Components

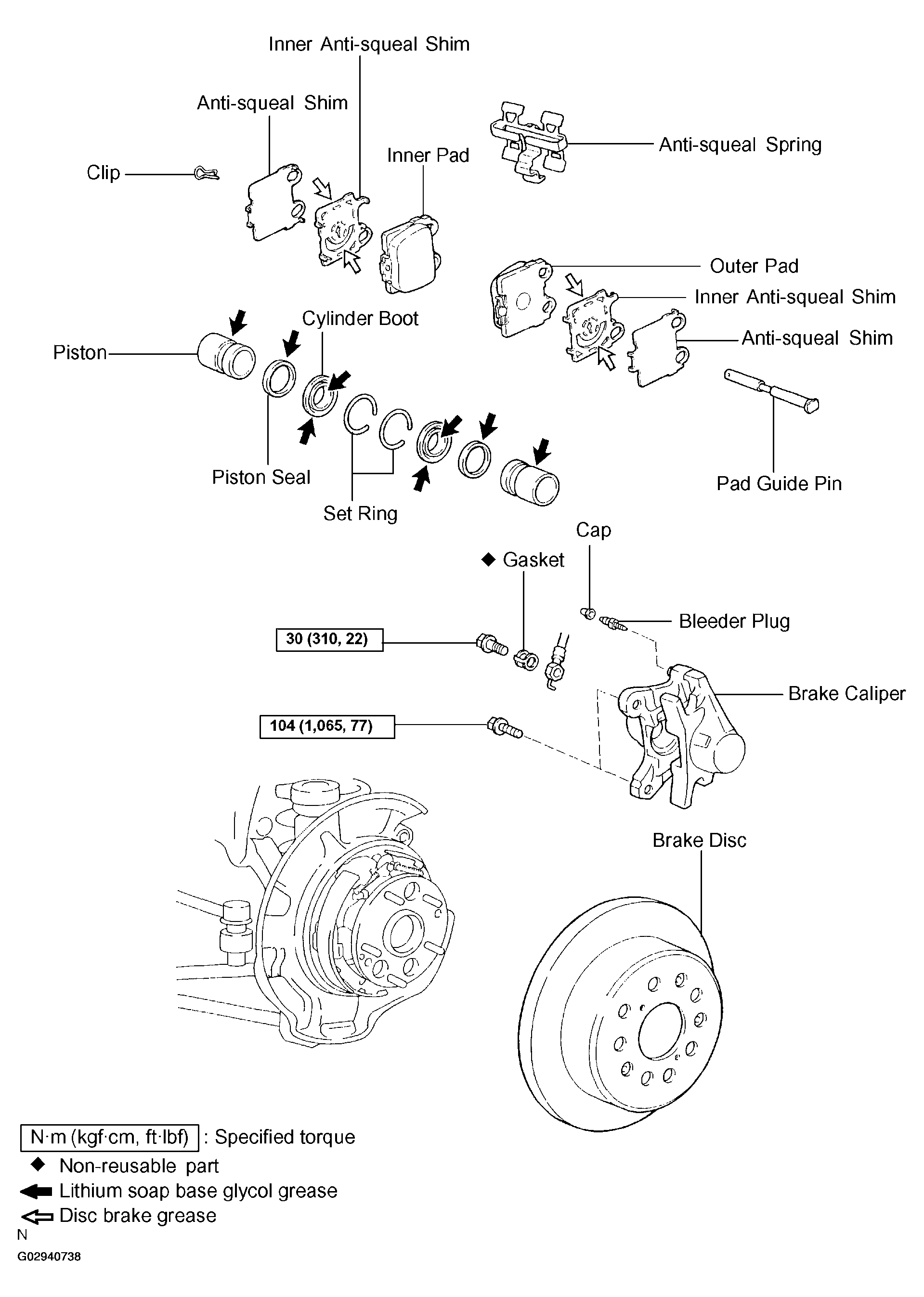

Fig 1: Rear Brake Caliper Replacement Components With Torque Specifications

G02940738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
