Parking Brake: Components

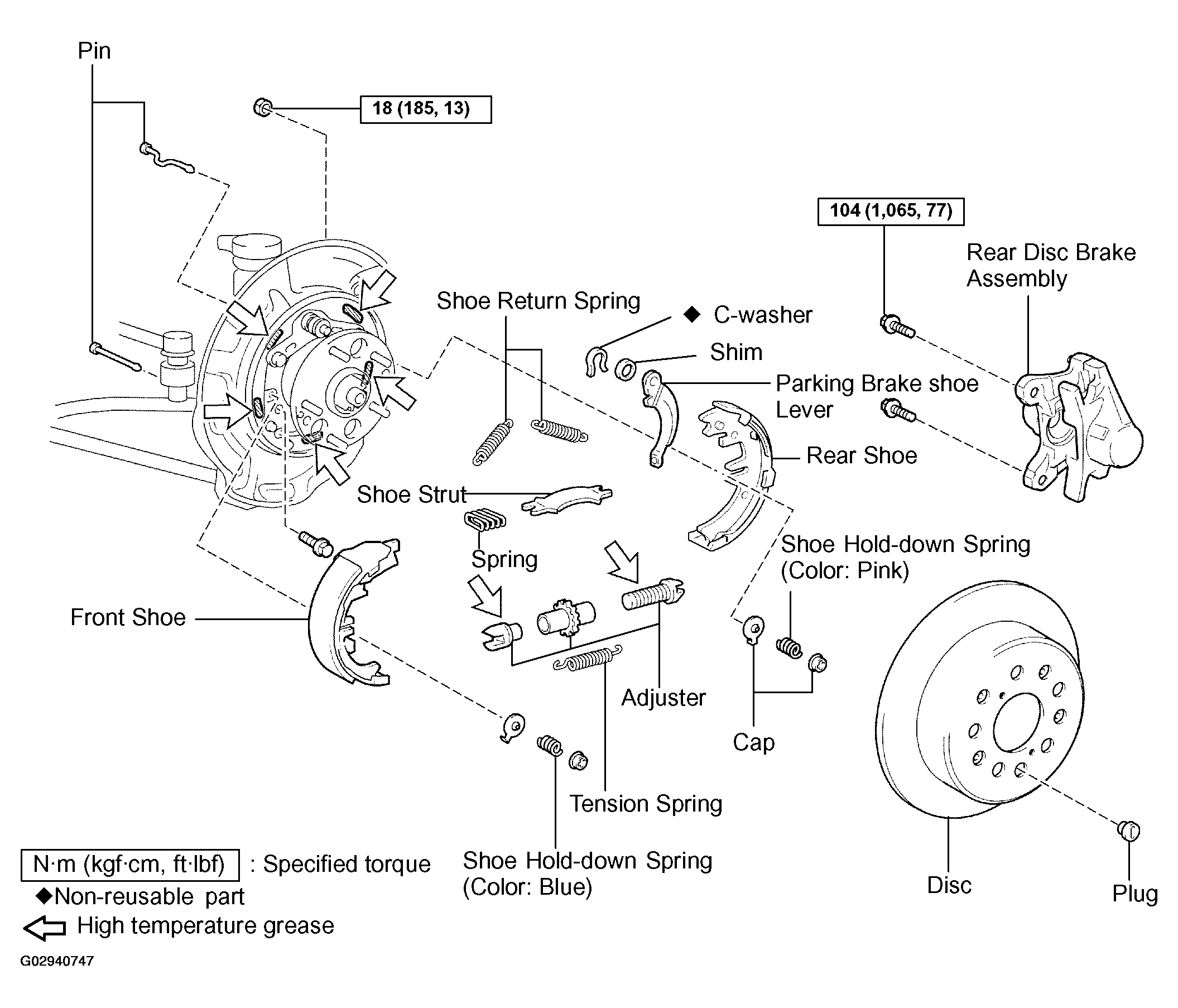

Fig 1: Parking Brake Replacement Components With Torque Specifications

G02940747

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
